Unatural

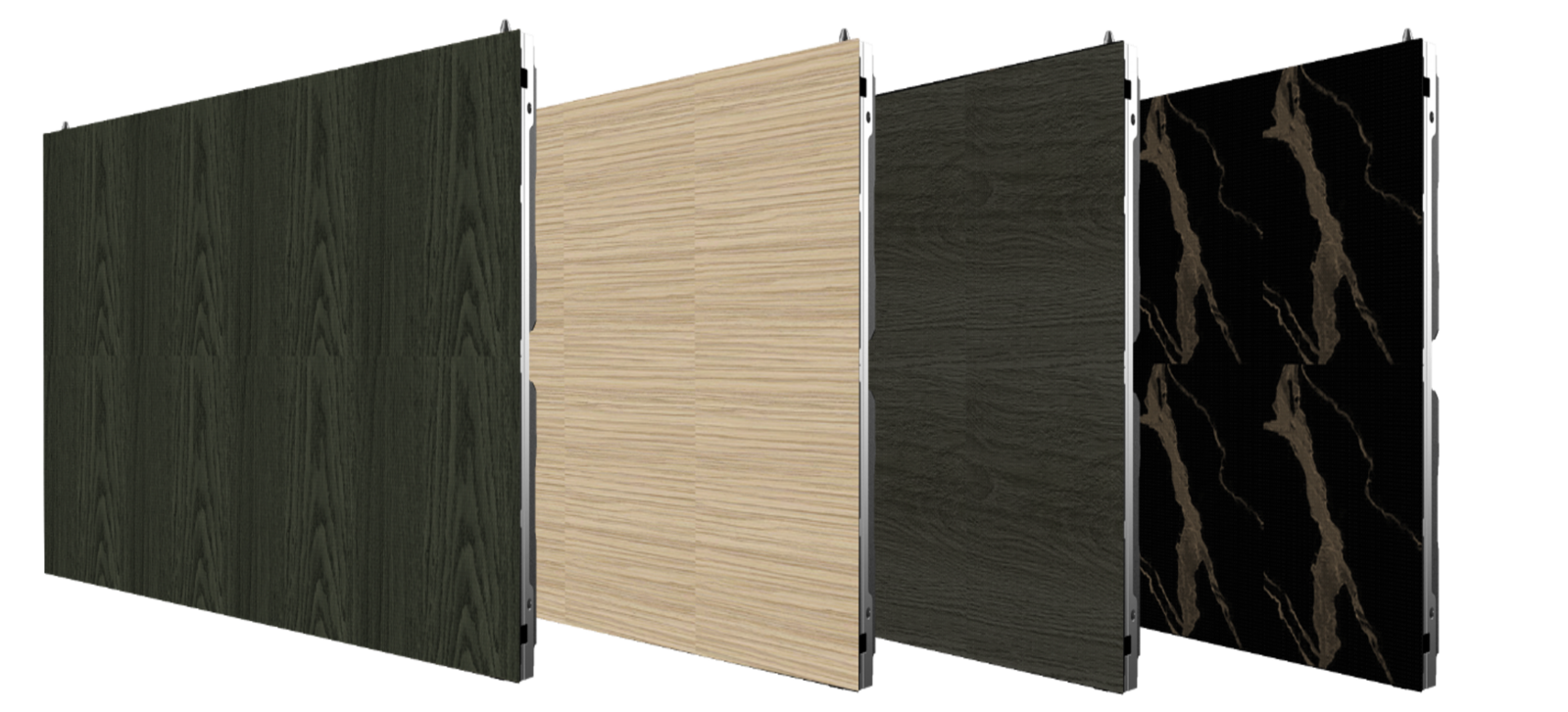

The Unilumin Unatural series is an indoor LED module (COB) with mini-LED and a pixel pitch of up to 0.7 mm, which impresses with its compact design and excellent image quality. This variant with a textured screen impresses with brilliant images, vibrant textures and minimal reflections. The Umini series with texture screen sets new standards for visual experiences.
Pixel Pitch:
0.7mm – 0.9mm – 1.2mm – 1.5mm – 1.8mm

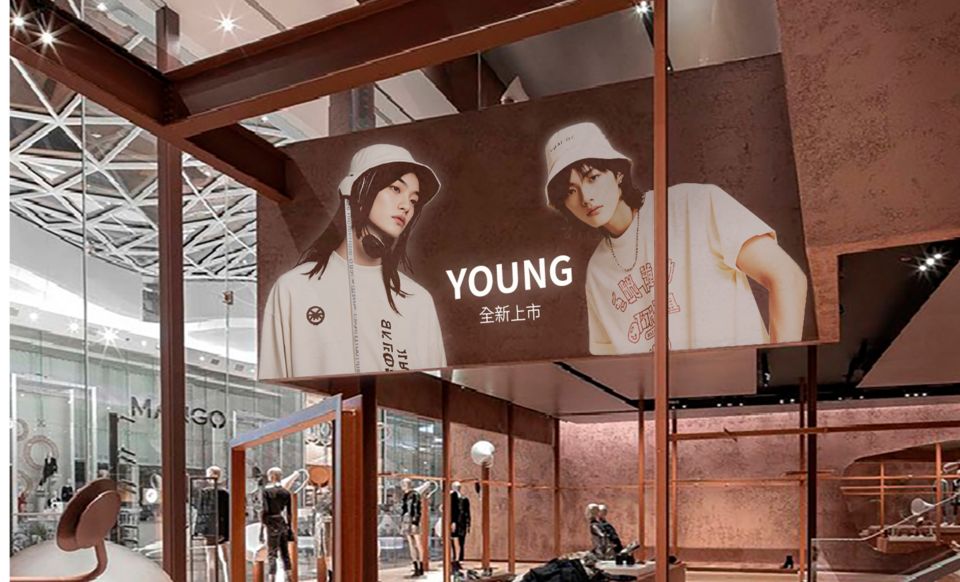

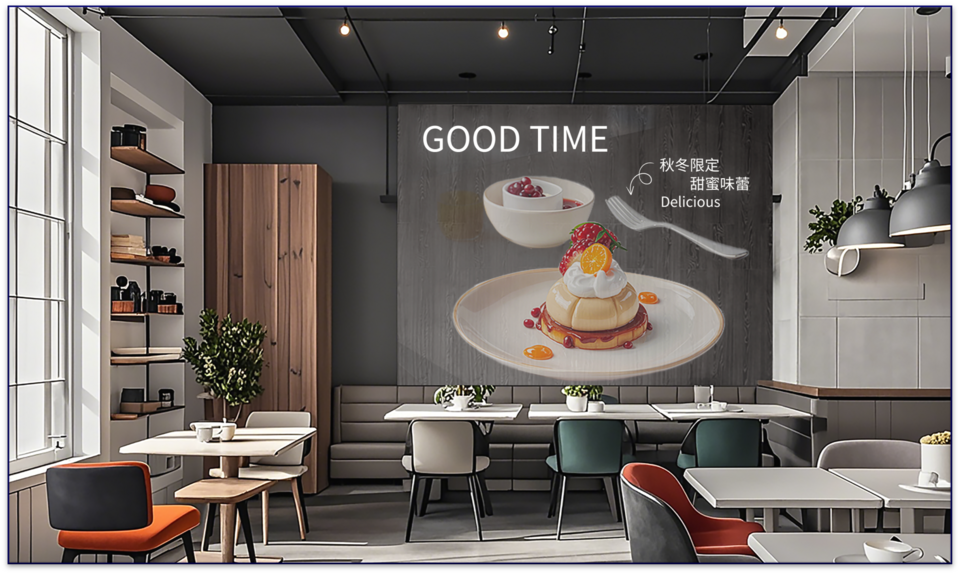

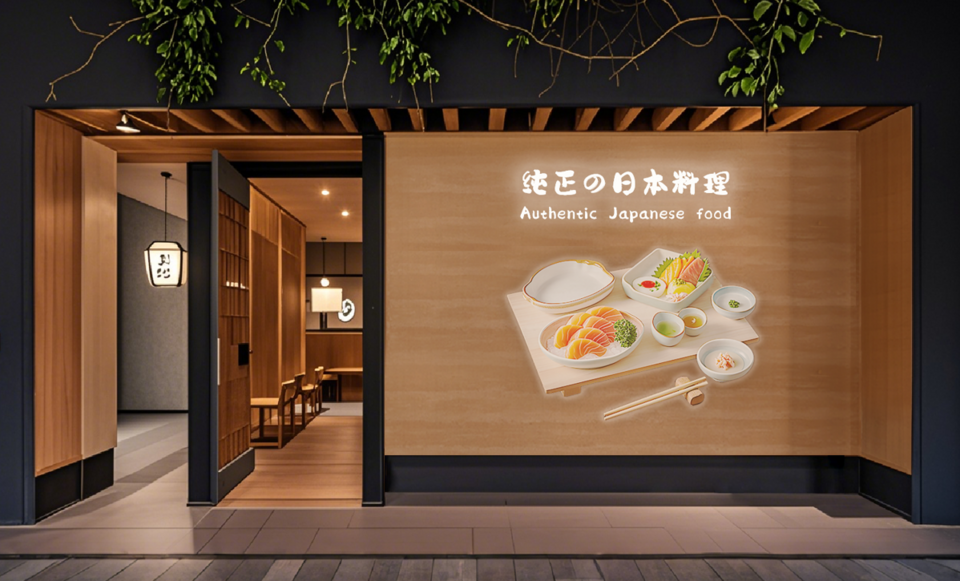

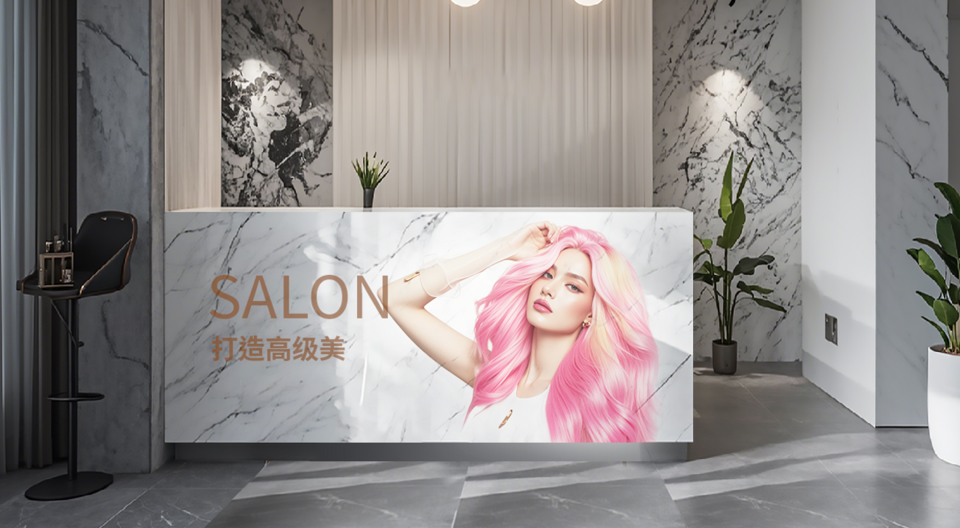

Display off, art on
Brilliant images, vibrant textures, minimal reflections: the Unilumin texture series sets new standards for visual experiences.
High contrast
Thanks to our EBL+ technology and multi-layer optical processing technology, we achieve a contrast of up to 12,000:1 depending on brightness.
Energy saving
Thanks to the latest common cathode technology, our Umini W consumes less energy than conventional products.
Ultra slim and light
The Umini III series is only 29.8 mm thick and weighs only 4 kg/cabinet.
hydrophobic & scratch-resistant screen
The hydrophobic and dust-repellent coating ensures a clean screen as water rolls off and dust is less likely to stick. The high surface hardness of 3H (instead of the usual 2H) makes the screen more scratch-resistant and durable.

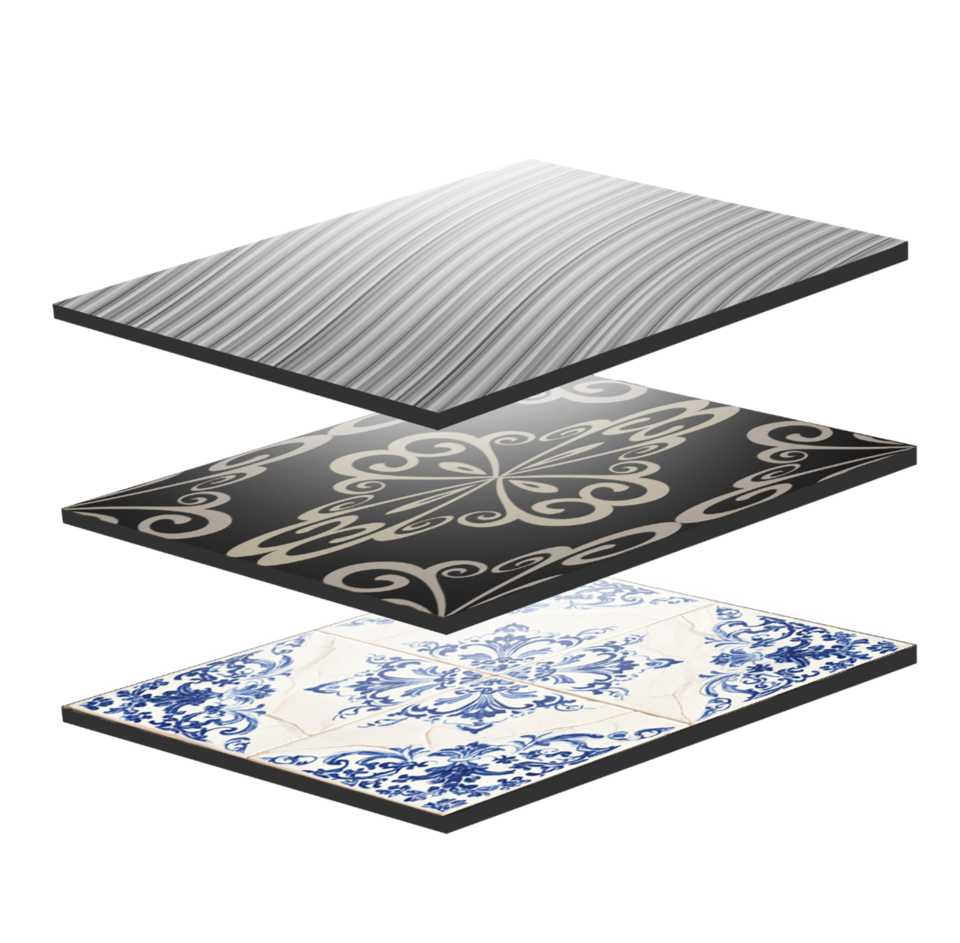

Customizable

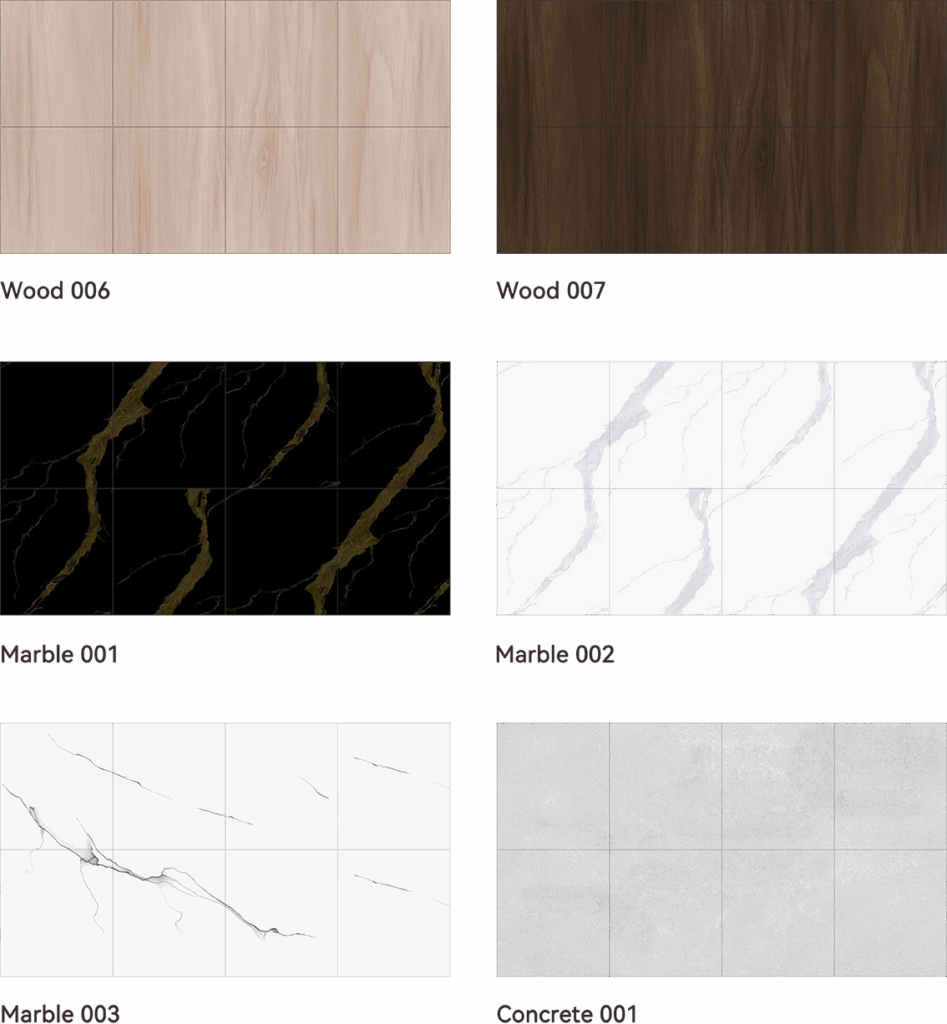

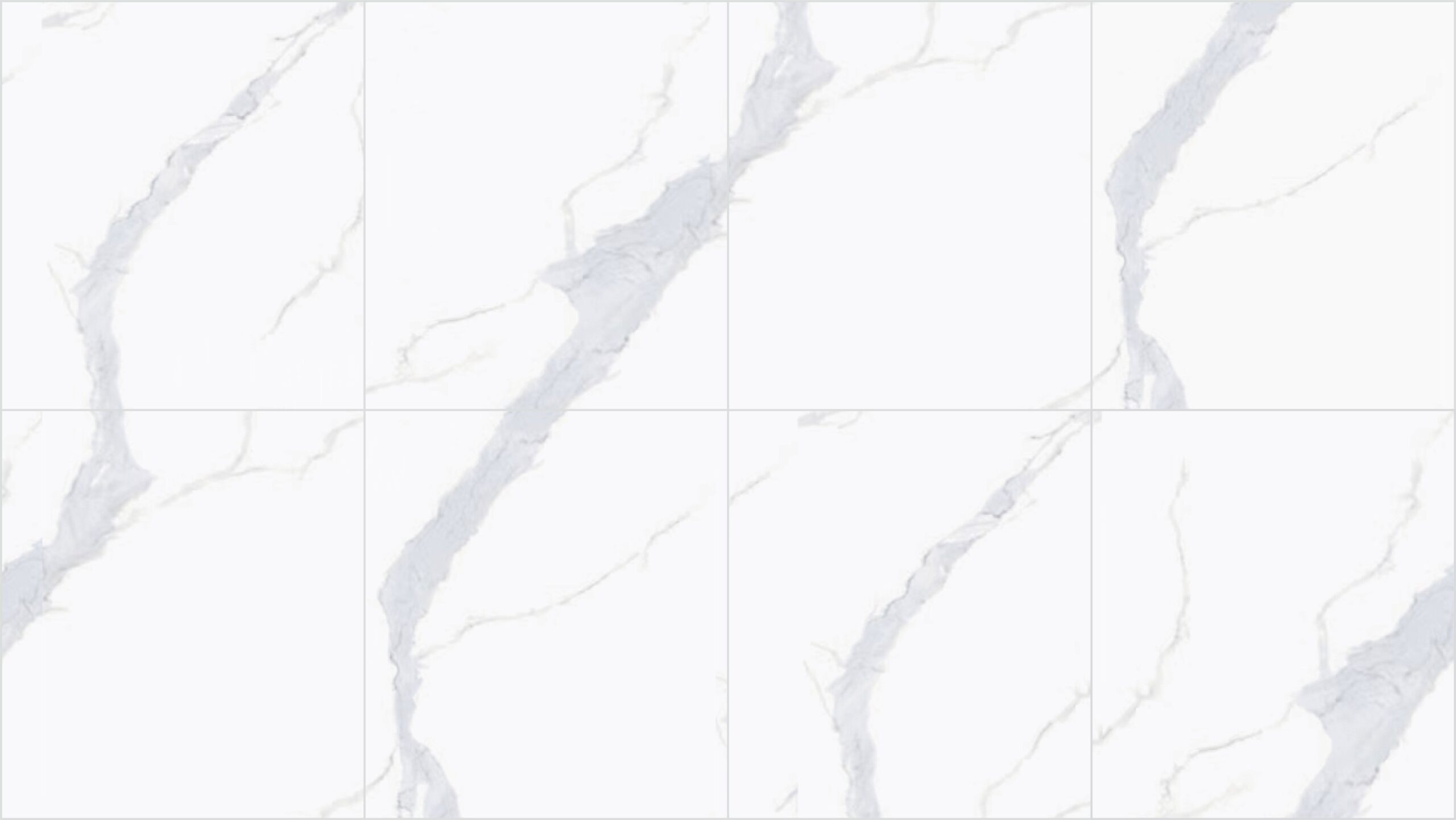

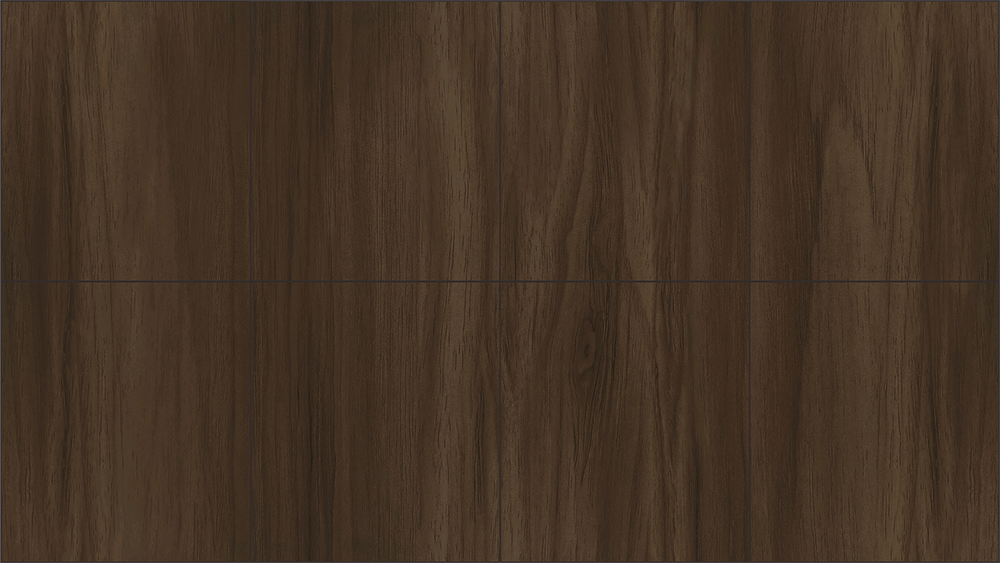

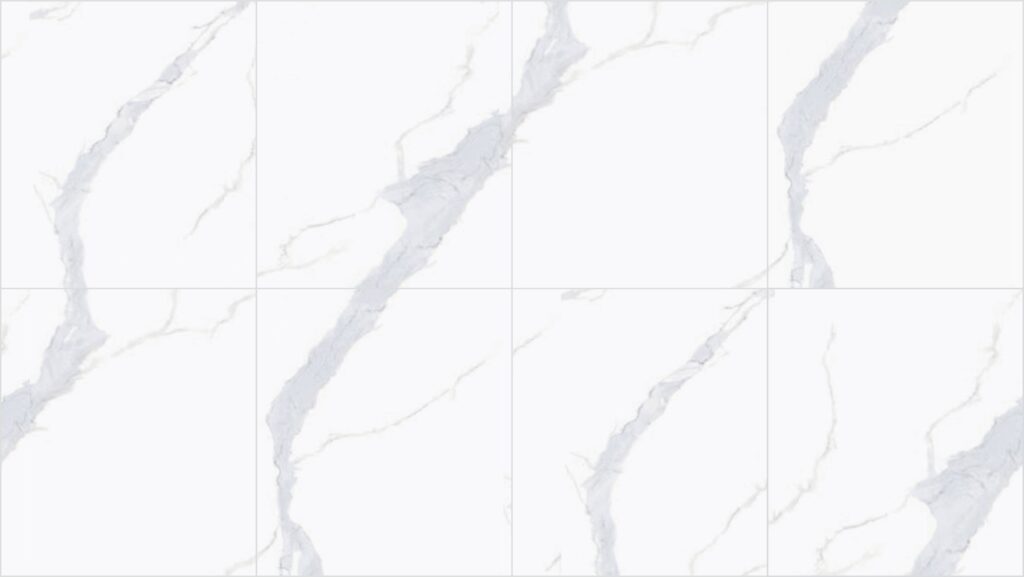

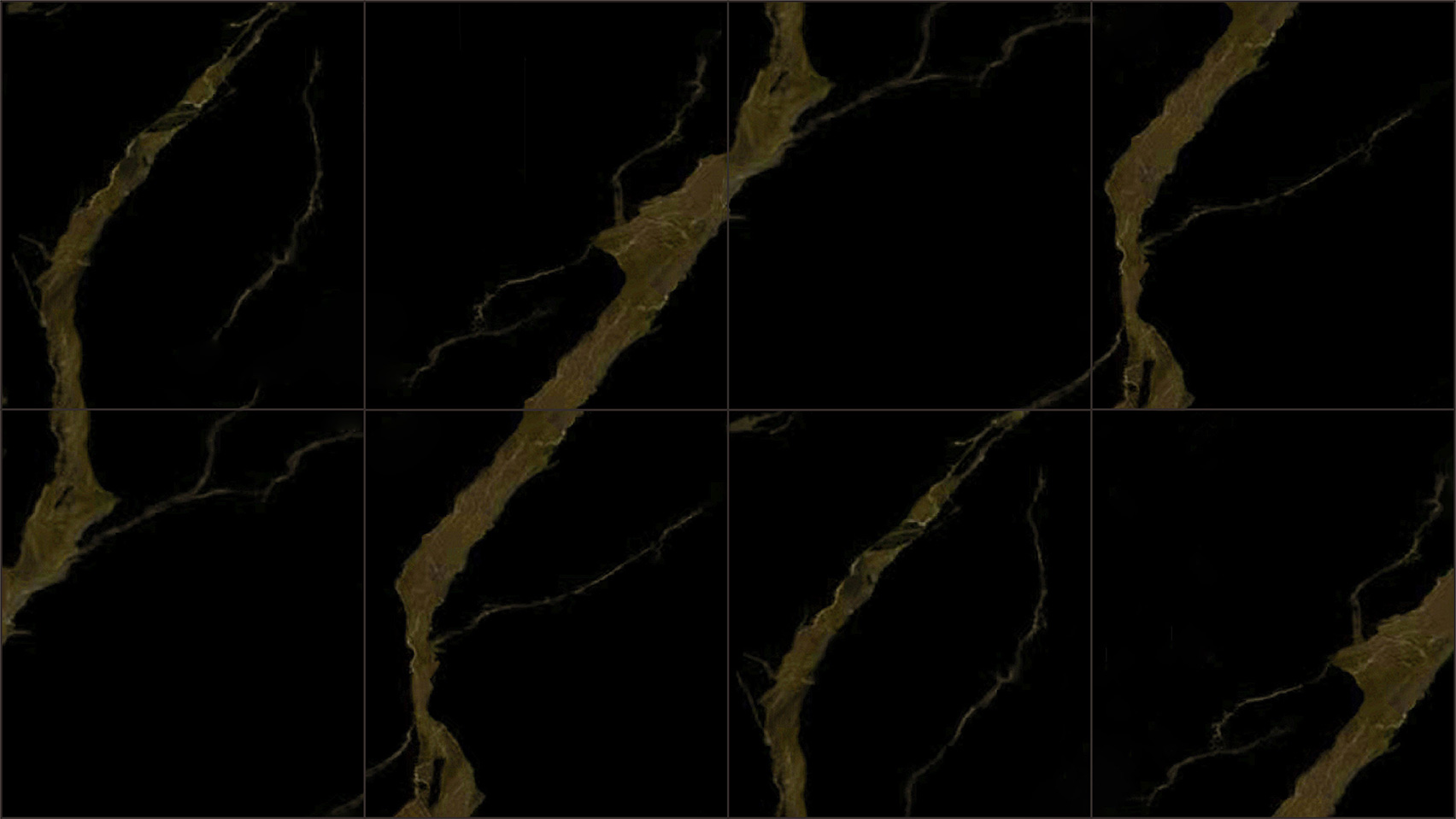

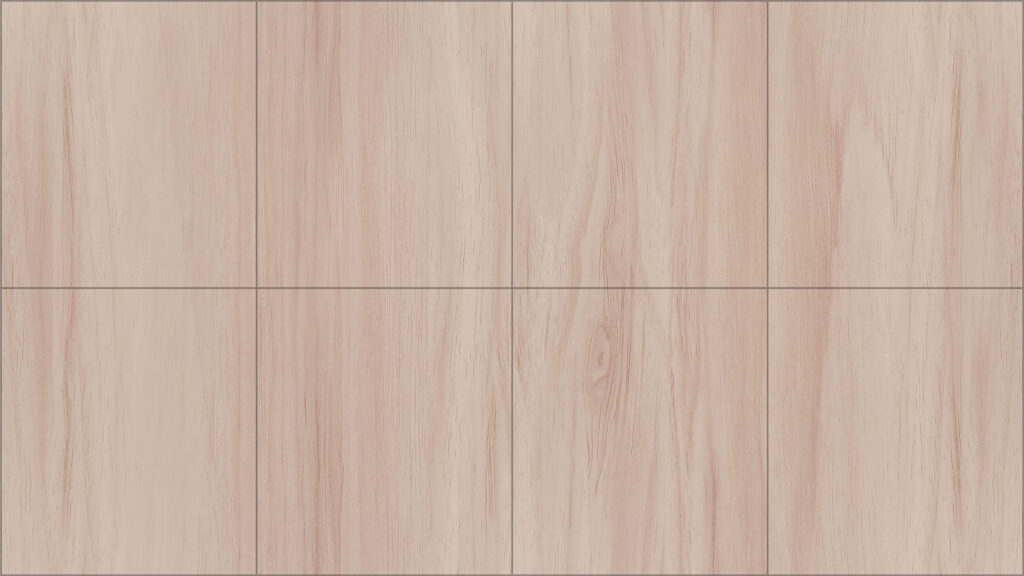

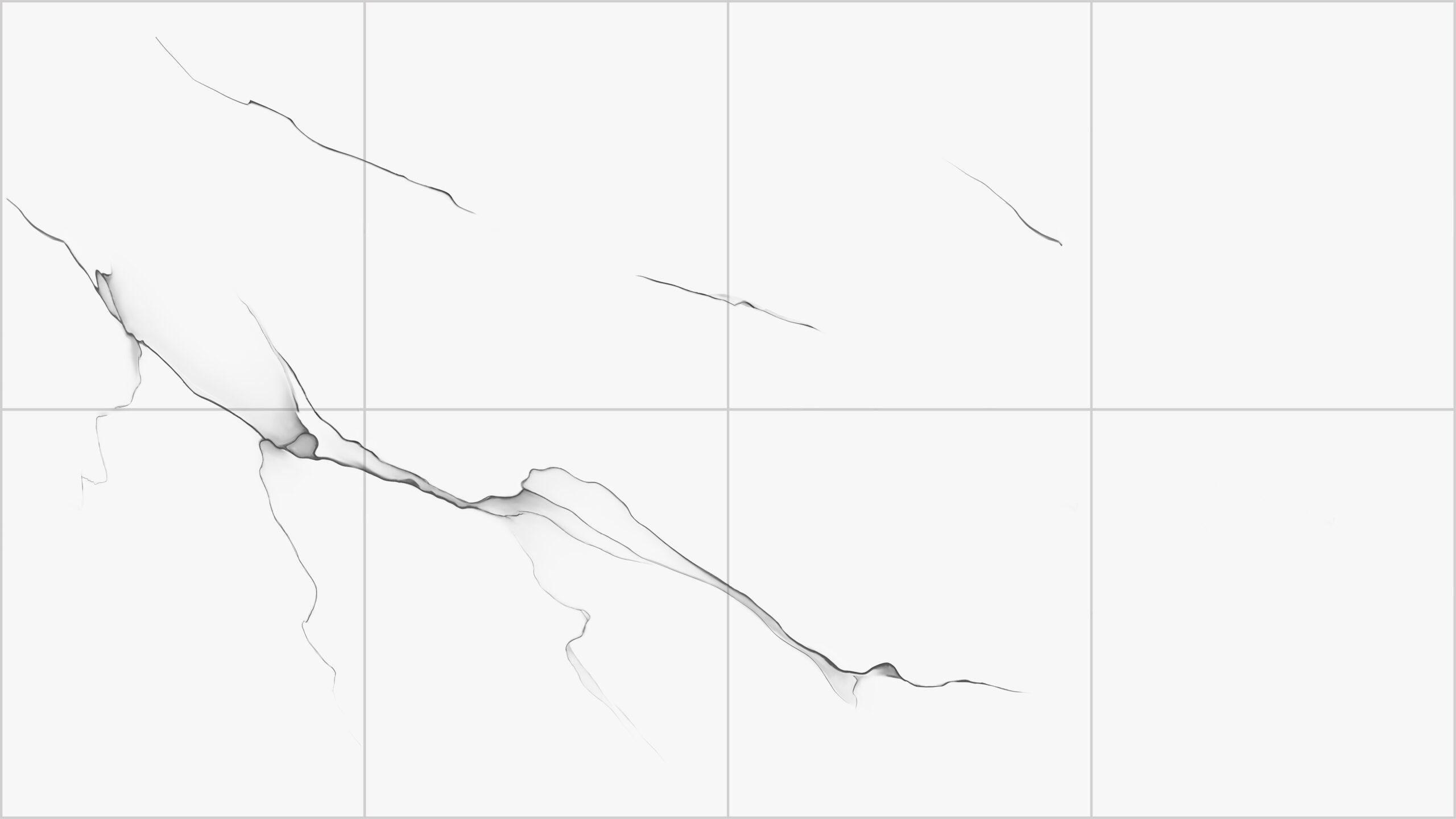

Customizable texture with fixed one-size-fits-all modules.
Textures can be seamless and mimic the natural progression.
Low-emission product
Our products have a positive CO2 footprint certification according to “DIN EN ISO 14064 – Product Carbon Footprint” from TÜV SÜD.
Specifications
| U-Natural 0.7 | U-Natural 0.9 | U-Natural 1.2 | U-Natural 1.5 | U-Natural 1.8 | |
|---|---|---|---|---|---|
| Pixel Pitch | 0.781 mm | 0,78125 mm | 1,5625 mm | 0,9375 mm | 1,875 mm |
| Dimensions | 600 x 337.5 x 29.8 mm | 600 x 337.5 x 29.8 mm | 600 x 337.5 x 29.8 mm | 600 x 337.5 x 29.8 mm | 600 x 337.5 x 29.8 mm |
| Brightness | 400-800 nits depends on specific texture | 400-800 nits depends on specific texture | 400-800 nits depends on specific texture | 400-800 nits depends on specific texture | 400-800 nits depends on specific texture |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Contrast | Depends on specific texture | Depends on specific texture | Depends on specific texture | Depends on specific texture | Depends on specific texture |
| LED type | Mini LED (Common Cathode Flip Chip COB) | Mini LED (Common Cathode Flip Chip COB) | Mini LED (Common Cathode Flip Chip COB) | Mini LED (Common Cathode Flip Chip COB) | Mini LED (Common Cathode Flip Chip COB) |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |
| Service access | Front | Front | Front | Front | Front |
| Video frame rate | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Protection class | Front IP65 (Module) | Front IP65 (Module) | Front IP65 (Module) | Front IP65 (Module) | Front IP65 (Module) |
| Resolution | 768x432 px | 640x360 px | 480x270 px | 384x216 px | 320x180 px |
| Viewing angle horizontal | 160° | 160° | 160° | 160° | 160° |
| Viewing angle virticle | 160° | 160° | 160° | 160° | 160° |
| Weight | 4.3 kg | 4.3 kg | 4.3 kg | 4.3 kg | 4.3 kg |
