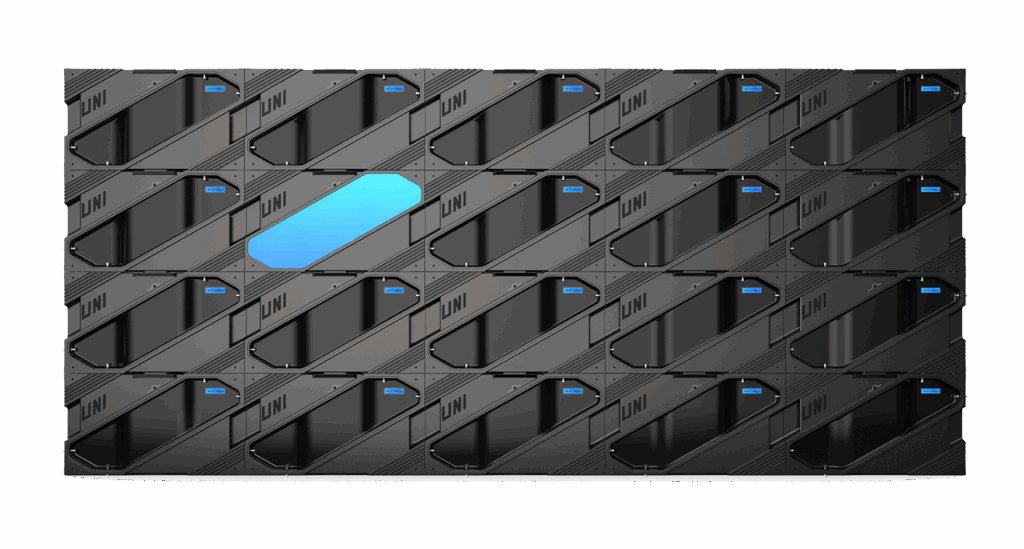

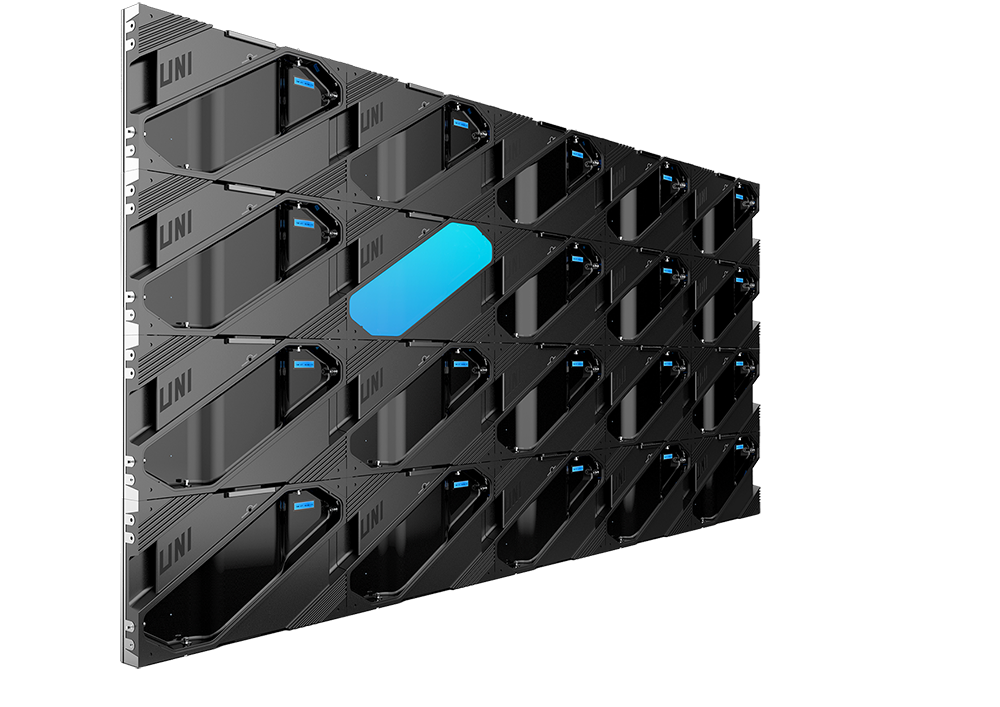

Upanel II MIP
The Upanel II MIP is our high-end indoor LED product that impresses with energy-saving flip-chip technology and premium LEDs. In addition, the IP60 protection offers reliable security and excellent performance.
Pixel Pitch:
0,9 mm – 1,2 mm – 1,5 mm – 1,9 mm – 2,5 mm
Energy saving
Thanks to the innovative common cathode technology, our product is characterized by outstanding power savings.

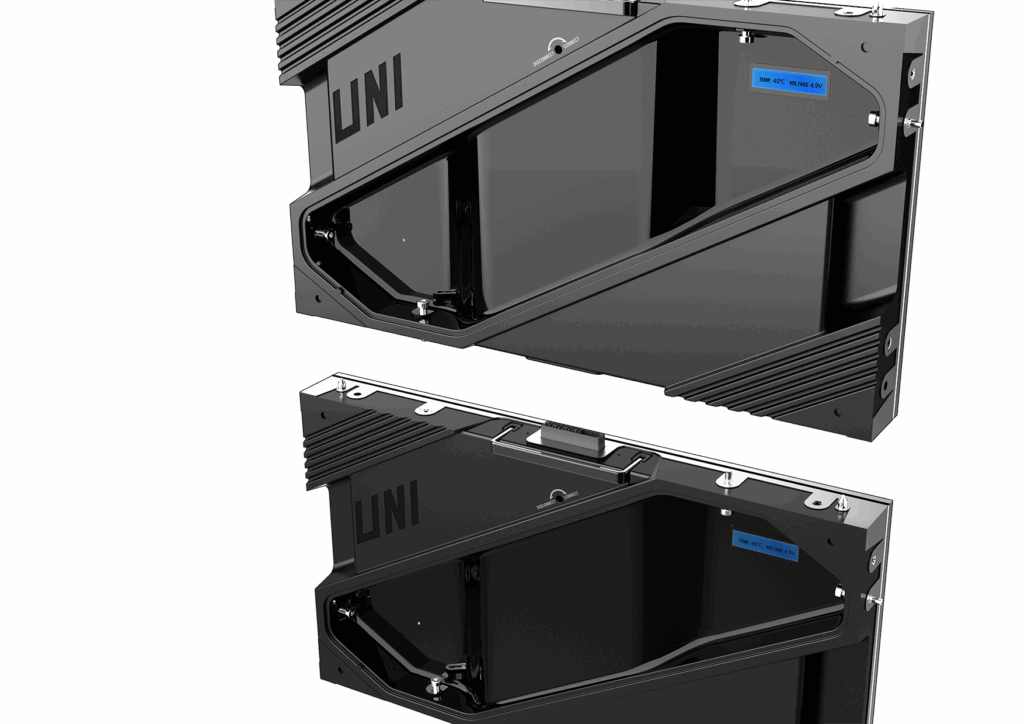

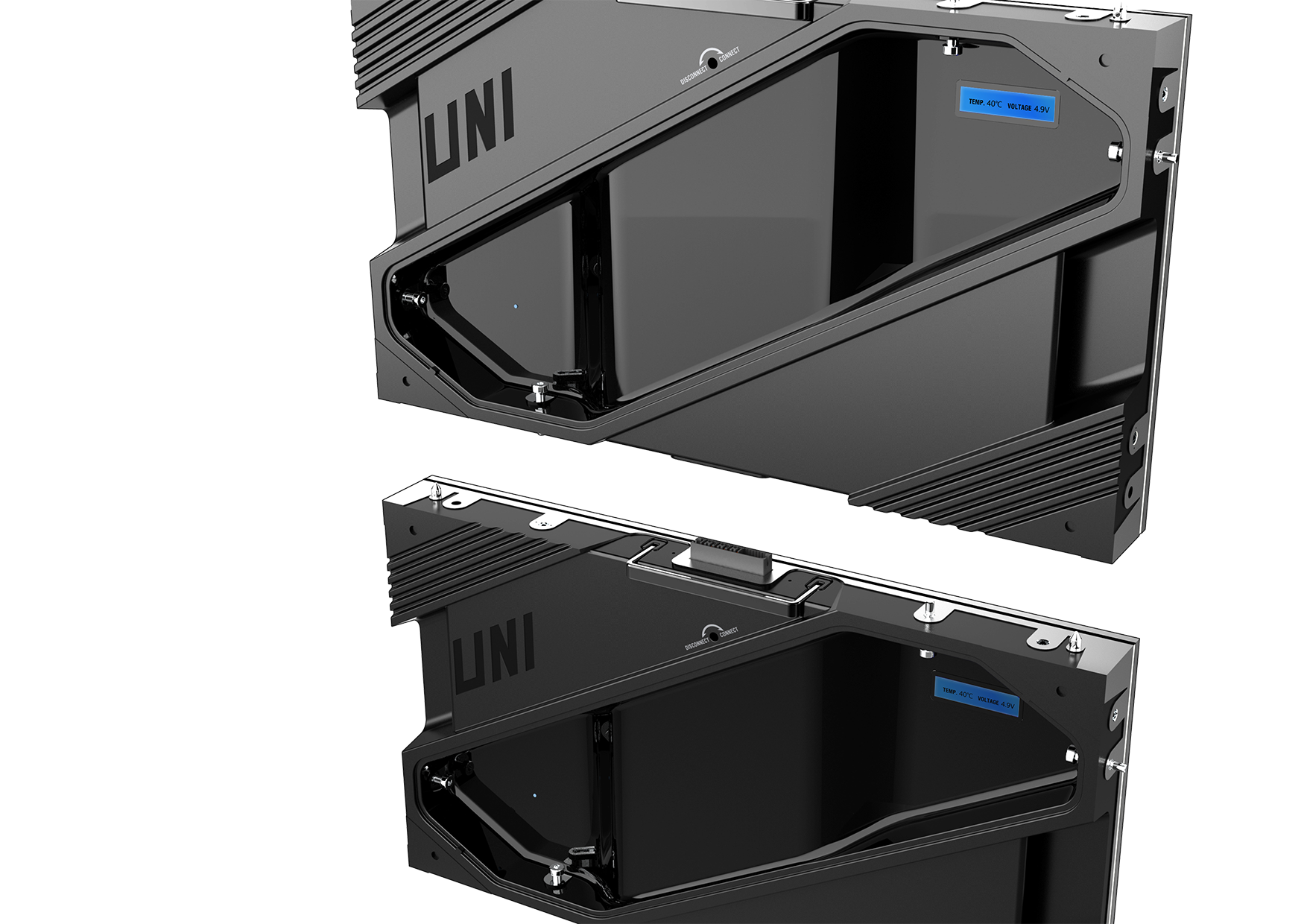

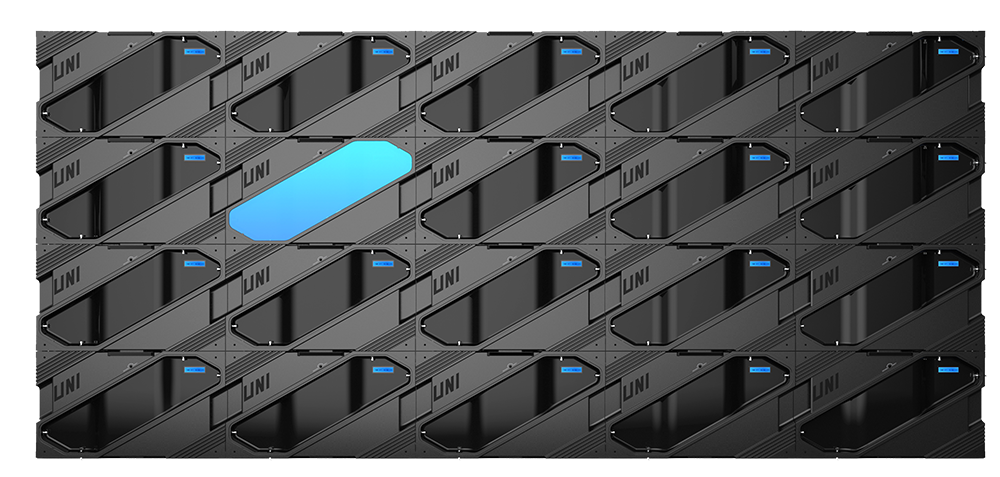

Wireless connection
The wireless connection between units reduces the failure rate and extends the life of the screen.
Easy maintenance

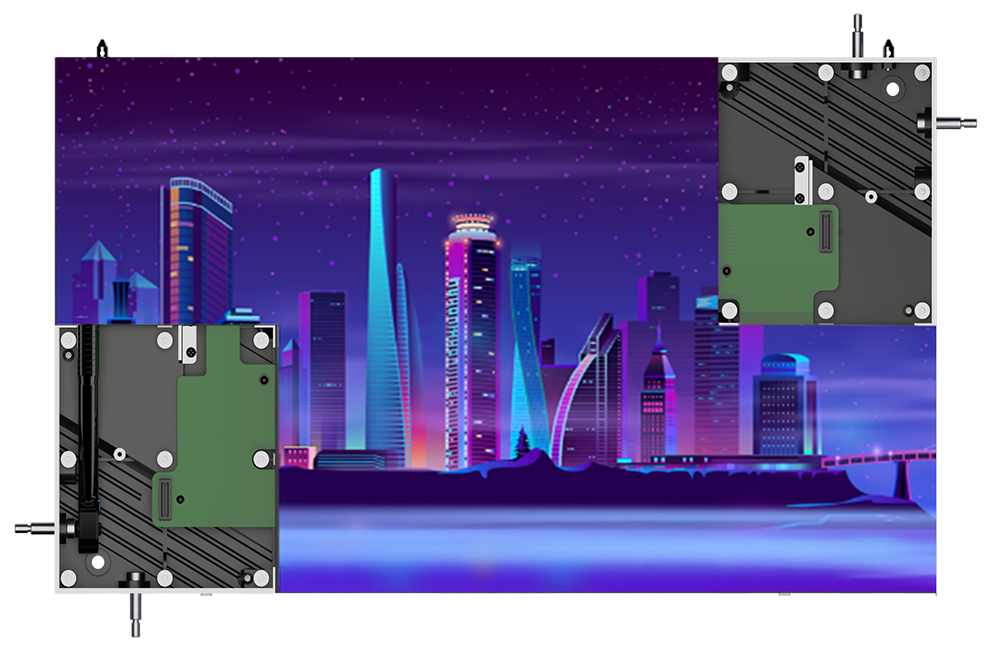

Modules, power supplies and internal cables can be replaced from the front, saving time and maintenance costs.
Protection class IP60

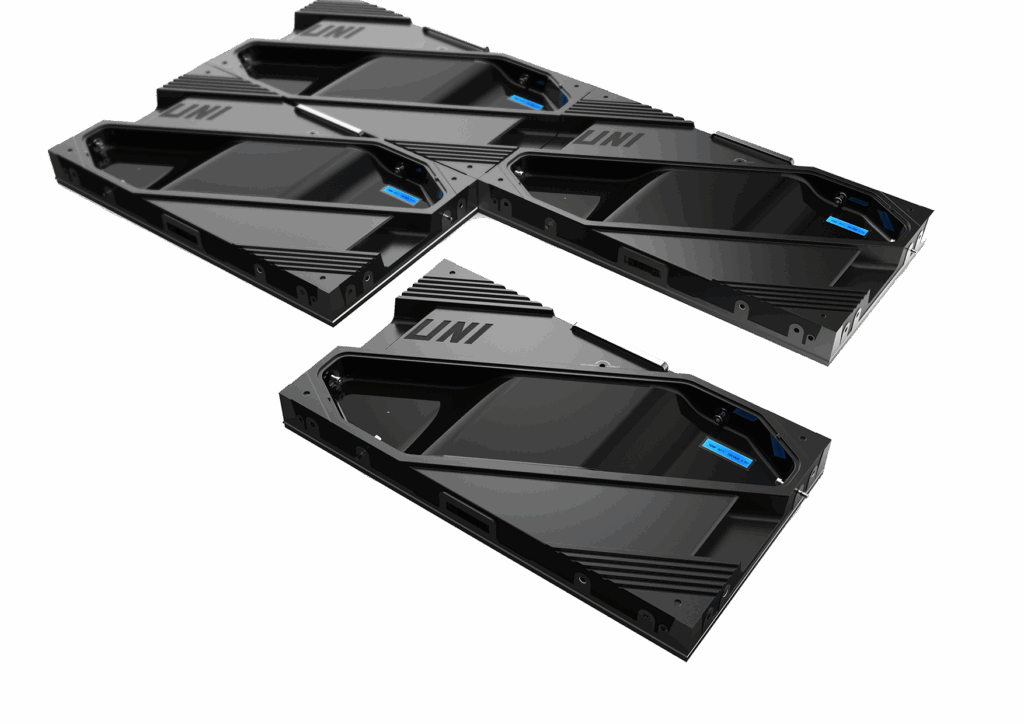

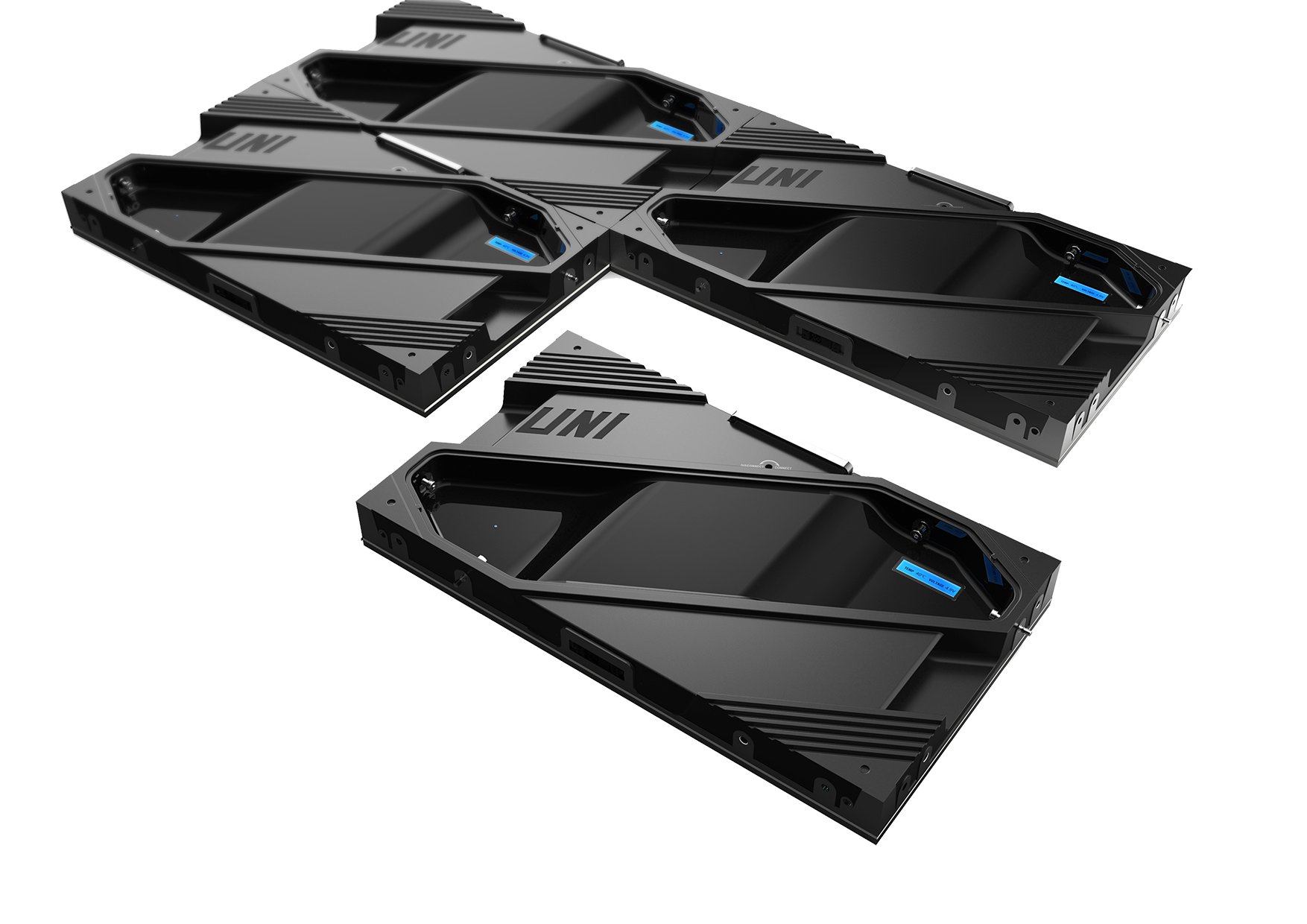

Thanks to their hermetic sealed module structure and new modular design, the Upanel II modules offer effective heat dissipation as well as high protection against dust and moisture in accordance with protection class IP60.
Energy saving
Thanks to the latest common cathode technology, our UTV SC modules consume less energy than conventional products.
Low-emission product
Our products have a positive CO2 footprint certification according to “DIN EN ISO 14064 – Product Carbon Footprint” from TÜV SÜD.
Specifications
| Upanel Ⅱ MIP 0.9 | Upanel Ⅱ MIP 1.2 | Upanel Ⅱ MIP 1.5 | |
|---|---|---|---|
| Pixel Pitch | 0.9375 mm | 1.25mm | 1.56mm |
| Dimensions | 609.92mm×343.08mm×68mm | 609.92mm×343.08mm×68mm | 609.92mm×343.08mm×68mm |
| Brightness | 600 nits / 1,200 nits | 600 nits / 1,200 nits | 600 nits / 1,200 nits |
| Aspect ratio | 16:9 | 16:9 | 16:9 |
| Contrast | 10,000:1 / 20,000:1 | 10,000:1 / 20,000:1 | 10,000:1 / 20,000:1 |
| LED type | MIP | MIP | MIP |
| Refresh rate | 7,680 Hz | 7,680 Hz | 7,680 Hz |
| Service access | Front | Front | Front |
| Video frame rate | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Protection class | IP60 | IP60 | IP60 |
| Resolution | 640x360 px | 480x270 px | 384x216 px |
| Viewing angle horizontal | 170° | 170° | 170° |
| Viewing angle virticle | 165° | 165° | 165° |
| Weight | 7.3 kg | 7.3 kg | 7.3 kg |
