URM III Indoor
The URM III Indoor is our all-rounder, also known as “the workhorse”. The series impresses with its easy handling and high standardization.
Pixel Pitch:
1,9 mm – 2,6 mm – 2,9 mm – 3,9 mm
Standardized cabinet design
One design – all applications. With available pixel pitches from 1.9 to 7.8 mm, the URM III MK2 is ready for everything, from general meetings to festivals. Whether indoors or outdoors – the product design remains the same.
Pinch ‘n’ Go
Thanks to the innovative IM concept, less stress is placed on plug connections.

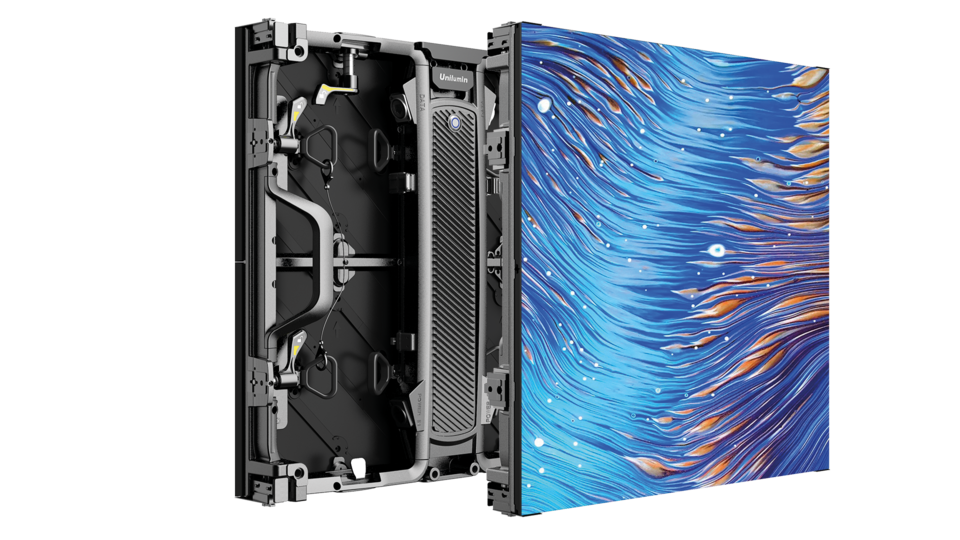

Easy maintenance
No more annoying search for tools. Both the power box and the modules can be replaced completely without tools. This applies to indoor and outdoor cabinets as well as touring frames and stacking systems.
Extensive accessories
From the touring dolly and backframe support to user statics and user-friendly flight cases. We deliver the complete package for events.

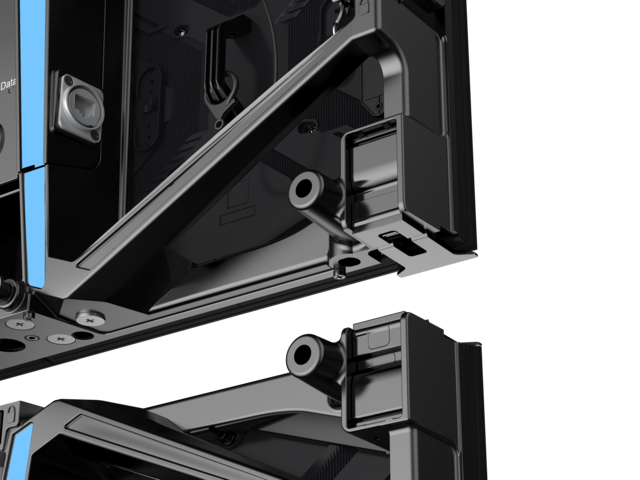

Edge protection
The automatic edge protection can prevent damage caused, for example, by carelessly placing the cabinet down – for a long-lasting LED wall and ensures continuous added value.
Low-emission product
Our products have a positive CO2 footprint certification according to “DIN EN ISO 14064 – Product Carbon Footprint” from TÜV SÜD.
Specifications
| Udesign SV3.9 | Udesign SV6.25 | |
|---|---|---|
| Pixel Pitch | 3.9mm | 6.25 mm |
| Dimensions | 250x1000/250x1172/250x1469mm | 250x1000/250x1175/250x1475mm |
| Brightness | 2,000/2,500 nits (Black lamp) 3,000/4,500 nits (White lamp) | 4,500/5,000 nits |
| Aspect ratio | Depend on cabinet | Depend on cabinet |
| LED type | SMD Integrated LED & IC | SMD Integrated LED & IC |
| Refresh rate | 3,840Hz | 3,840Hz |
| Service access | Front | Front |
| Video frame rate | 60~120 Hz | 60~120 Hz |
| Protection class | IP20 | IP20 |
| Resolution | 64x256/64x300/64x376 px | 40x160/40x188/40x236 px |
| Weight | 6kg/m2 | 6kg/m2 |
