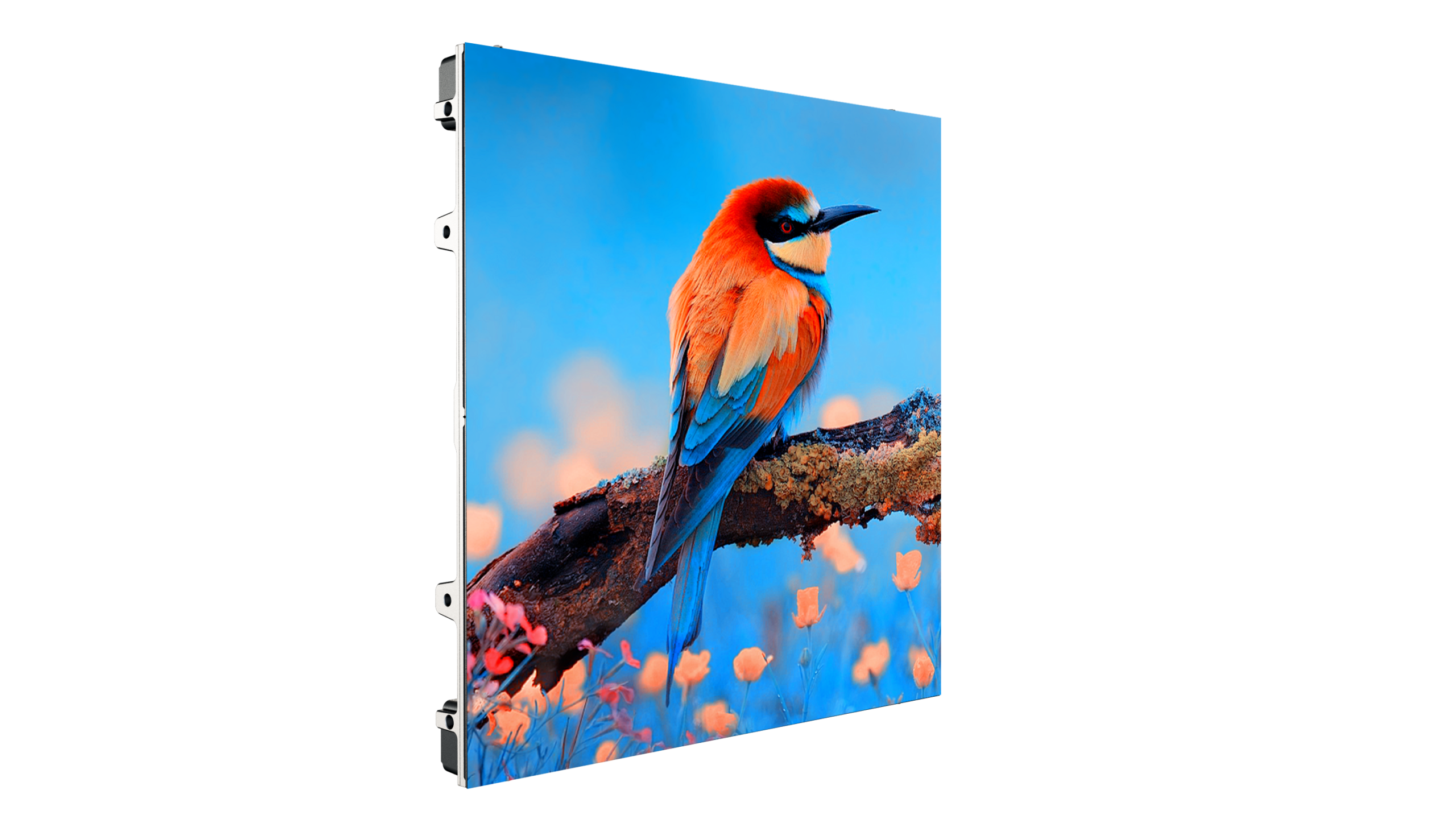

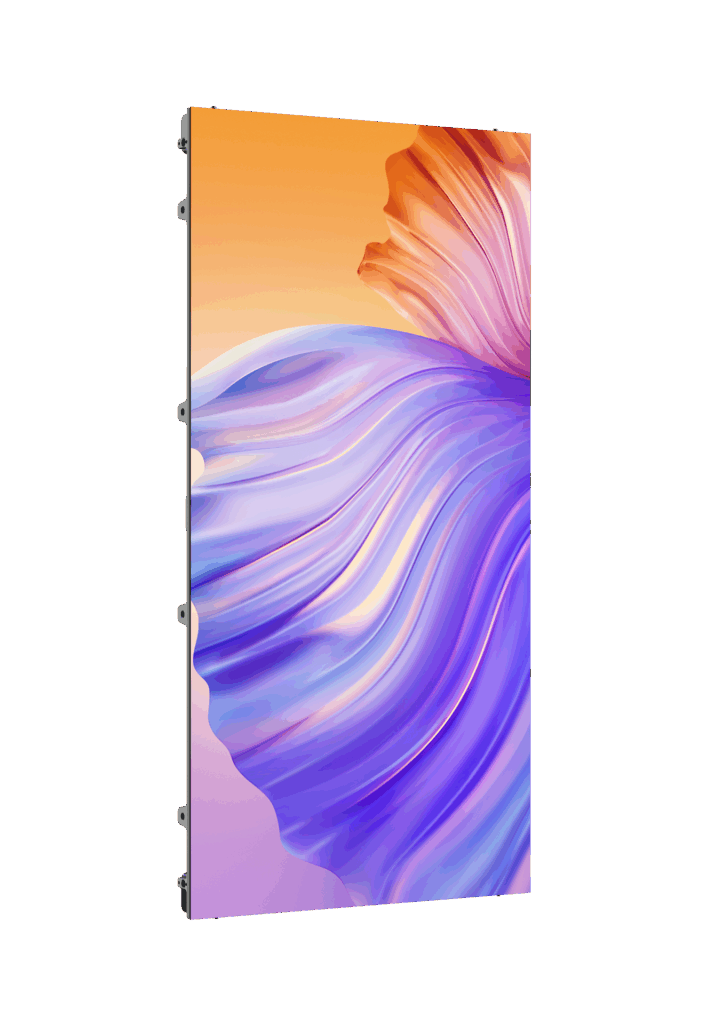

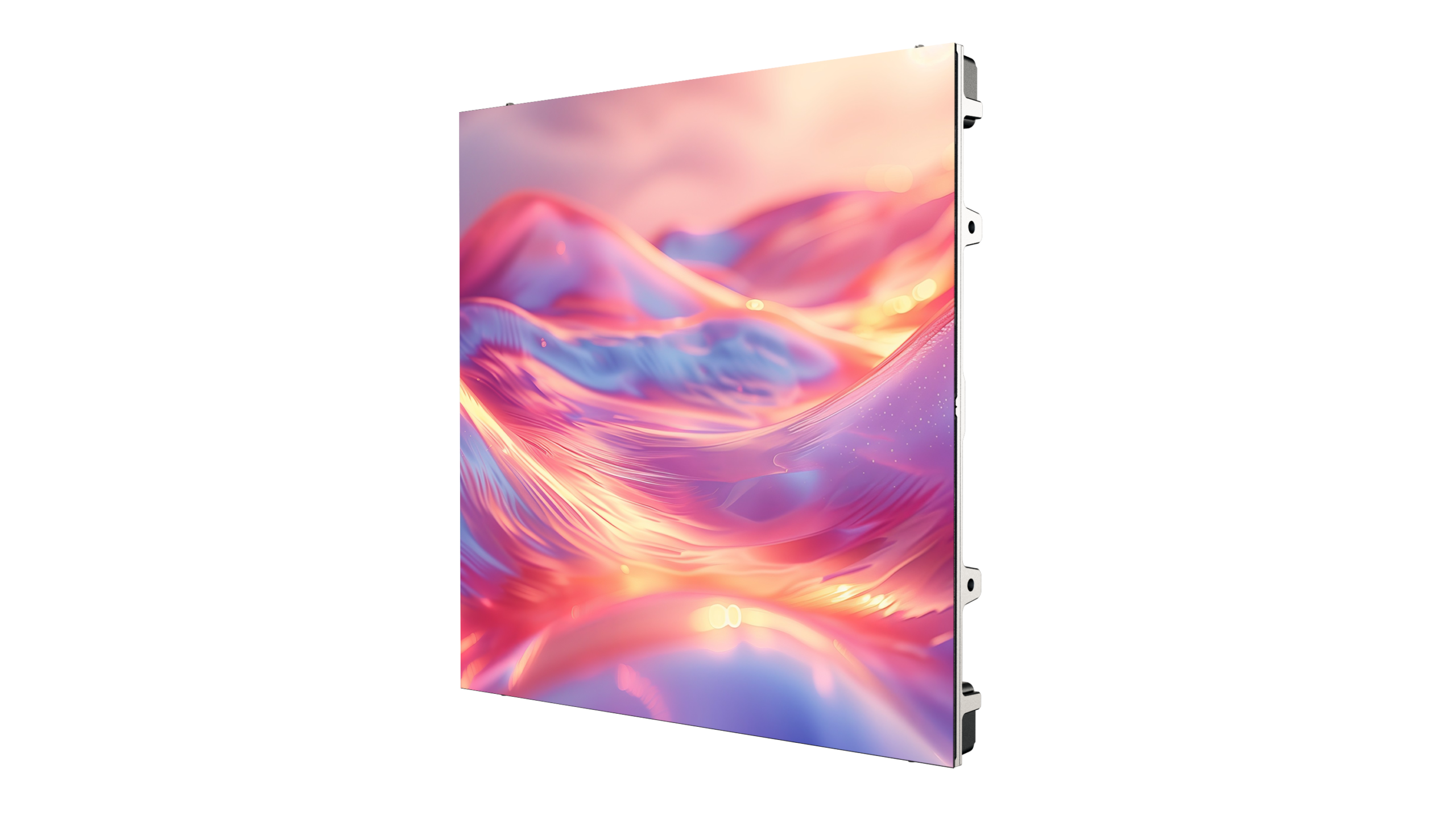

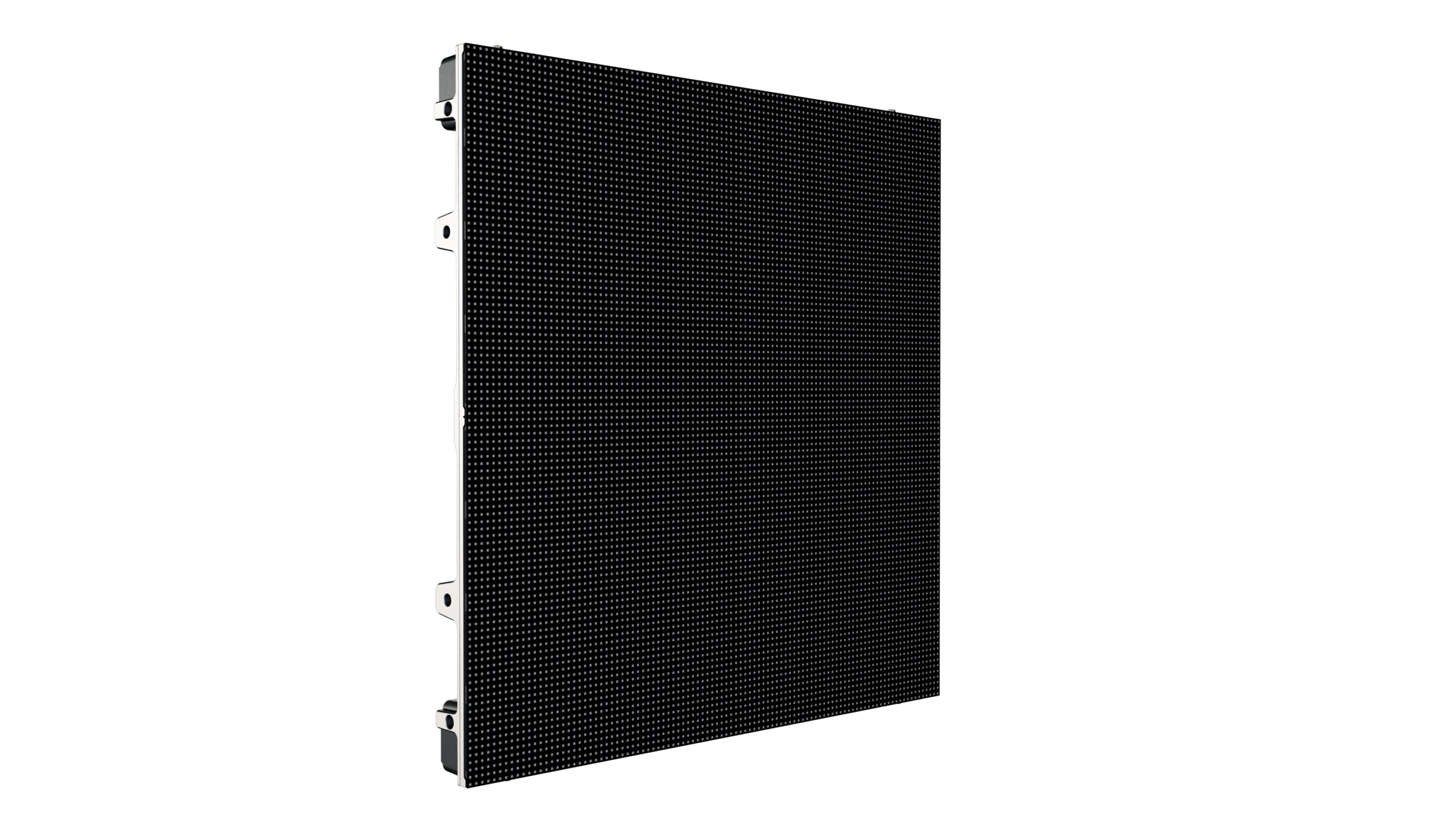

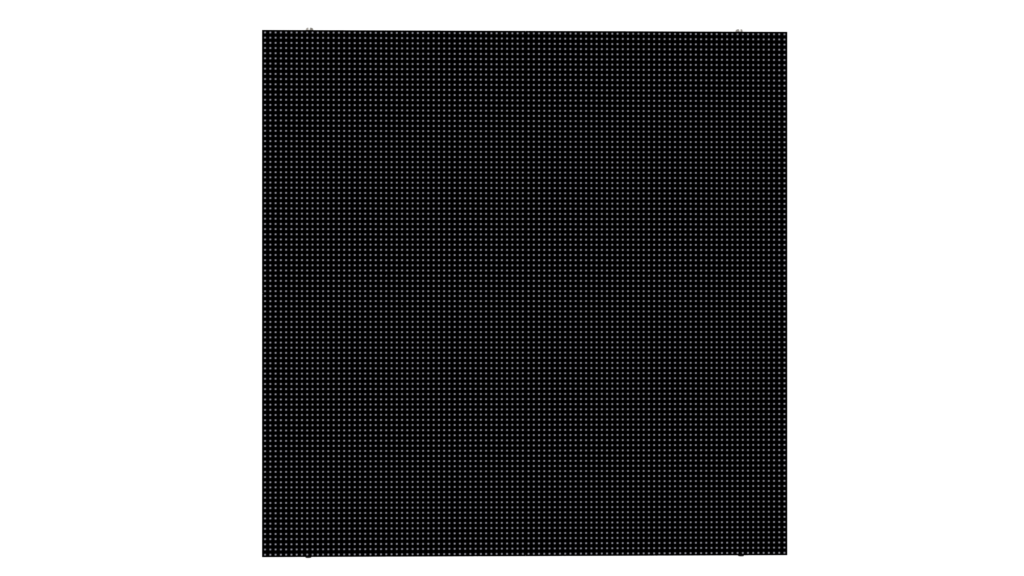

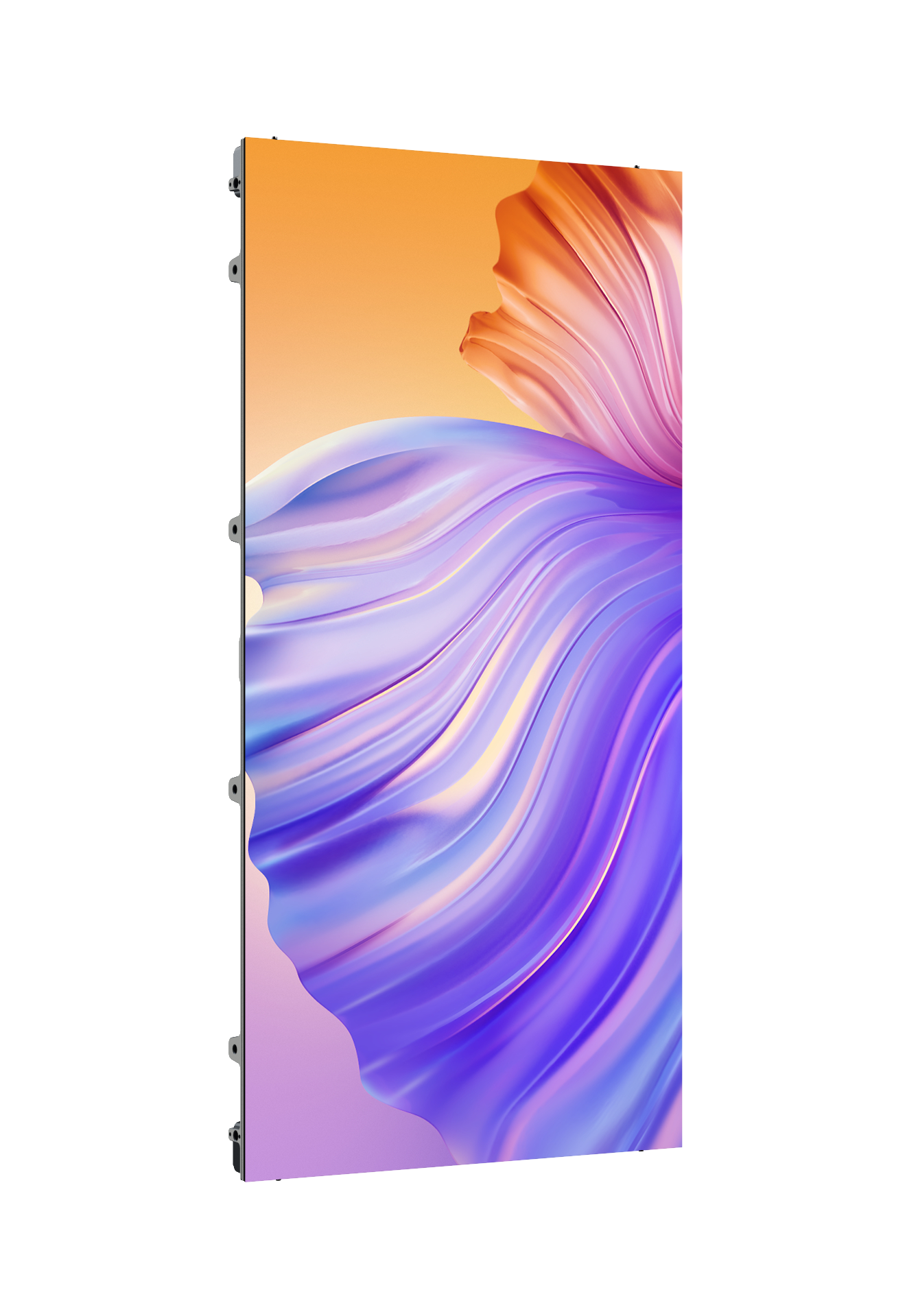

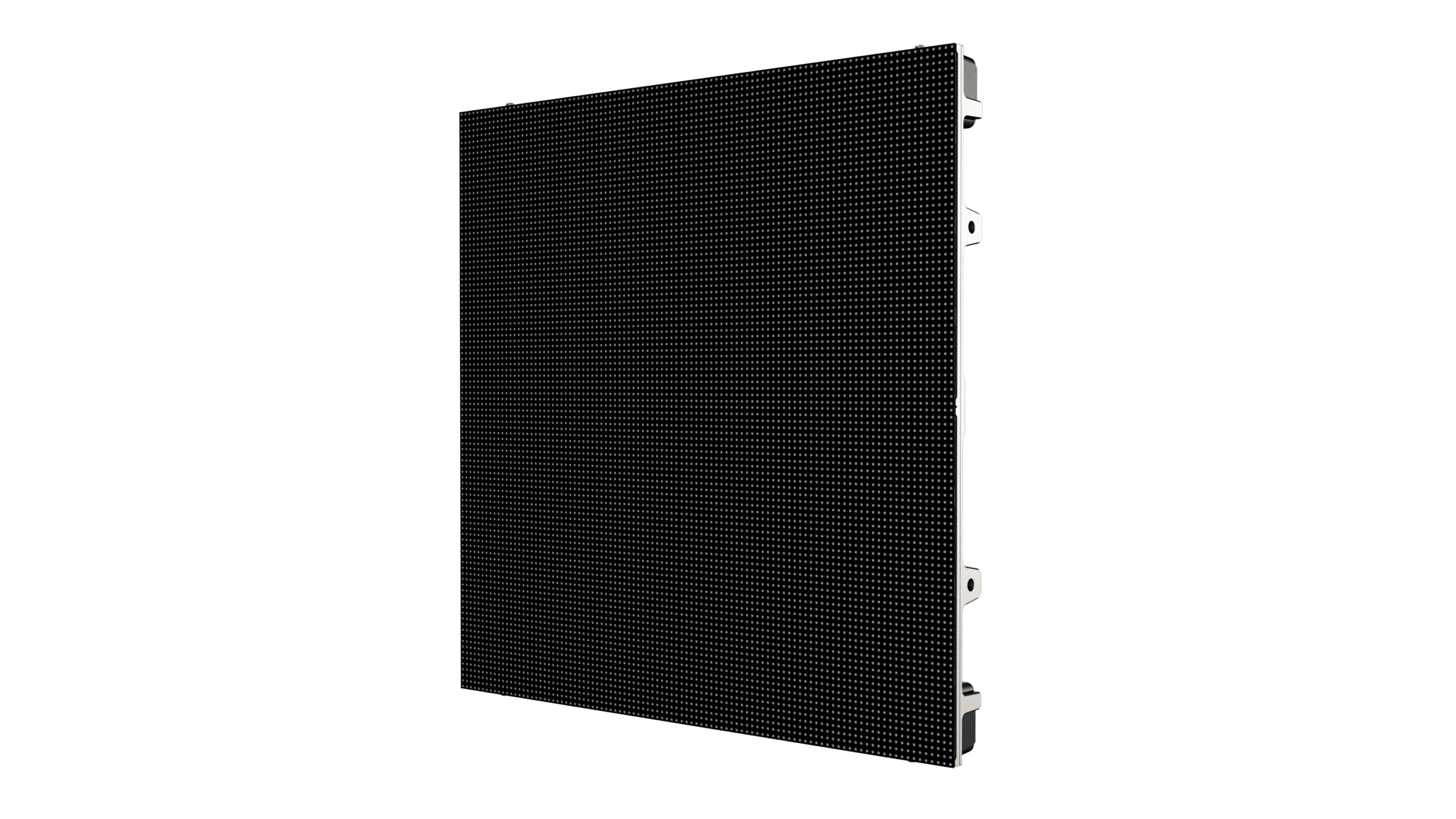

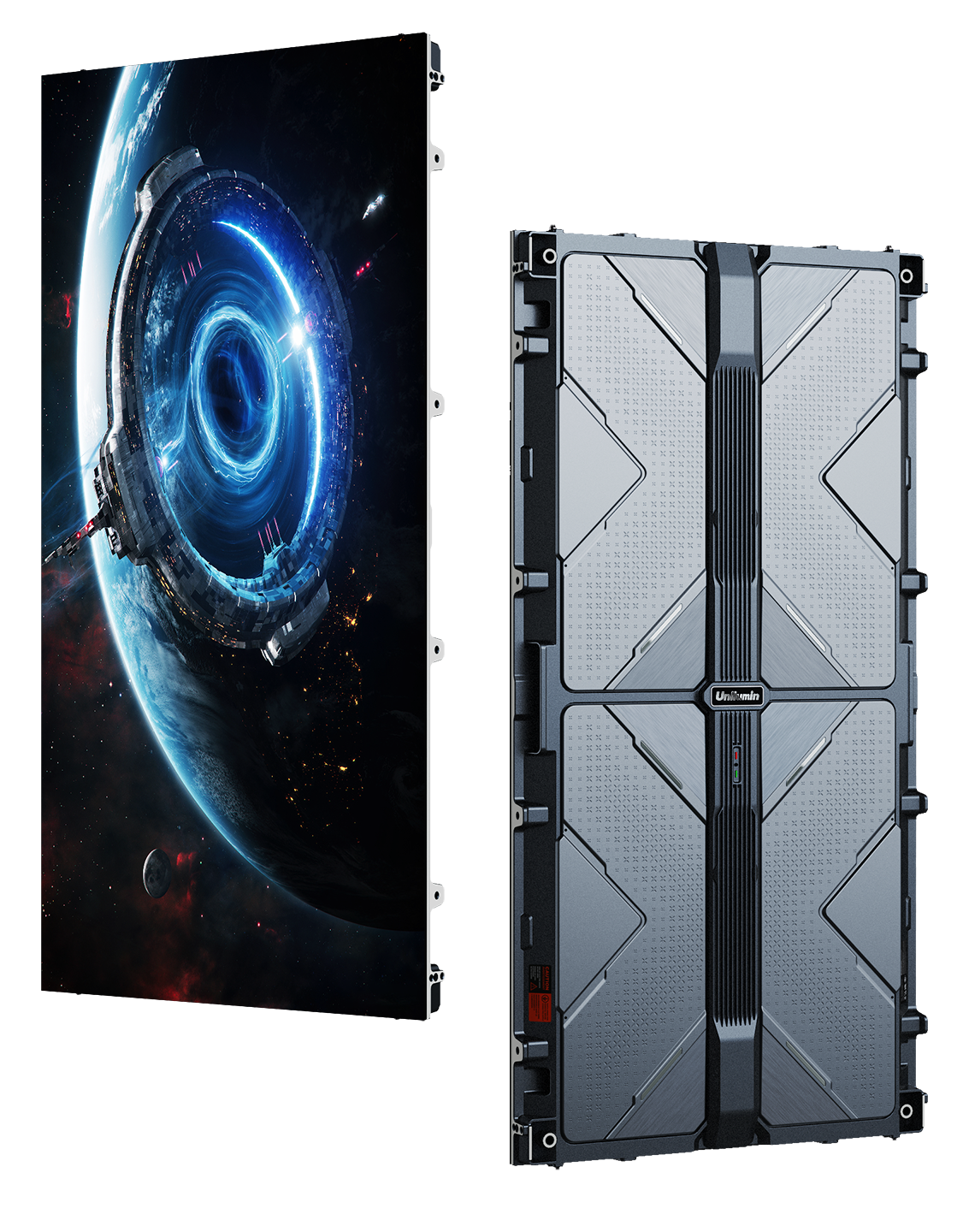

Uslim III SMD
The Uslim III SMD displays offer a wide range of applications. The variety of pixel pitches and module sizes allows for flexible adaptation to your individual needs.
Pixel Pitch:
0.9 mm – 1.2 mm
Lightweight and slim
The ultra-slim and lightweight design of the Uslim II series makes it lighter than average panels. Their static properties effectively reduce installation costs.

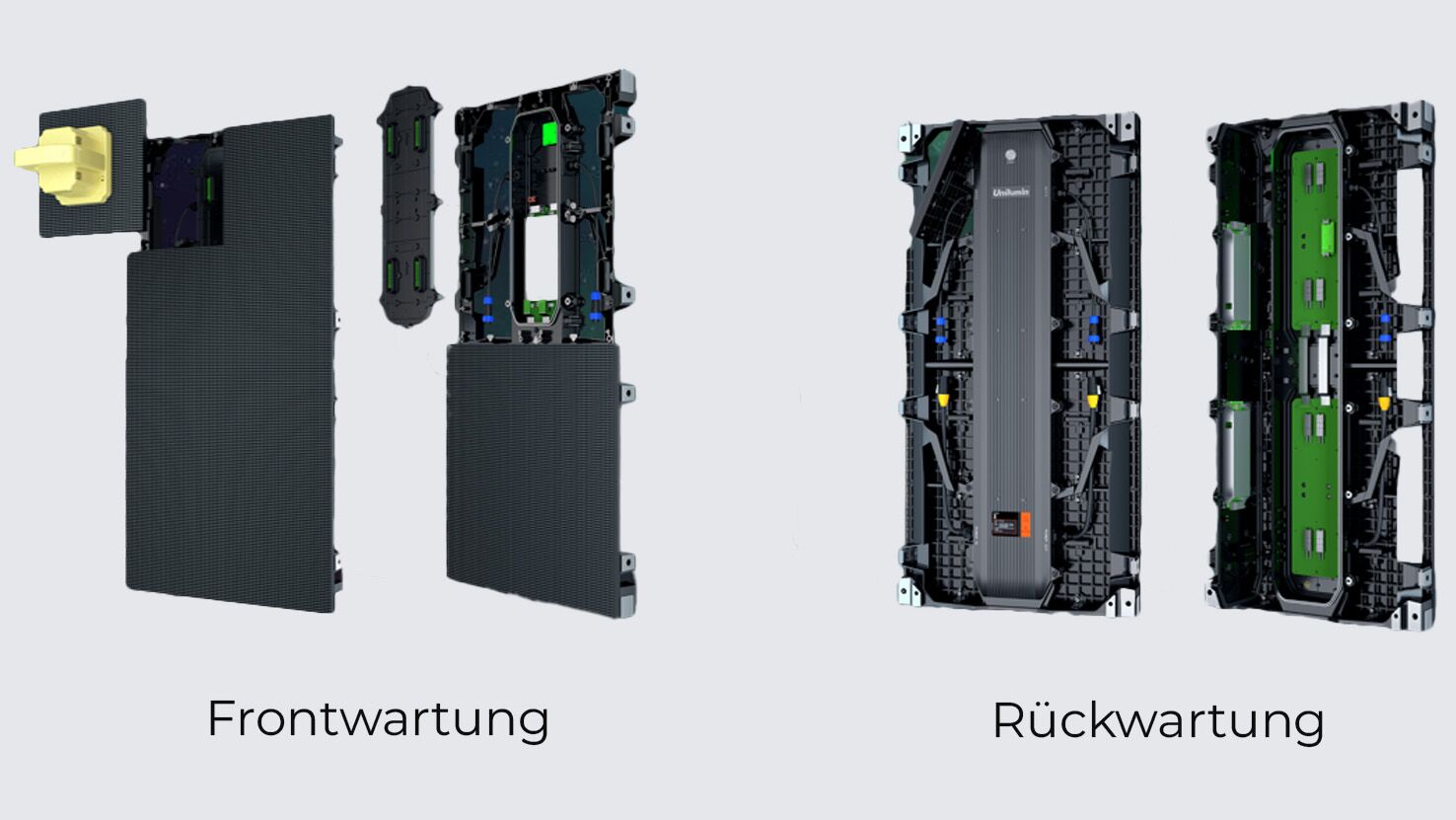

Easy handling

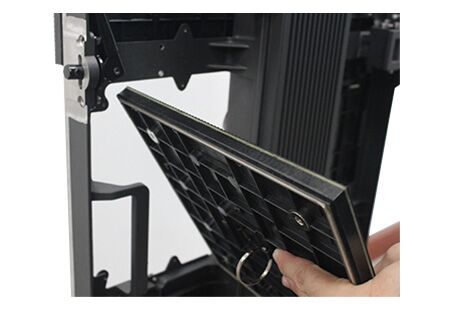

Front and rear service, fanless operation, cut cabinet – the Uslim II series simplifies setup and service and adapts to your individual needs.
Standardized Product Sizes

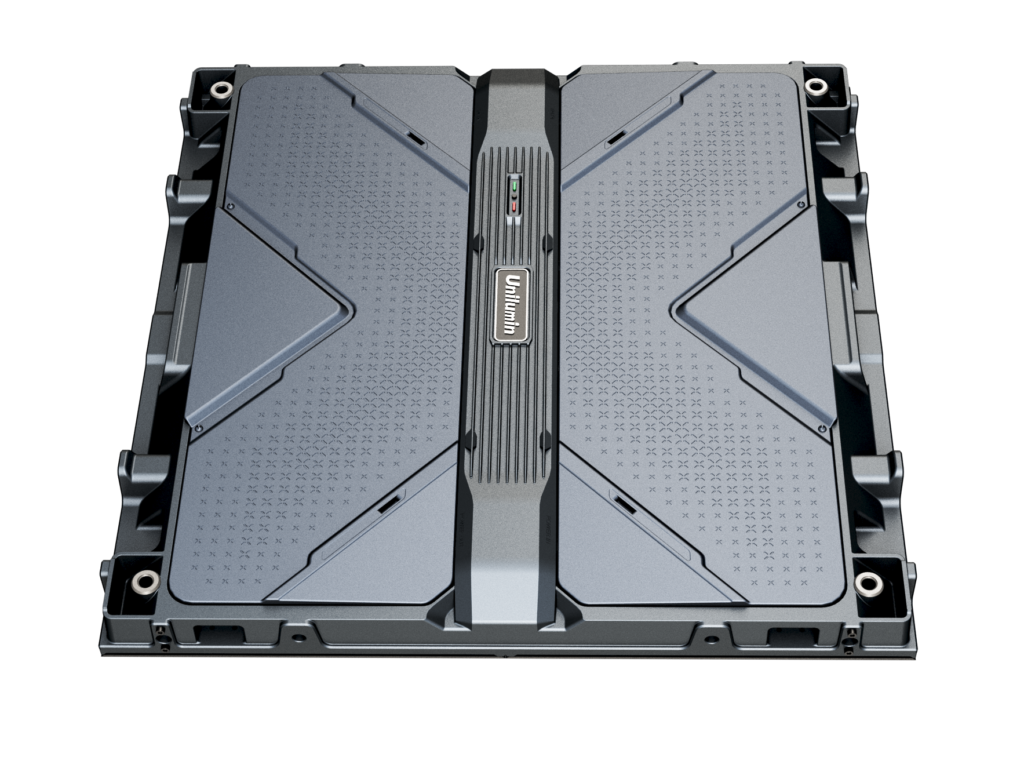

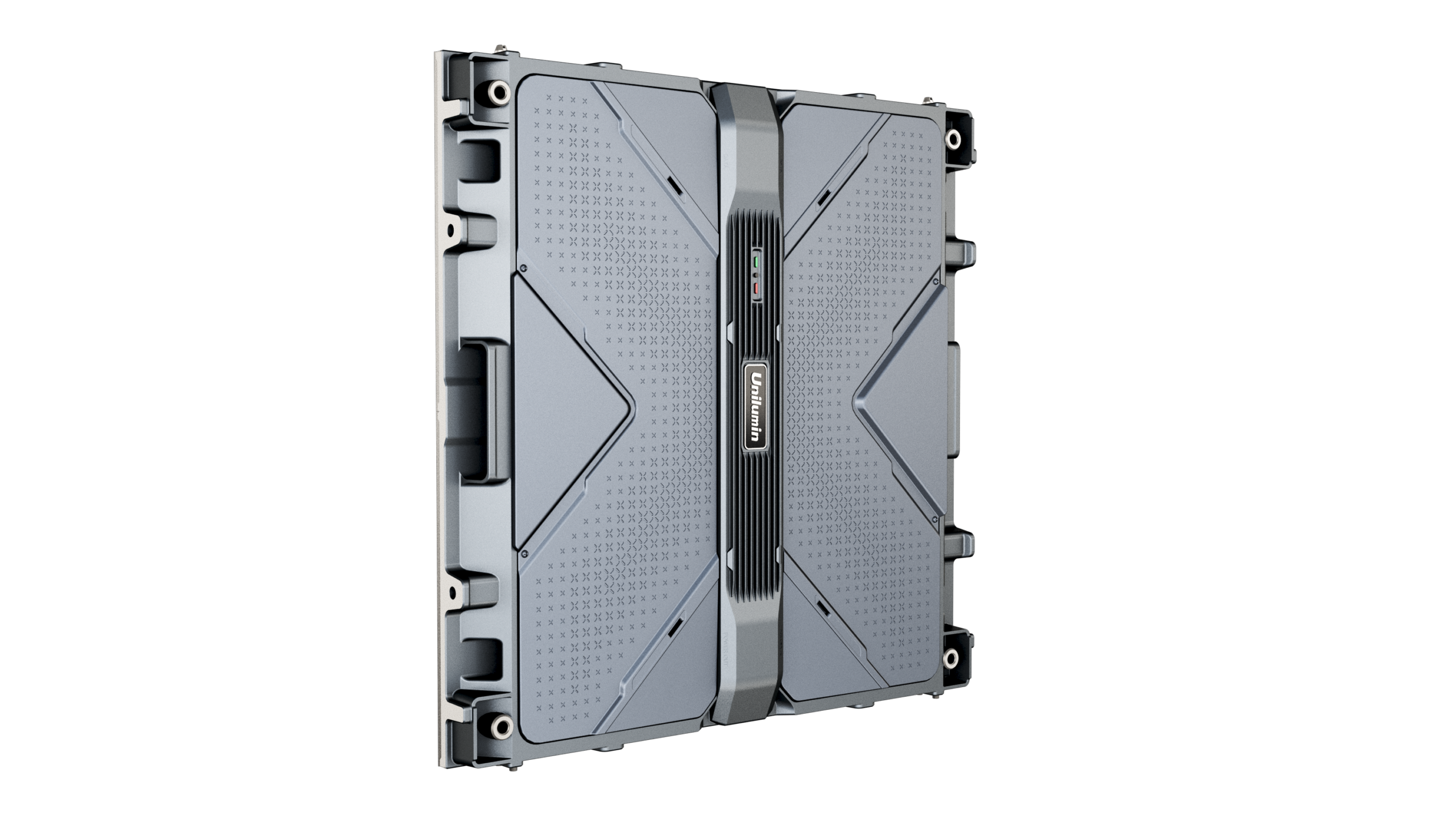

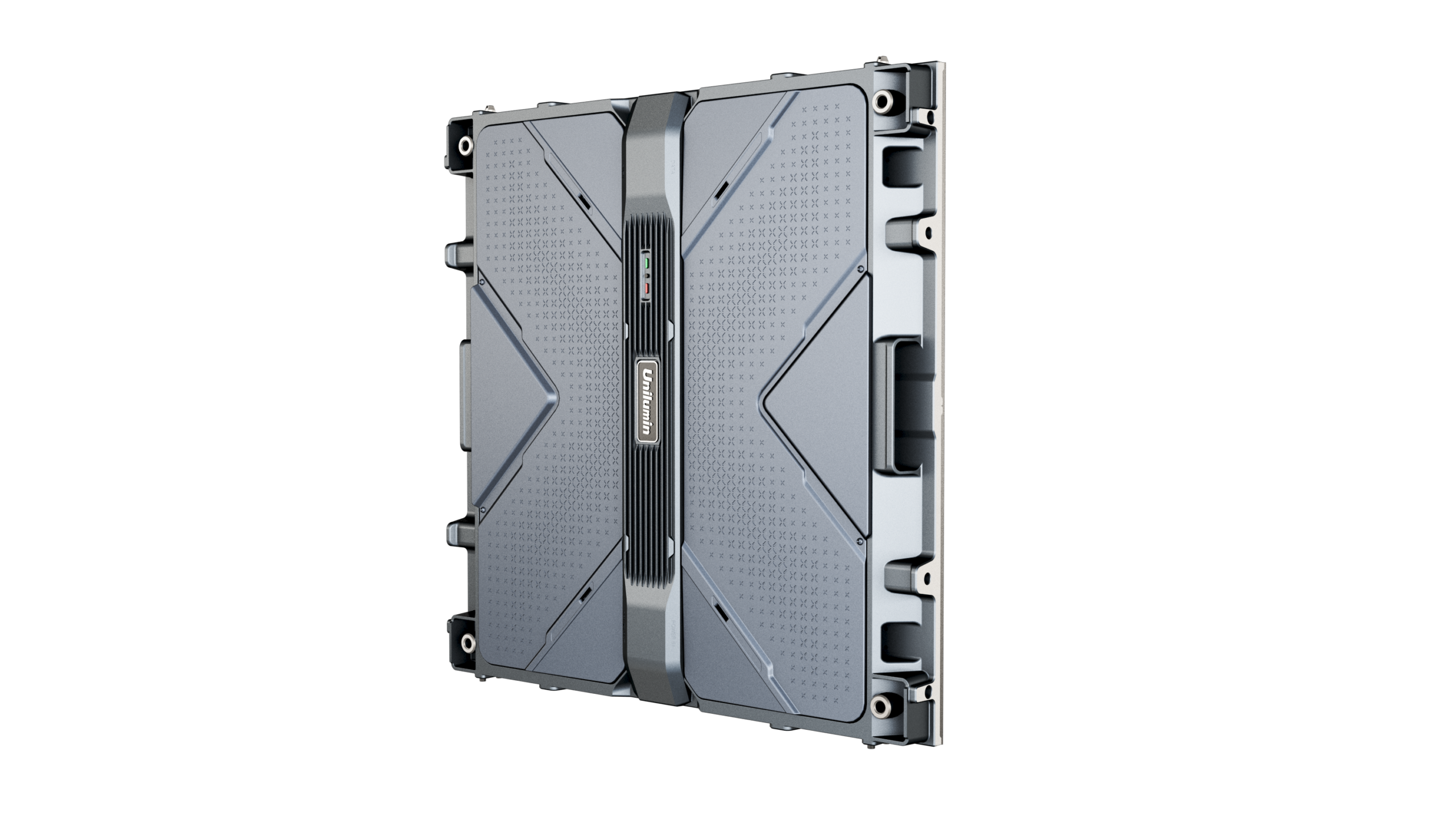

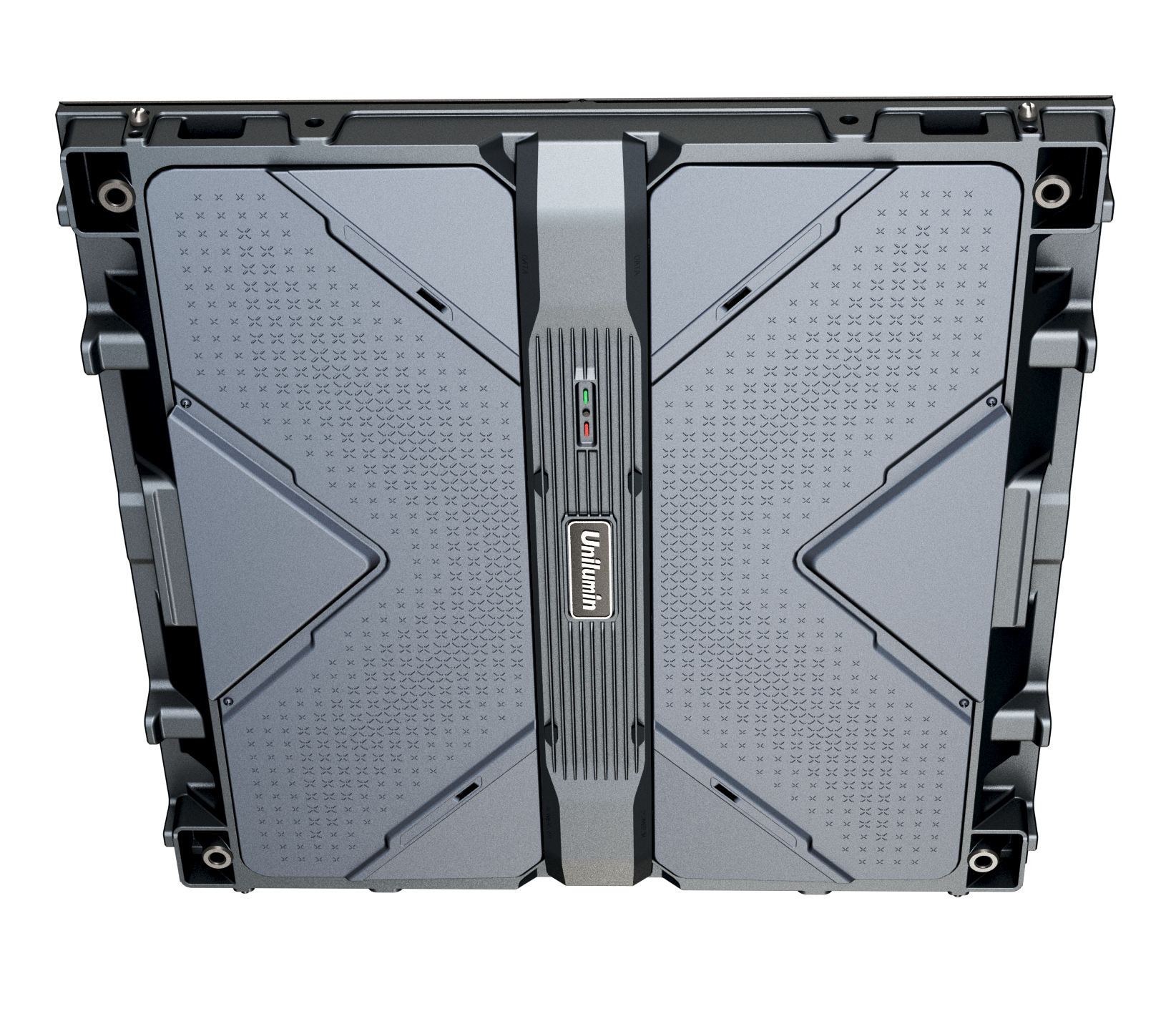

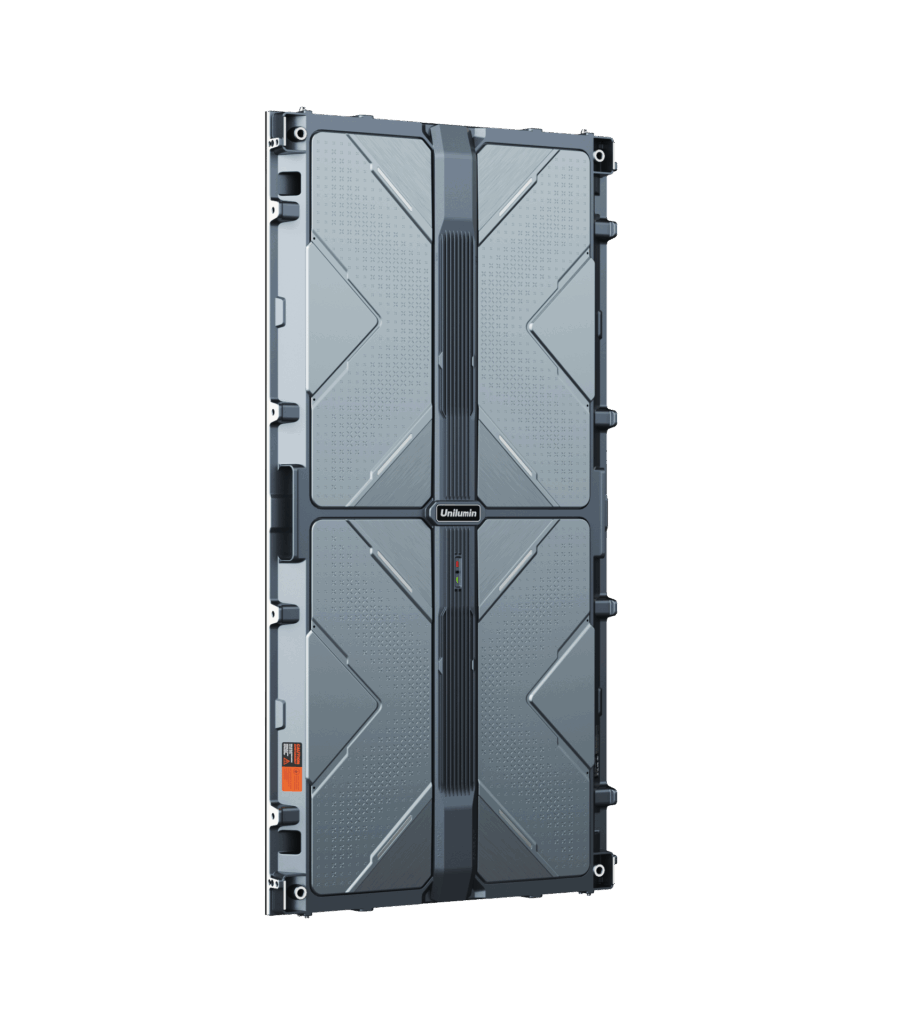

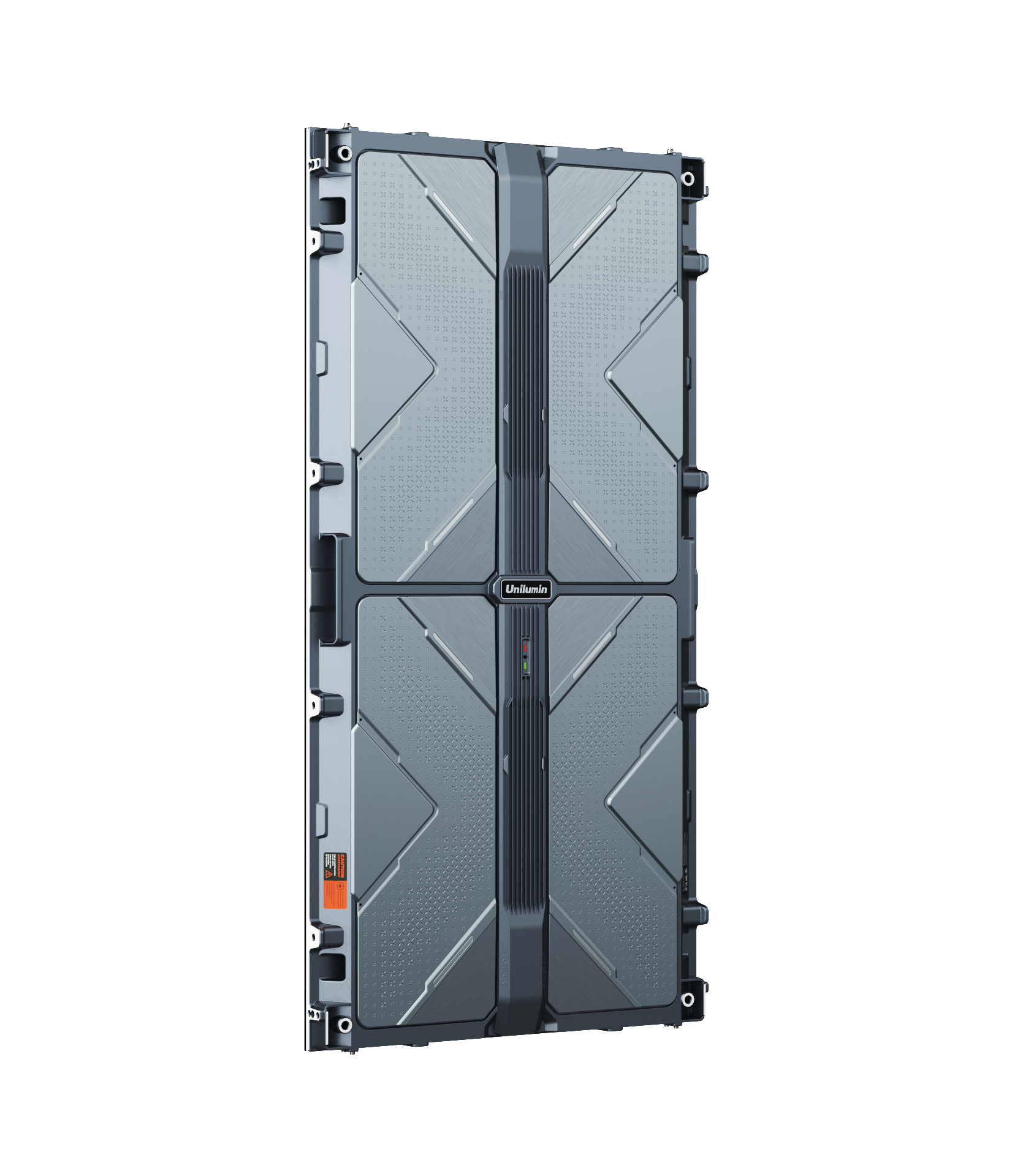

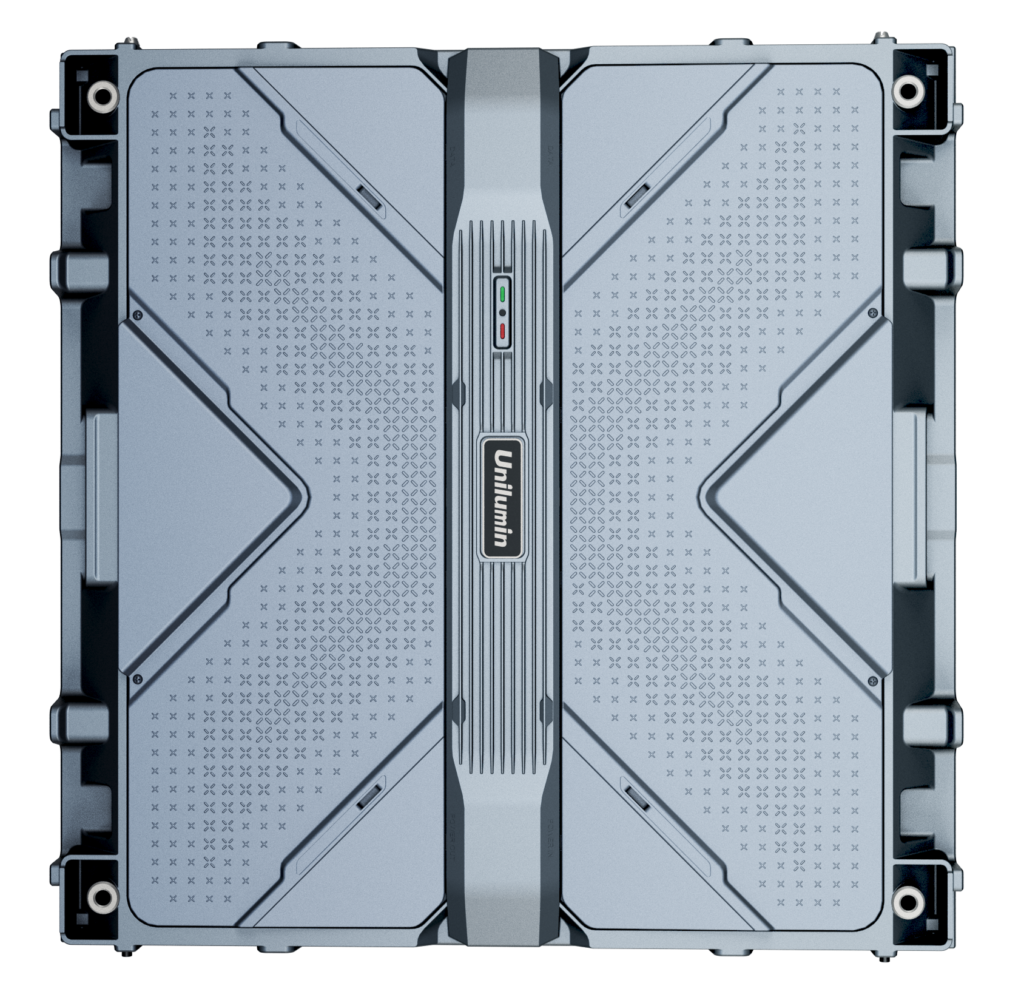

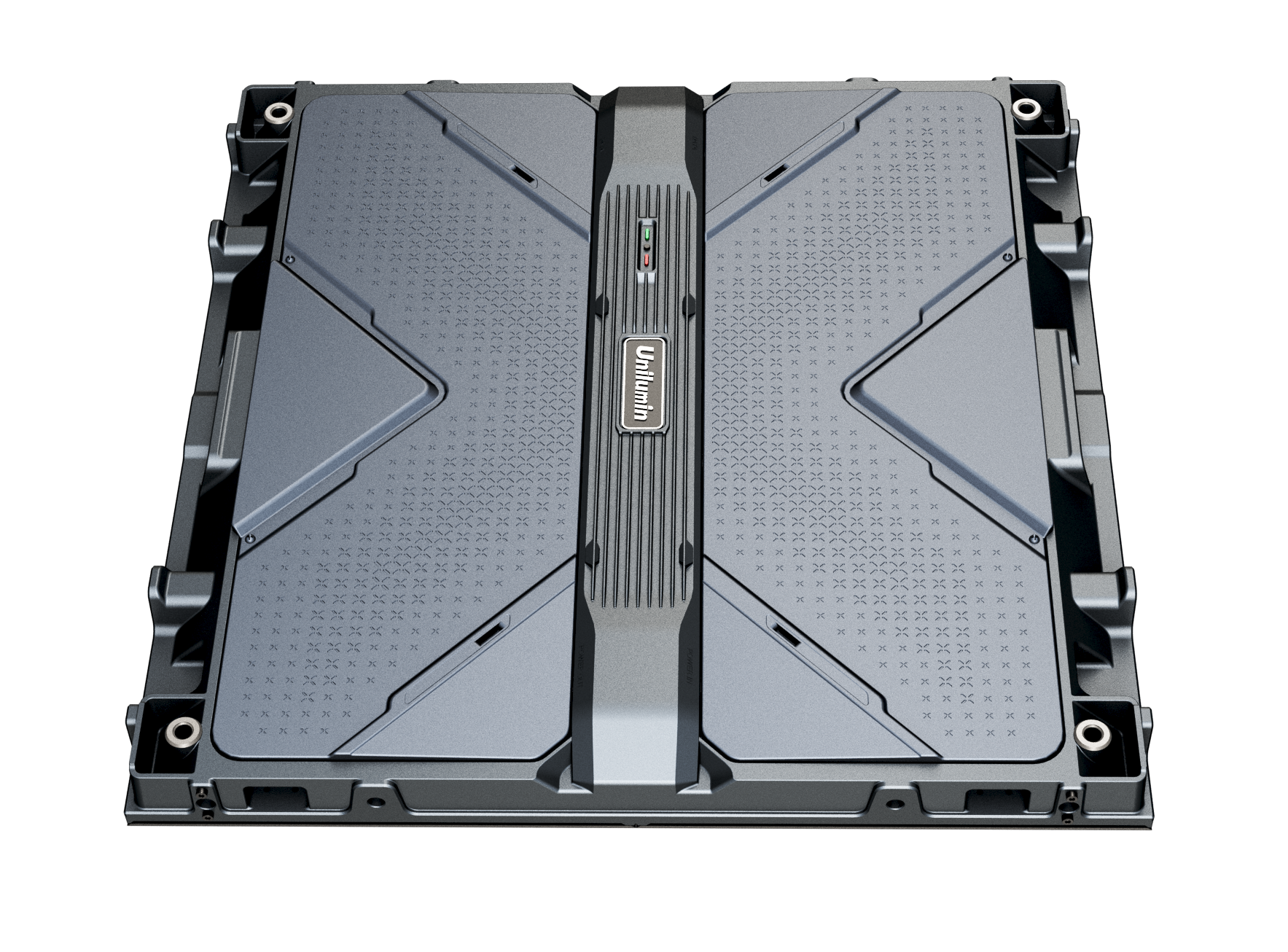

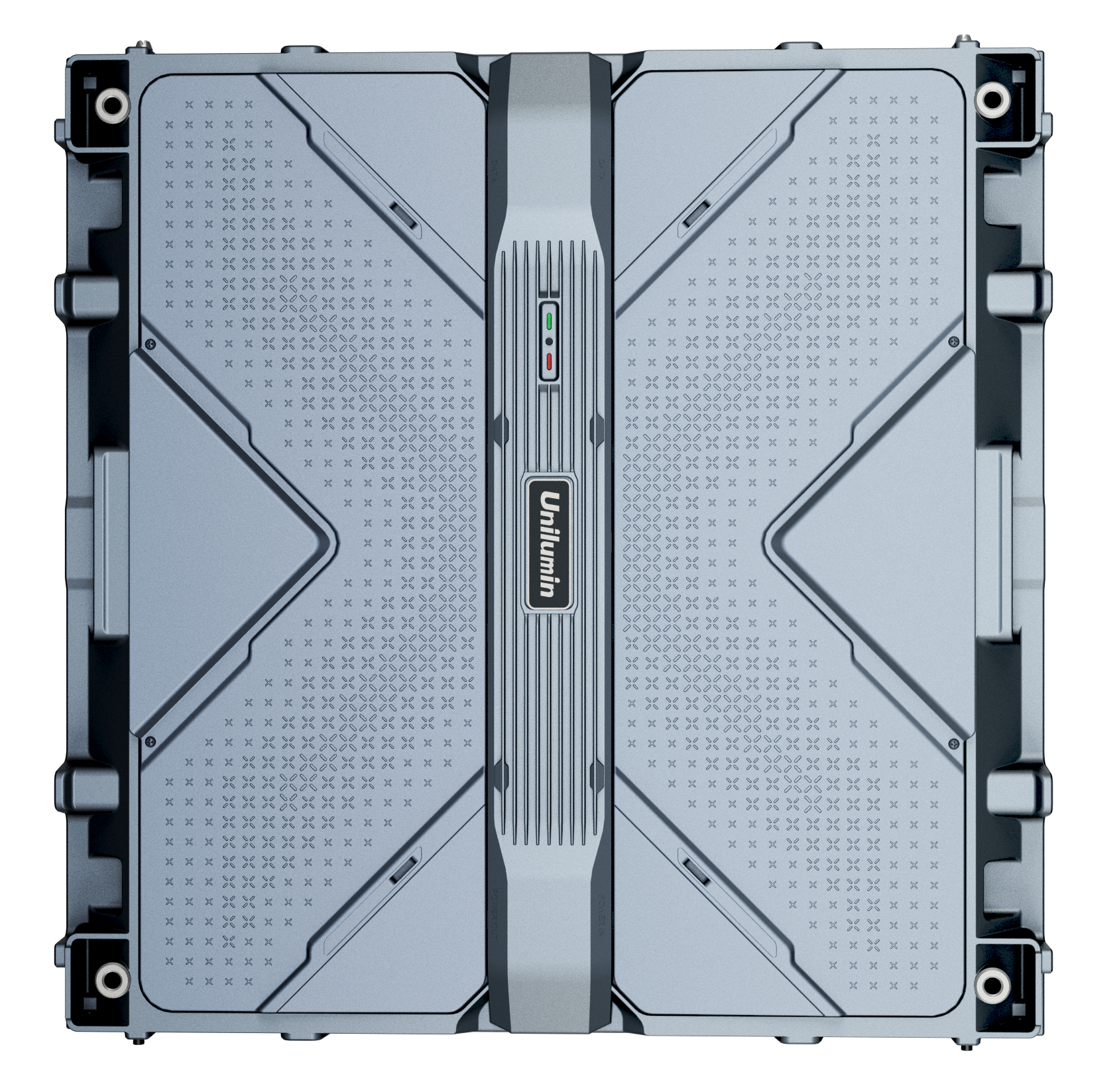

Three standard sizes of die-cast aluminum enclosures (500×250, 500×500, and 500×1000 mm) offer flexible application options. The 500 x 250 mm enclosure can be integrated horizontally and vertically.
Compatible with the UHF series
The Uslim II series uses the same module frame as the flexible UHF modules, making it ideal for interoperability.
Low-emission product
Our products have a positive CO2 footprint certification according to “DIN EN ISO 14064 – Product Carbon Footprint” from TÜV SÜD.
Specifications
| Umini Ⅲ 0.9 Pro | Umini Ⅲ 1.2 Pro | |
|---|---|---|
| Pixel Pitch | 0.9375 mm | 1.25mm |
| Dimensions | 600 x 337.5 x 40 mm | 600 x 337.5 x 40 mm |
| Brightness | 600 nits / 1,200 nits | 600 nits / 1,200 nits |
| Aspect ratio | 16:9 | 16:9 |
| Contrast | 15,000:1 / 20,000:1 | 15,000:1 / 20,000:1 |
| LED type | Mini LED (Flip Chip COB) | Mini LED (Flip Chip COB) |
| Refresh rate | 3,840 Hz | 3,840 Hz |
| Service access | Front | Front |
| Video frame rate | 50/60 Hz | 50/60 Hz |
| Protection class | IP50 | IP50 |
| Resolution | 640x360 px | 480x270 px |
| Viewing angle horizontal | 180° | 180° |
| Viewing angle virticle | 180° | 180° |
| Weight | 6 kg | 6 kg |
