Usurface PL1

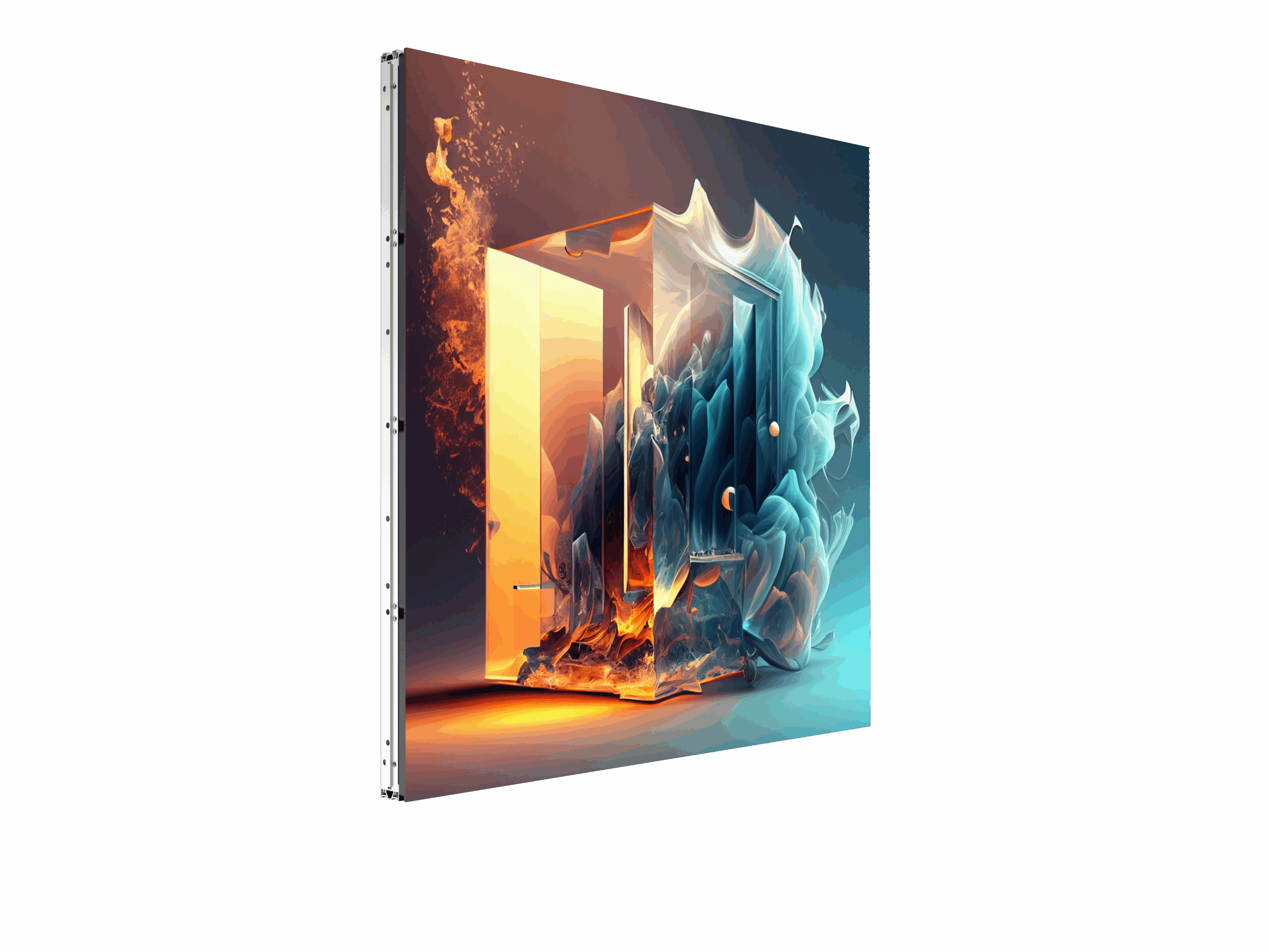

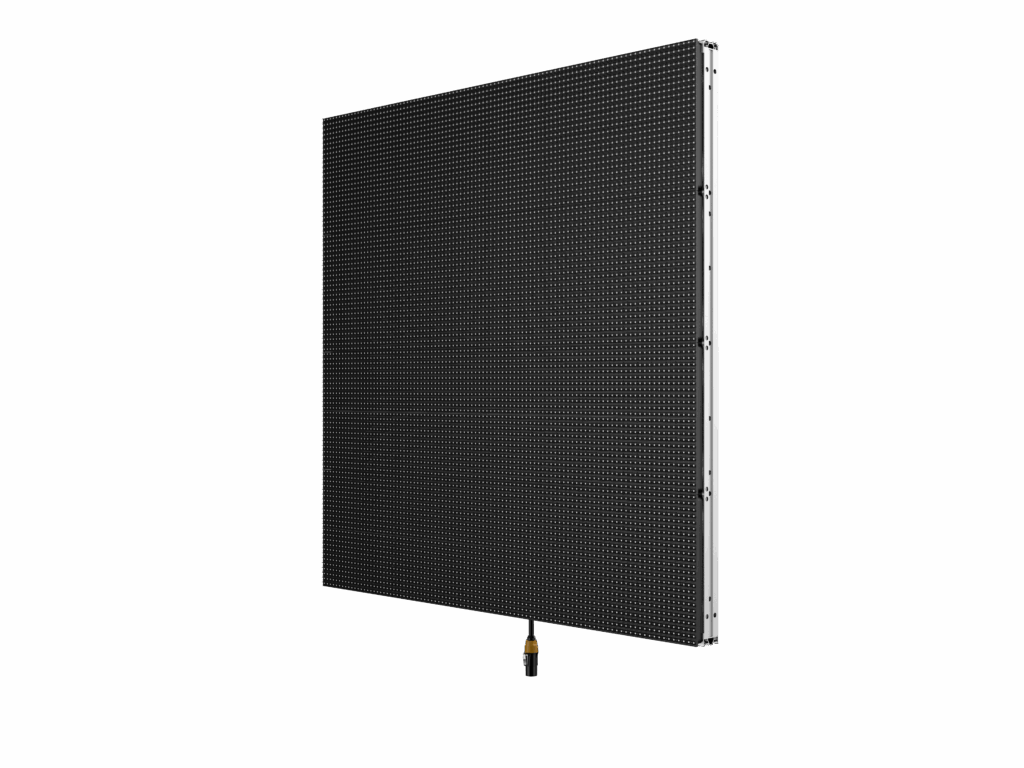

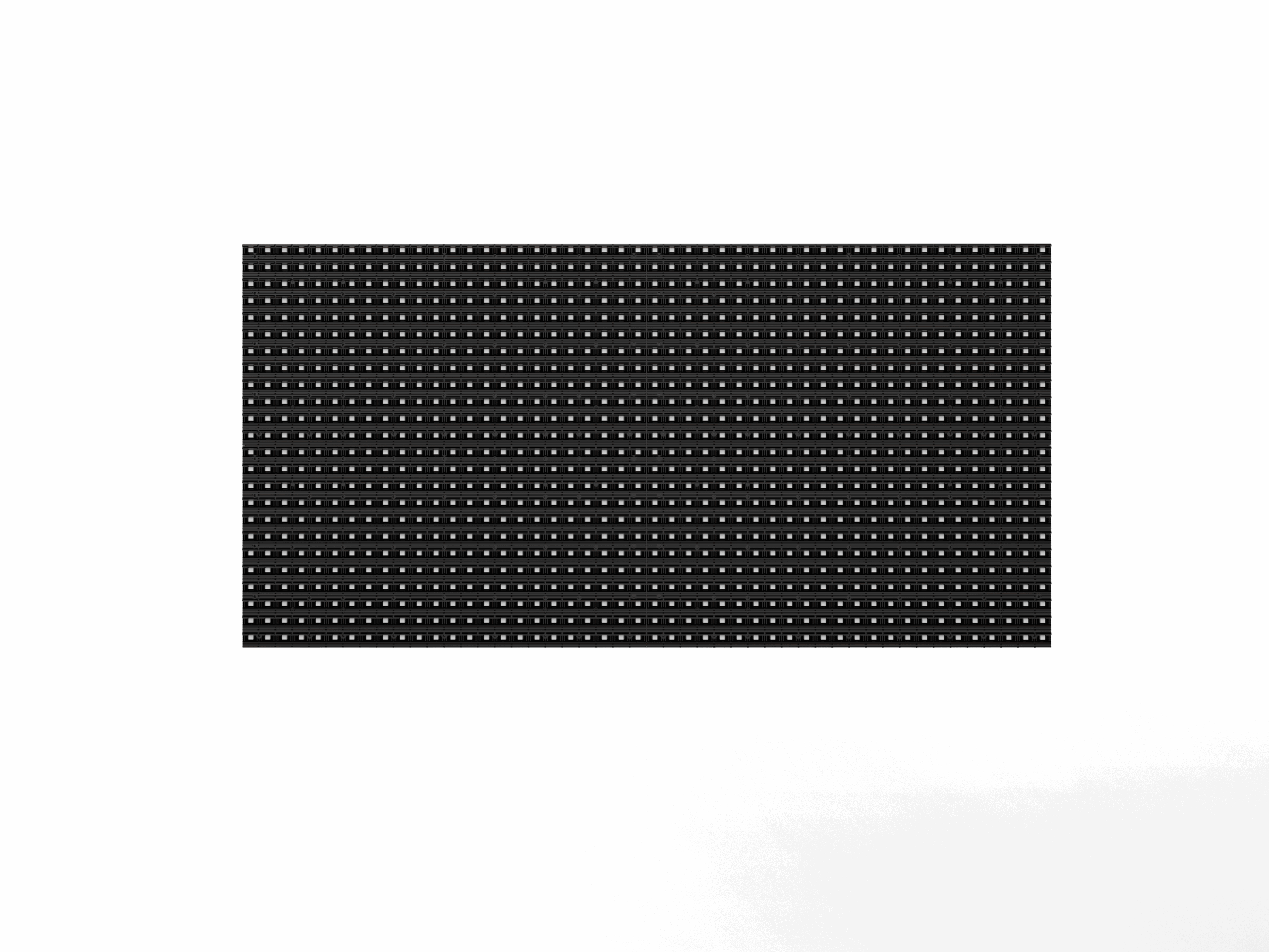

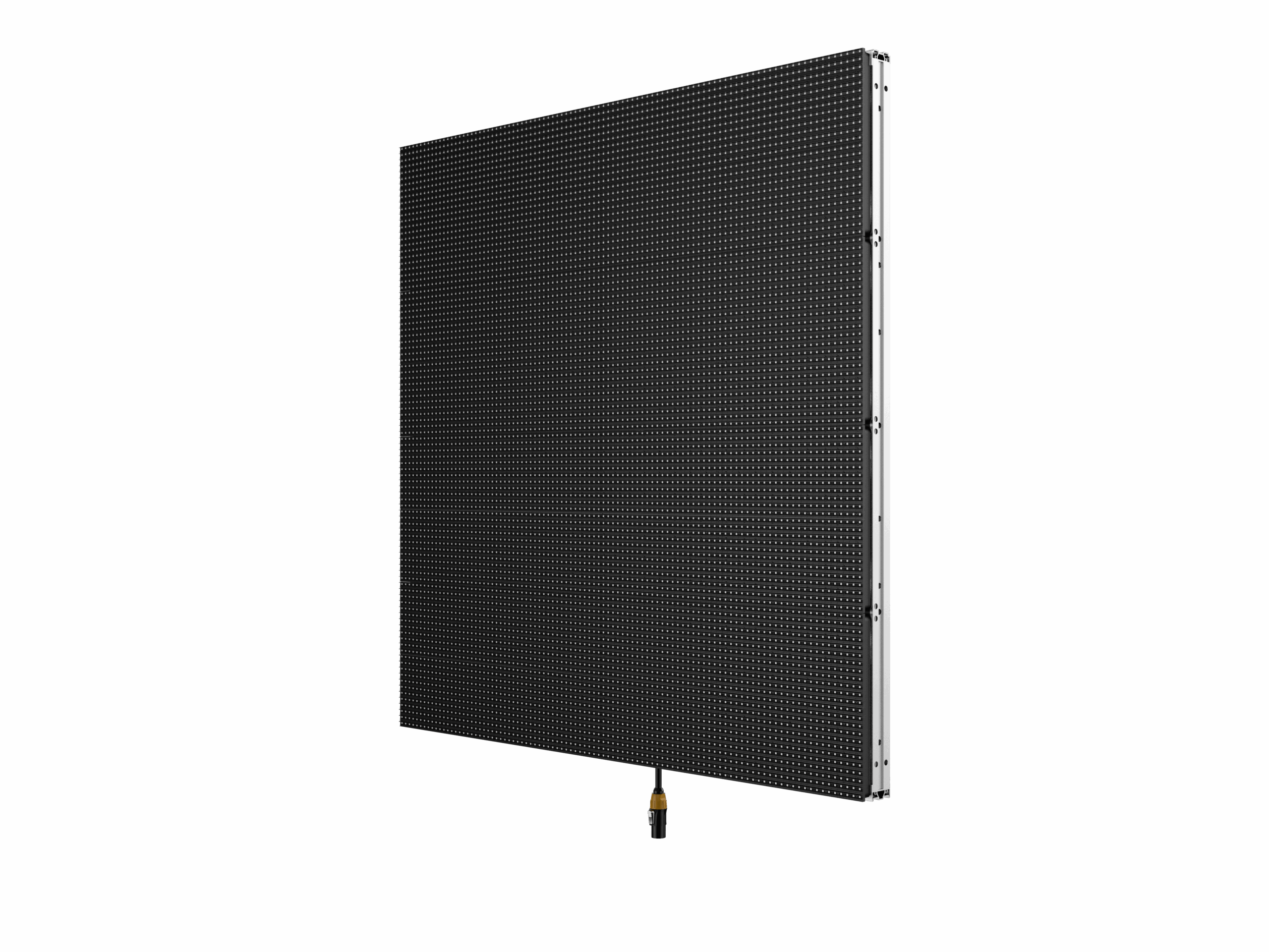

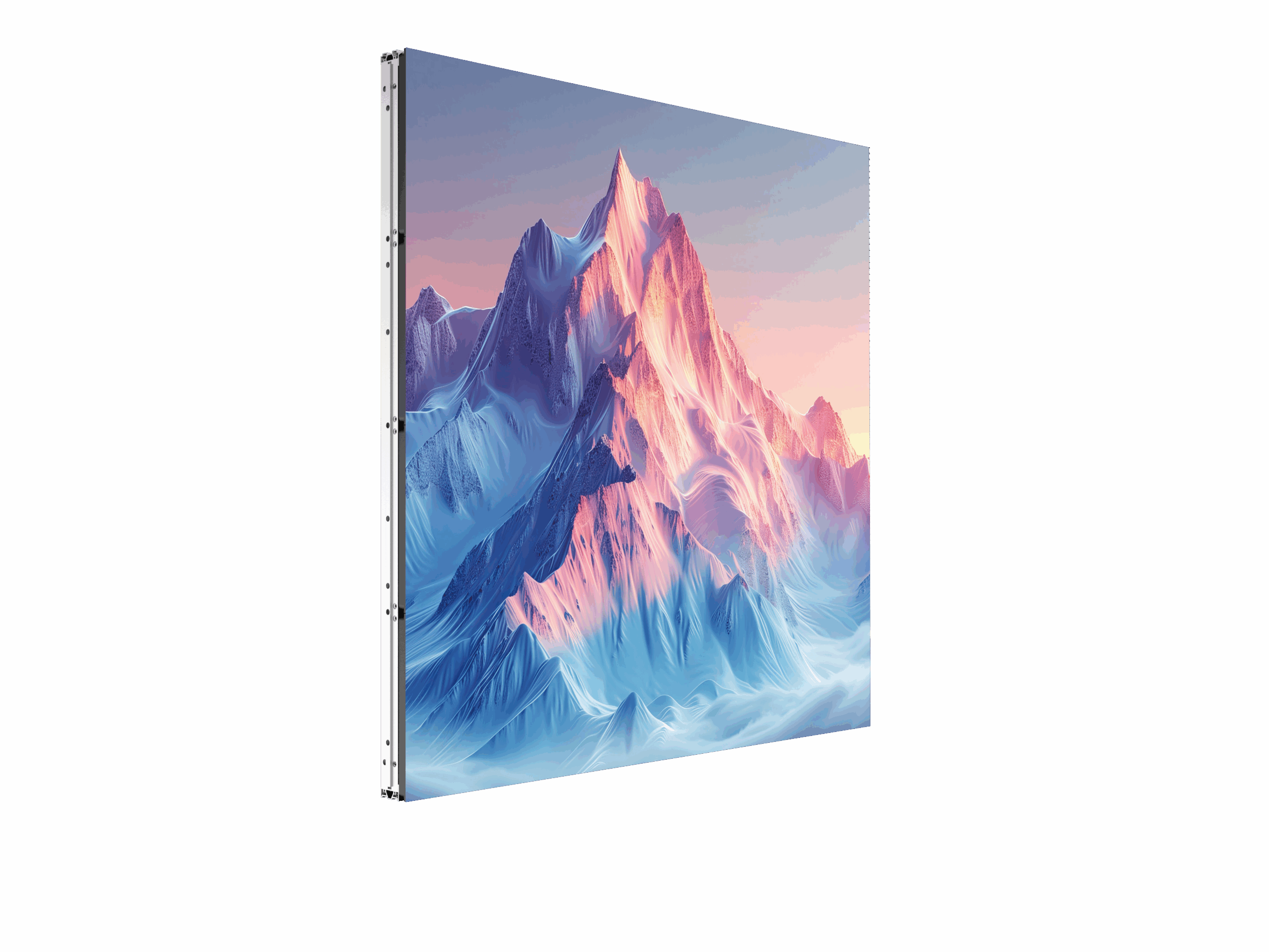

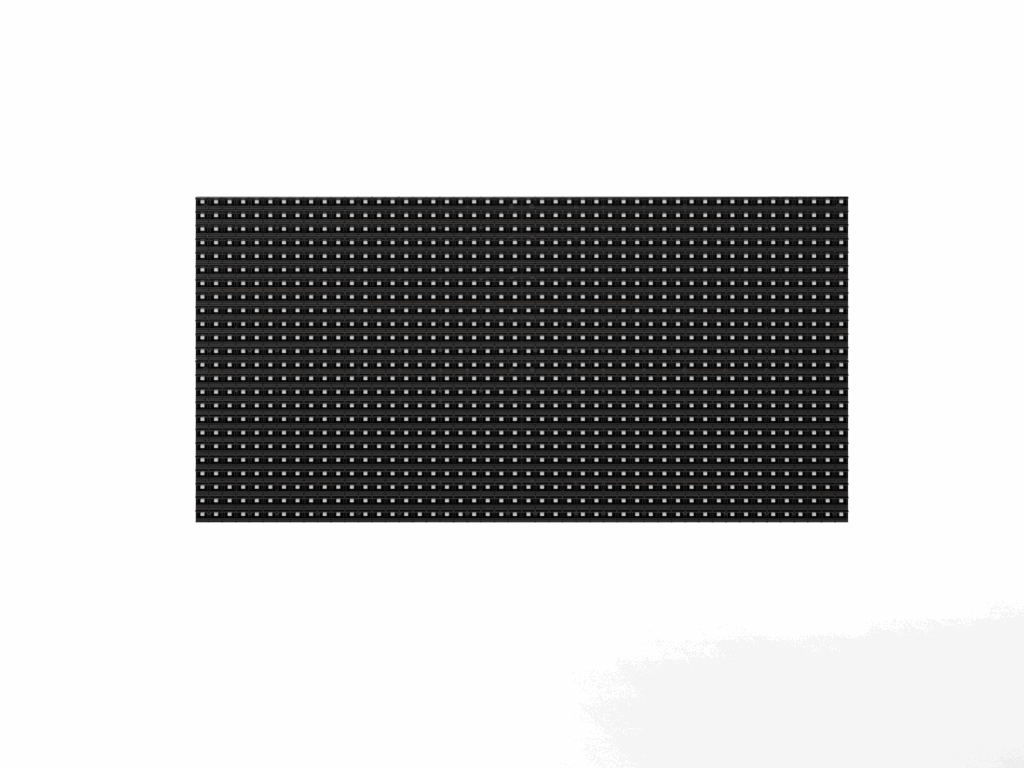

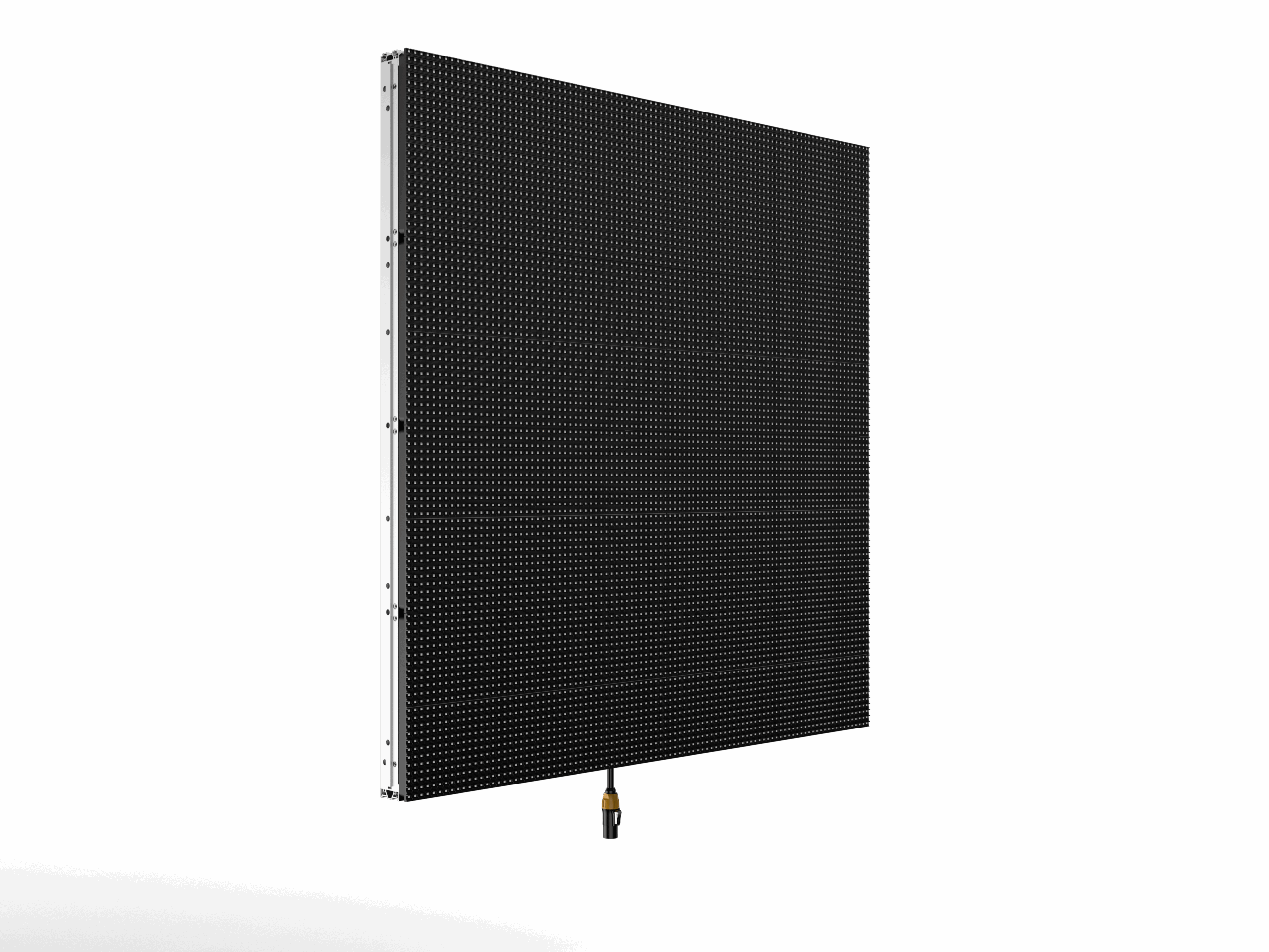

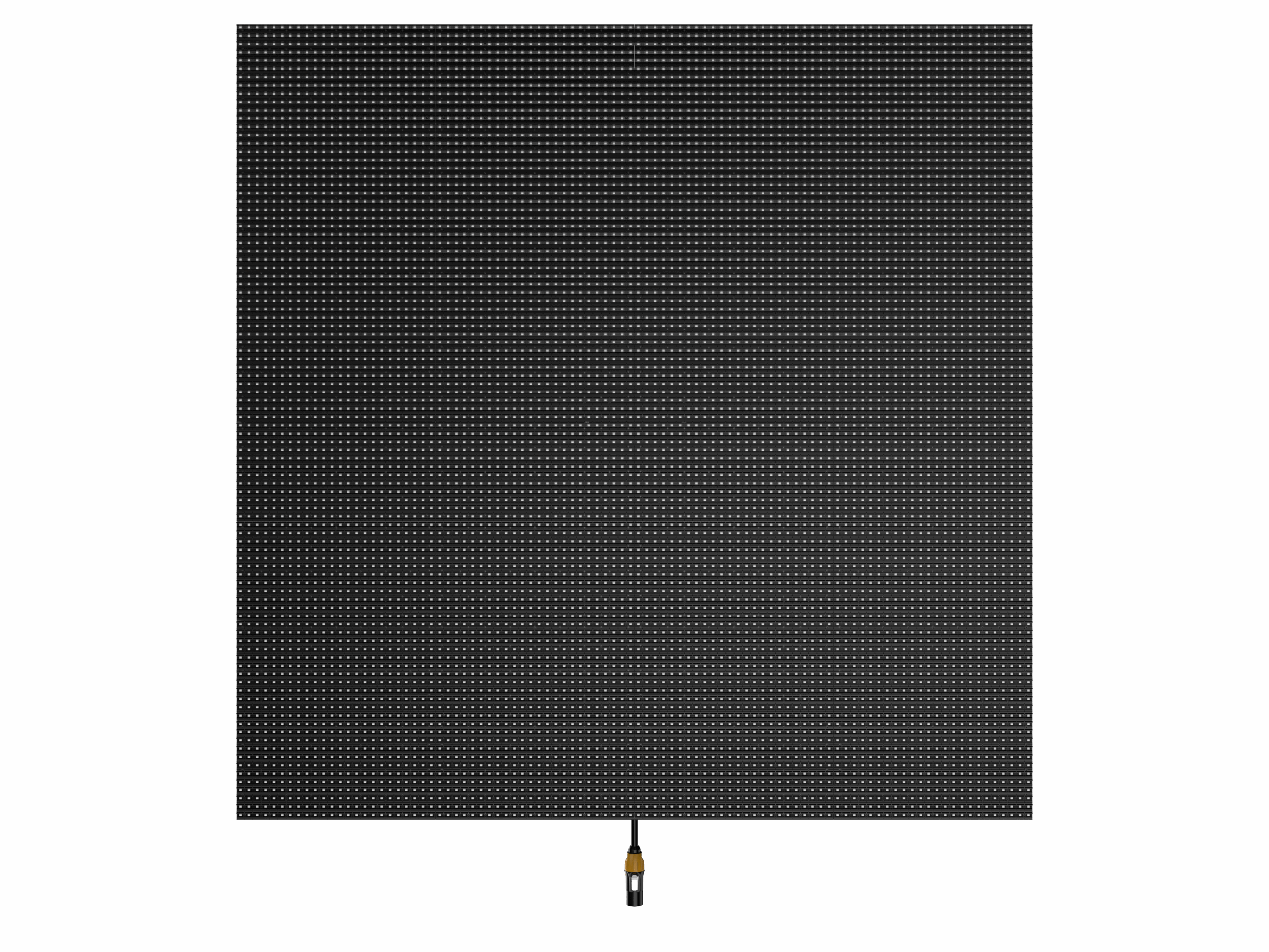

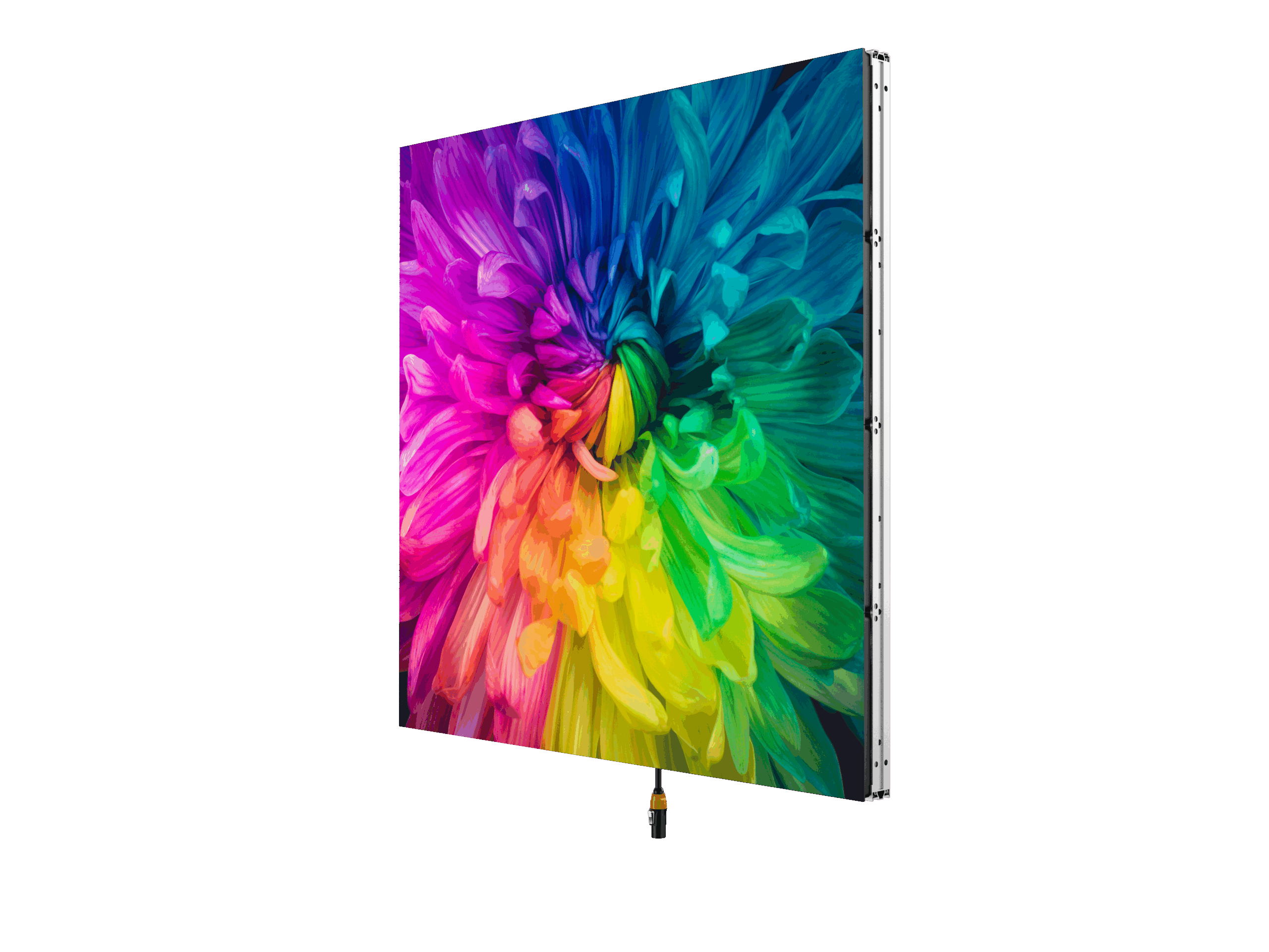

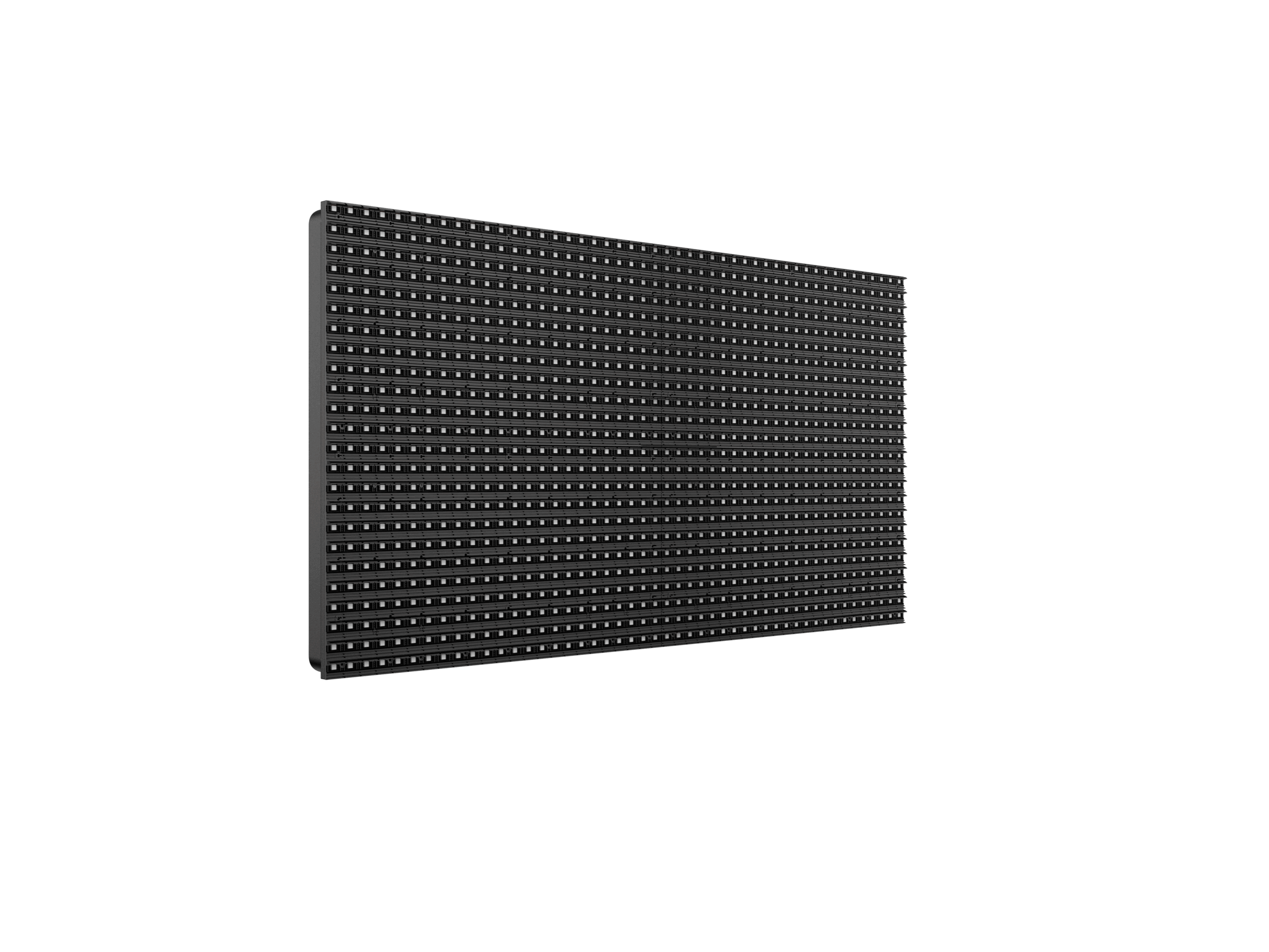

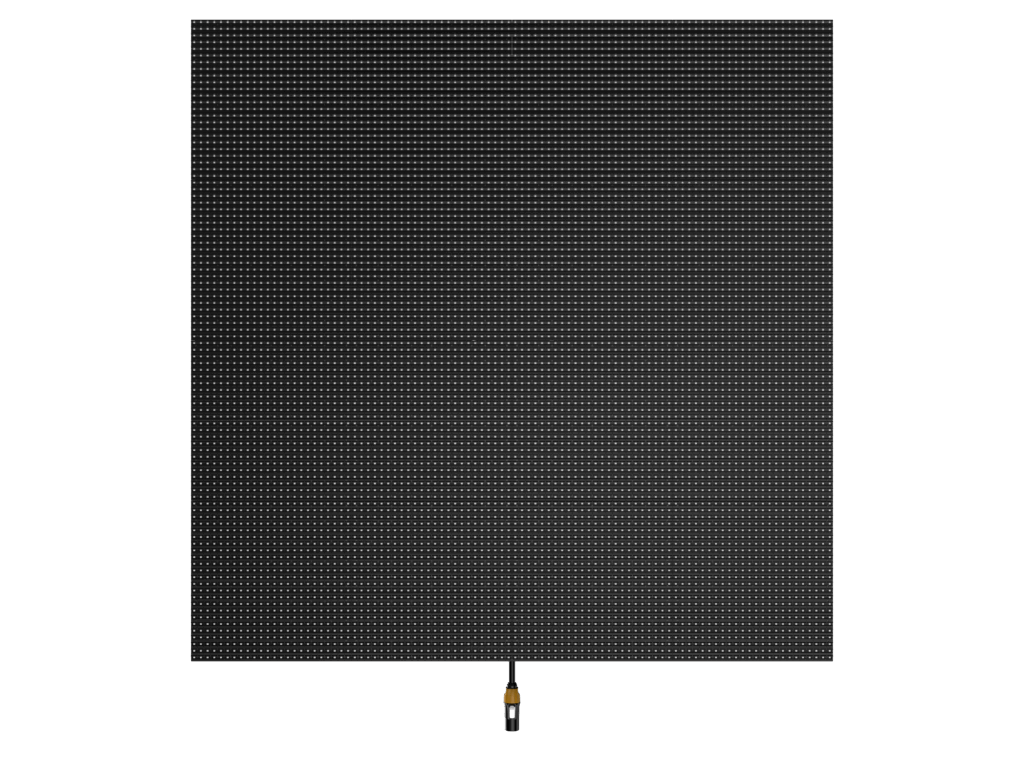

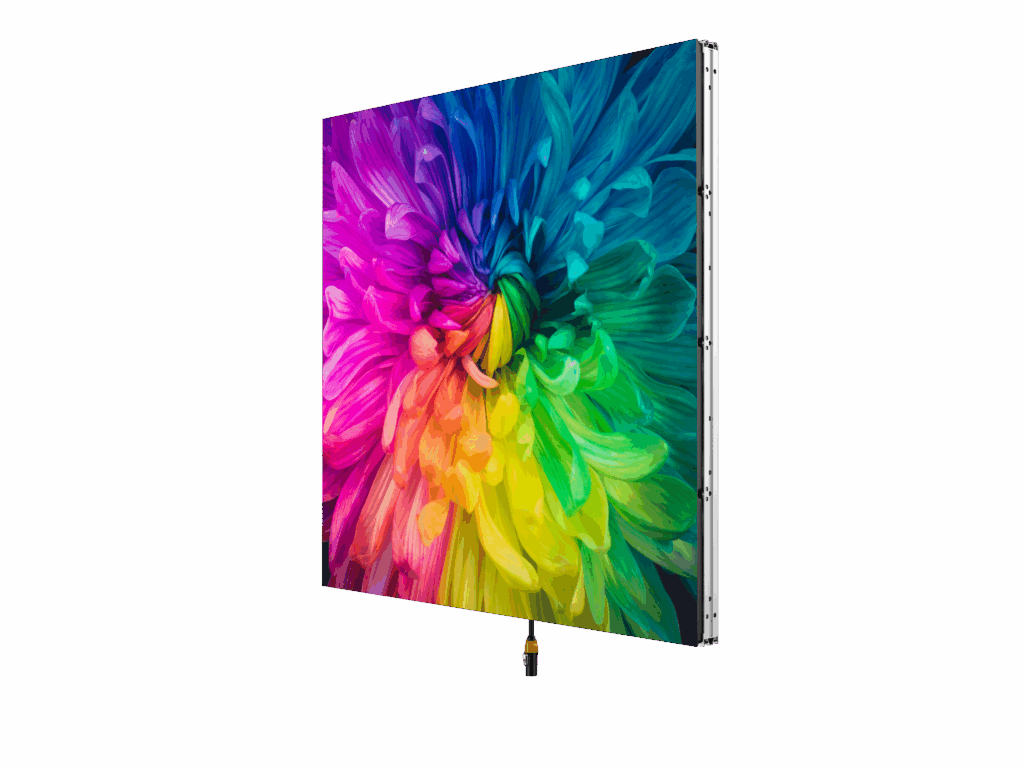

The Usurface PL1 series panel is an outdoor DIP LED module that is characterized by extreme durability and brilliant image quality even under demanding weather conditions.
Pixel Pitch:
10 mm – 16 mm
High brightness
With our Ustorm III series we achieve a contrast ratio of up to 15,000:1 depending on the brightness (up to 13,000 nits).
Lightweight and slim

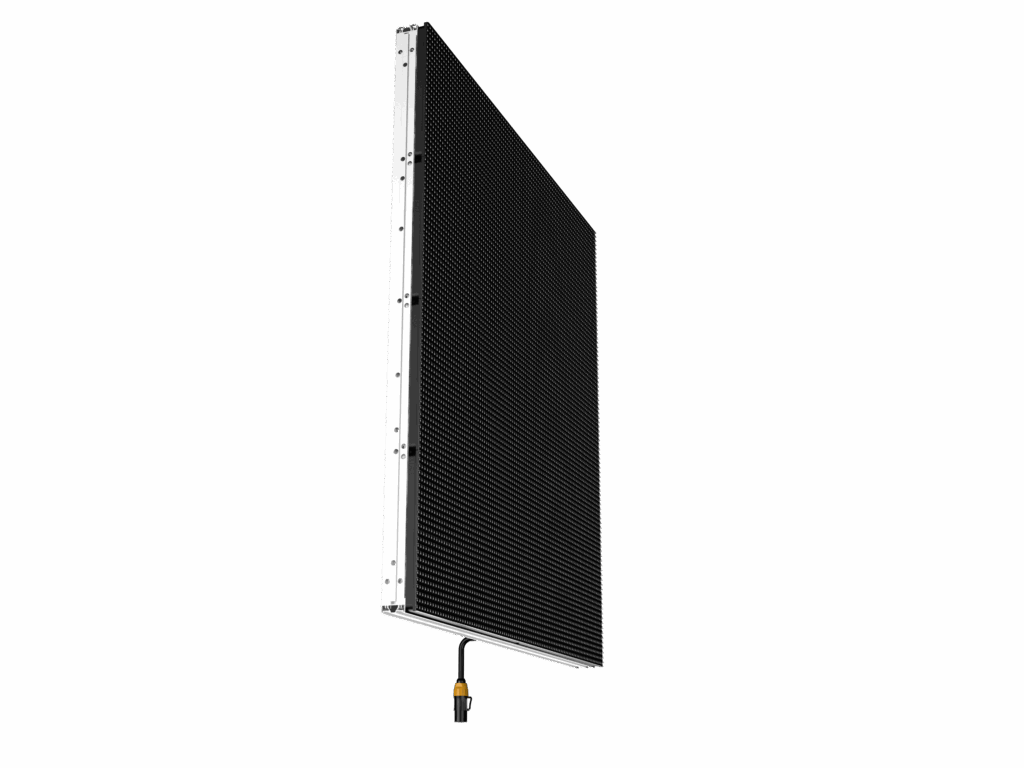

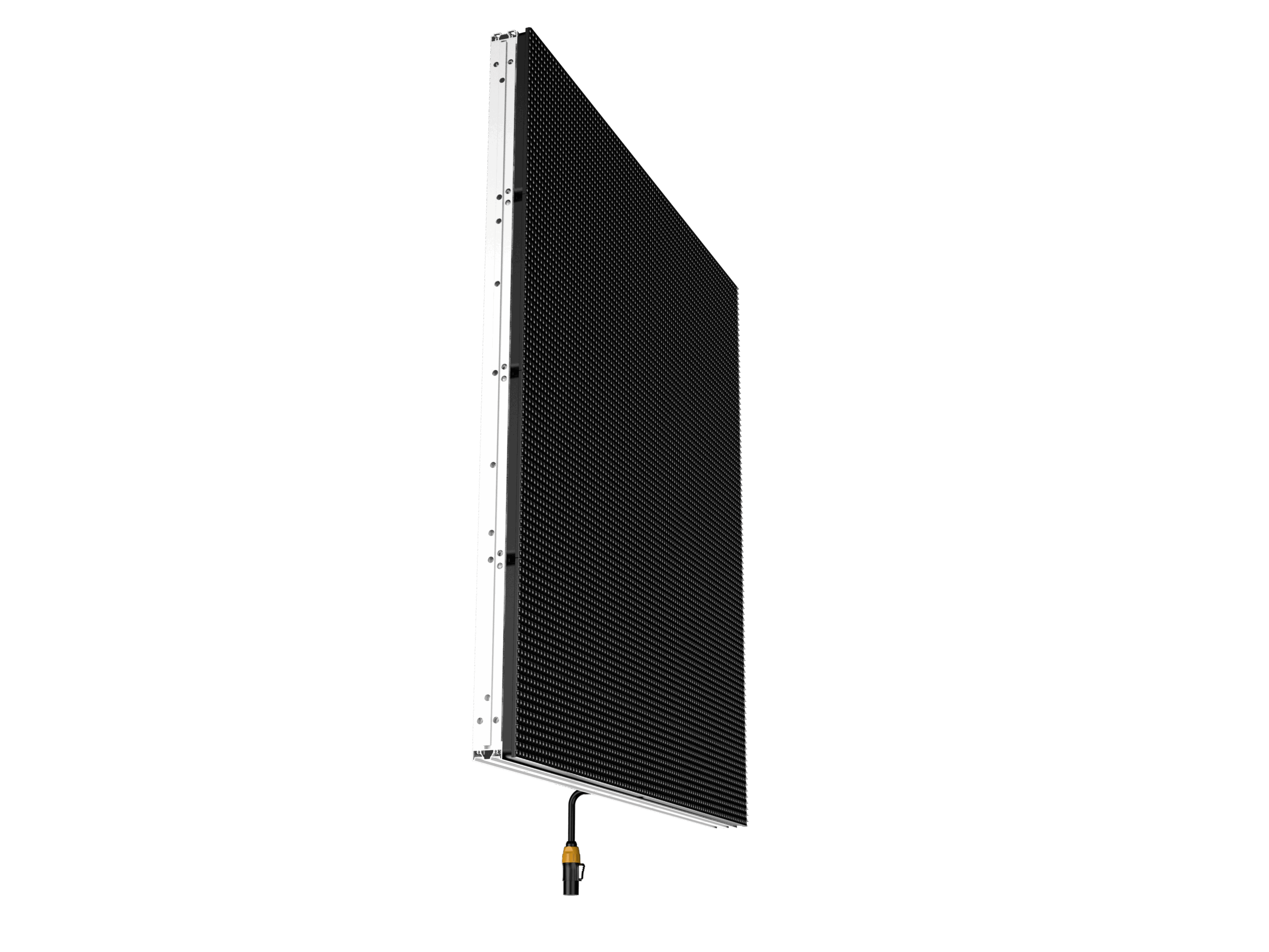

The weight is only 22 kg/m² and the thickness is 96 mm, which requires less space for installation and maintenance.
Energy-saving
Thanks to the latest technology, our Usurface III modules consume 25% less energy than conventional outdoor SMD products.
Easy handling

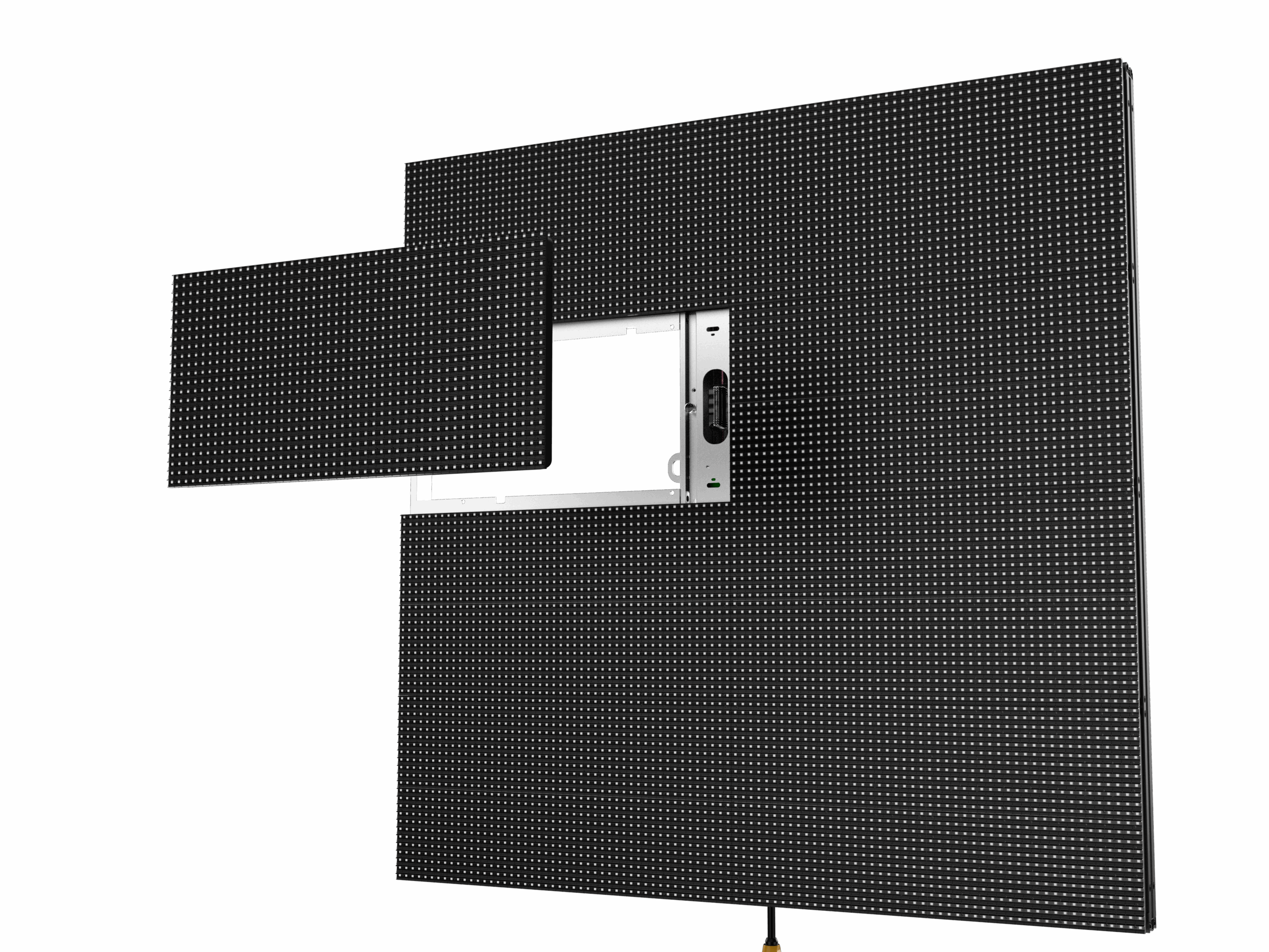

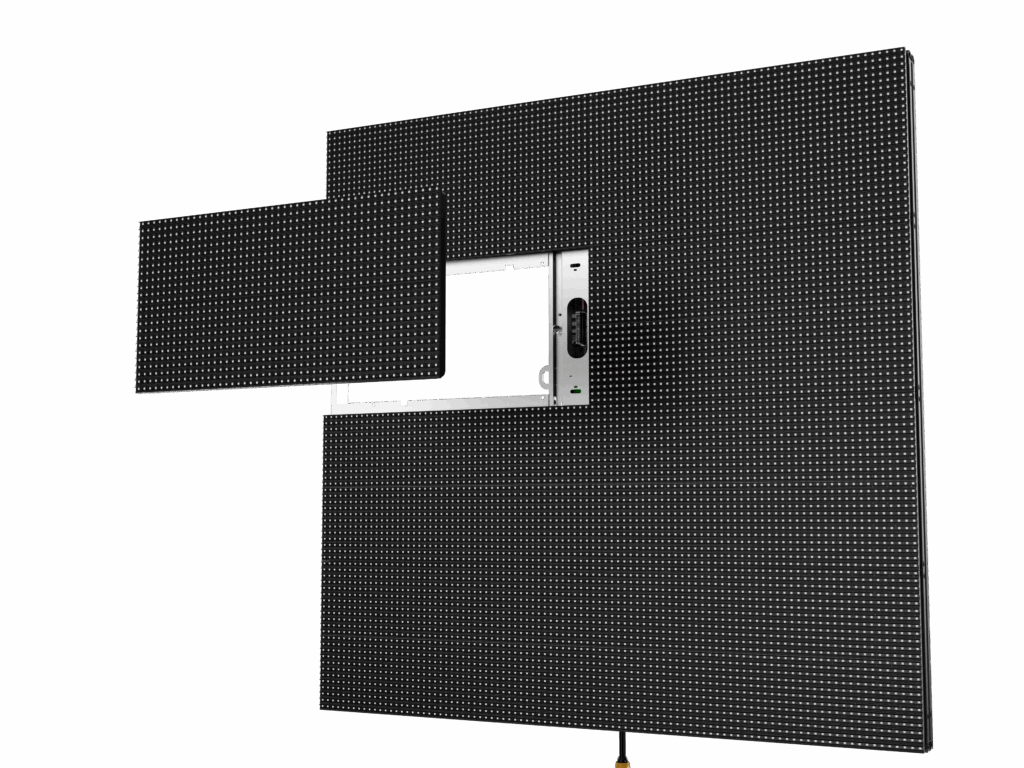

Whether front or rear service, front & rear service, fanless operation, or a modular power box – the Ustorm III series simplifies installation and service.
IP65 protection class
Waterproof module according to IP65 that can withstand even extreme weather.
Low-emission product
Our products have a positive CO2 footprint certification according to “DIN EN ISO 14064 – Product Carbon Footprint” from TÜV SÜD.
Specifications
| Usurface PL1 6 | Usurface PL1 7 | Usurface PL1 10 | |
|---|---|---|---|
| Pixel Pitch | 6.25mm | 7.81 mm | 10.41mm |
| Dimensions | 1,000x1,000x107mm | 1,000x1,000x107mm | 1,000x1,000x107mm |
| Brightness | 7,500/10,000 nits | 7,500/10,000 nits | 7,500/10,000 nits |
| Aspect ratio | 1:1 | 1:1 | 1:1 |
| Contrast | 8,000:1 /10,000:1 | 9,000:1 /11,000:1 | 10,000:1 /12,000:1 |
| LED type | SMD | SMD | SMD |
| Refresh rate | 7,680Hz | 7,680Hz | 7,680Hz |
| Service access | Front & Rear | Front & Rear | Front & Rear |
| Video frame rate | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Protection class | Front IP66 Rear IP65 | Front IP66 Rear IP65 | Front IP66 Rear IP65 |
| Resolution | 160×160 px | 128×128 px | 96×96 px |
| Viewing angle horizontal | 160° | 160° | 160° |
| Viewing angle virticle | 120° | 120° | 120° |
| Weight | 23.5kg/m2 | 23.5kg/m2 | 23.5kg/m2 |
