Udesign SV

Indoor Holographic Transparent Screen

Transparent & inversible | Ultra-thin screen | High brightness
No joint structure | Commercial TV viewing experience | AR effect

Pixel Pitch: 3.9mm – 6.25mm


pictures
features
Speacification
Downloads

    • High Transparency

    ≥92% transparency
    Full screen LED lights
    No dark display area, better viewing experience

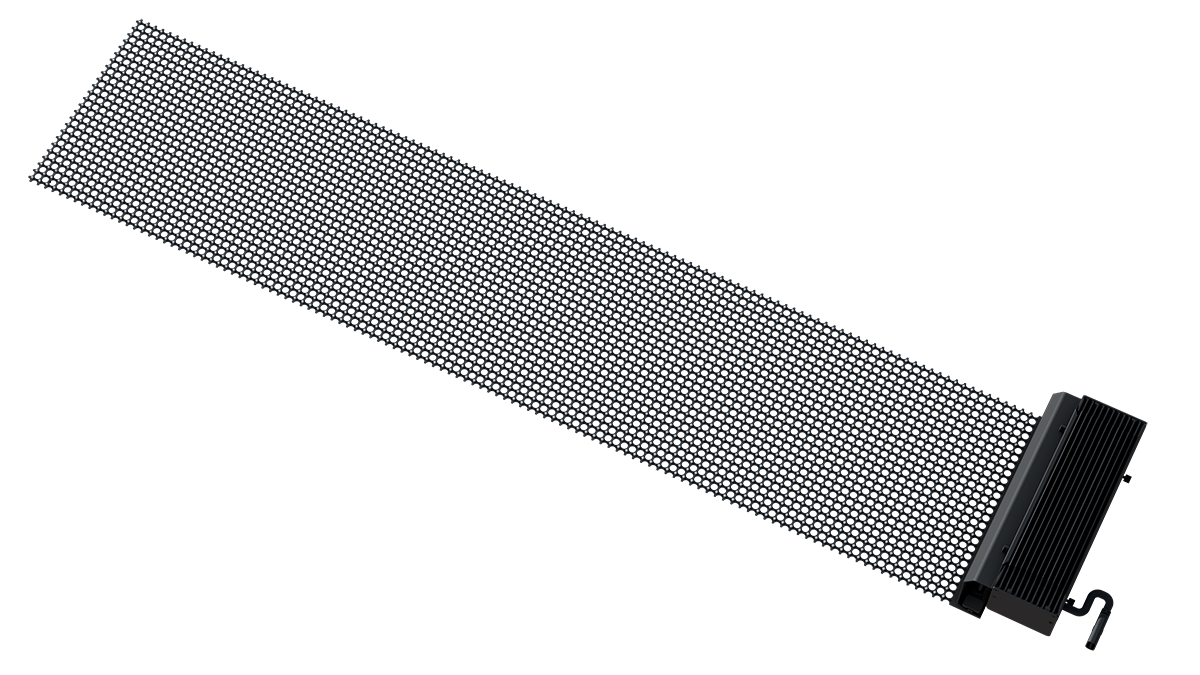

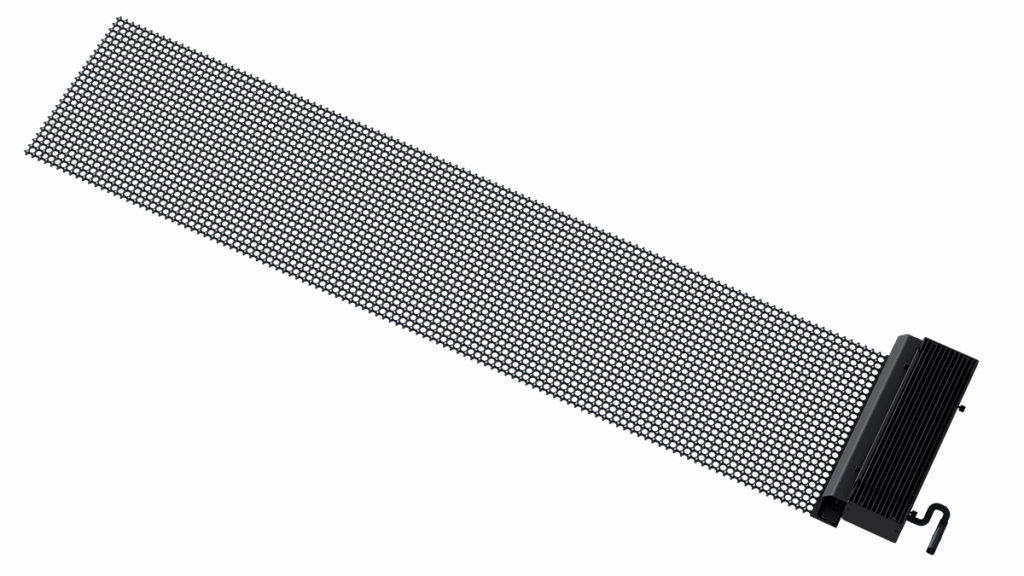

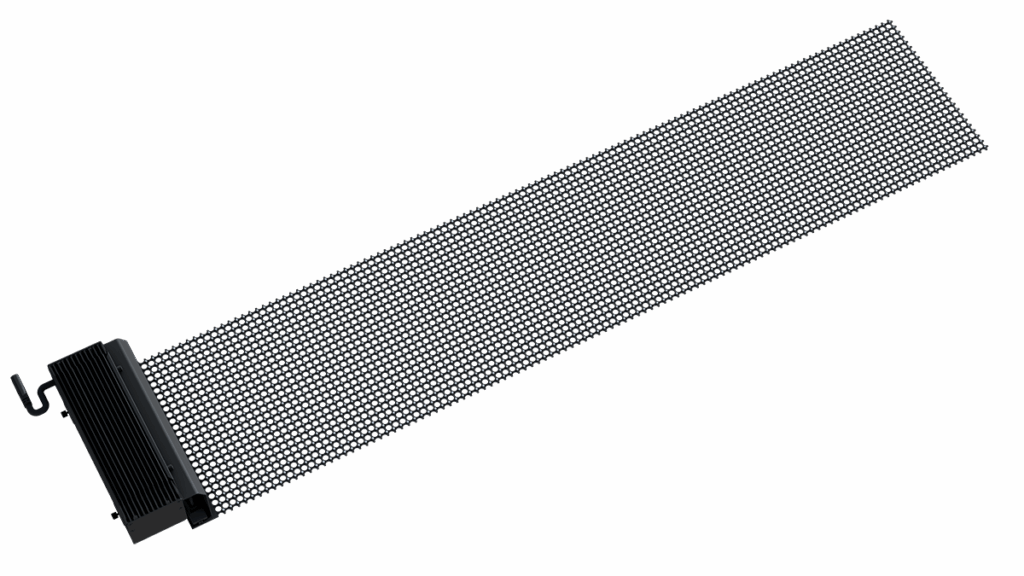

    Ultra-thin & Slim

    Weight is only 6kg/㎡
    Module thickness is only 2mm
    Easy Instllation & maintenance

    Integrated LED Design

    LED lights + IC drive，
    Breakpoint continuation
    Worry-free operation experience

    Infinite Creativity

    3D suspended images

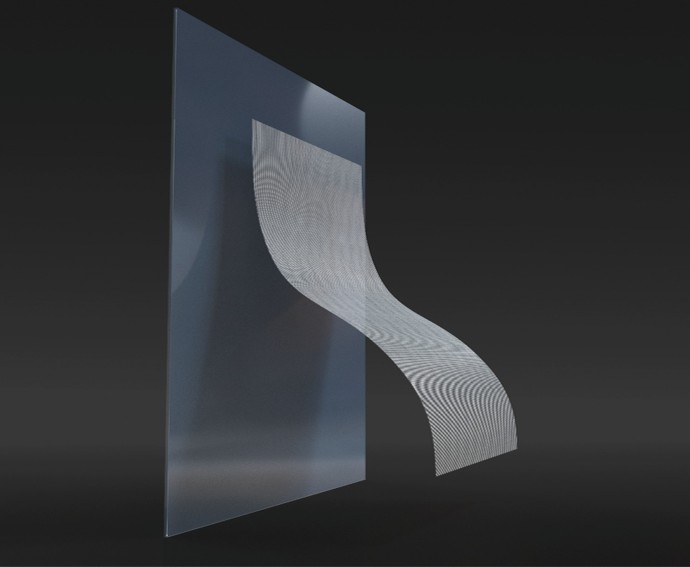

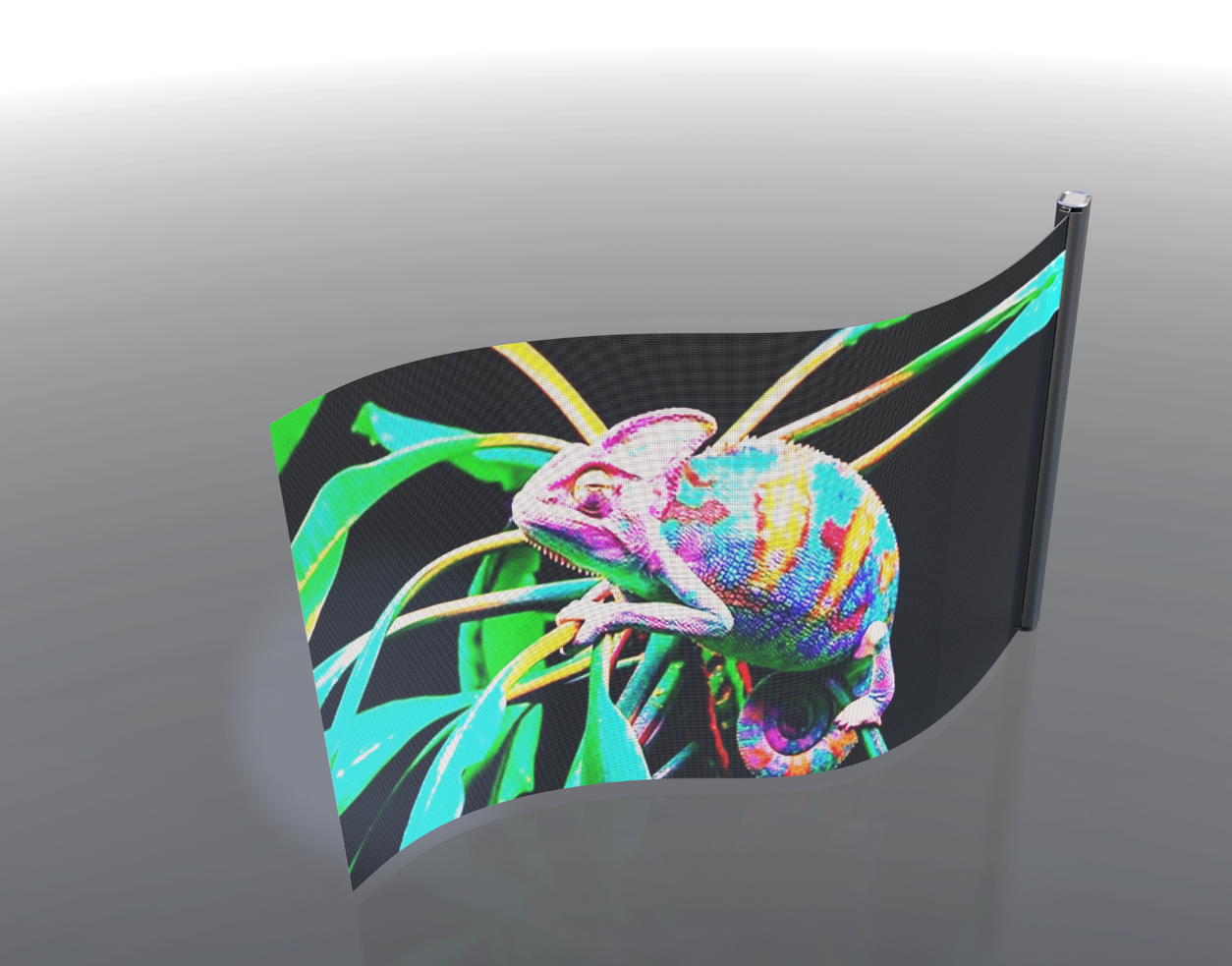

    Module can be bending & cut
    Module support customization

    Specifications

    Udesign SV3.9Udesign SV6.25
    Pixel Pitch3.9mm6.25 mm
    Dimensions250x1000/250x1172/250x1469mm250x1000/250x1175/250x1475mm
    Brightness2,000/2,500 nits (Black lamp)
    3,000/4,500 nits (White lamp)    		4,500/5,000 nits
    Aspect ratioDepend on cabinetDepend on cabinet
    LED typeSMD Integrated LED & ICSMD Integrated LED & IC
    Refresh rate3,840Hz3,840Hz
    Service accessFront Front
    Video frame rate60~120 Hz60~120 Hz
    Protection classIP20IP20
    Resolution64x256/64x300/64x376 px40x160/40x188/40x236 px
    Weight6kg/m26kg/m2

    Downloads

    Udesign SV-Leaflet 2025.04Download
    Unilumin Udesign SV3.9 Specification For Approval V1.1 2025.05.05 (English)Download
    Unilumin Udesign SV6.25 Specification For Approval V1.1 2025.05.05 (English)Download
    Udesign SV Holographic Invisible Screen V1.1 202504Download
