ULW Ⅲ Pro MIP
The ULW Ⅲ Pro MIP series is the price-performance winner in the middle class and impresses as a fully automated indoor LED wall.
Pixel Pitch:
0.93mm – 1.25mm – 1.5mm
Intelligent monitoring
The ULW III-PRO series offers intelligent signal monitoring, integrated voltage protection and temperature monitoring for maximum safety and reliability.
Light and slim
With a weight of 5 kg per module and a housing thickness of a maximum of 45 mm, it reduces the distance between the screen and the wall to less than 90 mm and thus blends seamlessly into the surroundings.
Automated manufacturing
The improved production accuracy and product quality as well as the increased production efficiency ensure faster delivery times.

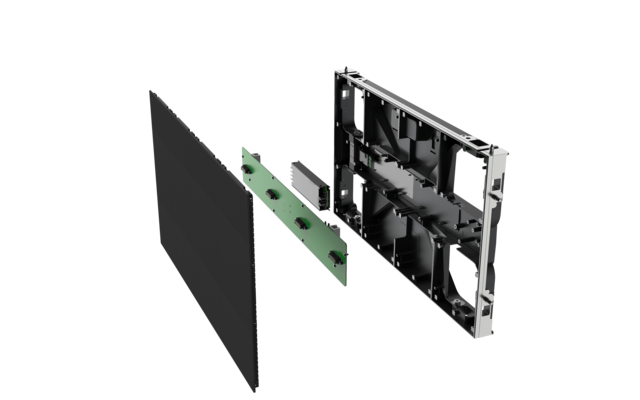

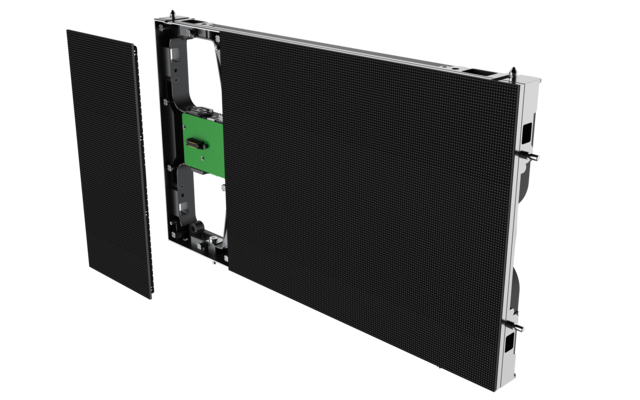

Easy maintenance
Modules, power supplies and internal cables can be replaced from the front. Front maintenance saves time and maintenance costs.
Low-emission product
Our products have a positive CO2 footprint certification according to “DIN EN ISO 14064 – Product Carbon Footprint” from TÜV SÜD.
Specifications
| ULW III 0.9 Pro MIP | ULW III 1.2 Pro MIP | ULW III 1.5 Pro MIP | |
|---|---|---|---|
| Pixel Pitch | 0.93mm | 1.25 mm | 1.5 mm |
| Dimensions | 600mm×337.5mm×47.8mm | 600 x 337.5 x 47.8 mm | 600 x 337.5 x 47.8 mm |
| Brightness | 600 /800 nits | 600 / 800nits | 600 / 800nits |
| Aspect ratio | 16:9 | 16:9 | 16:9 |
| Contrast | 10,000:1/12,000:1 | 10,000:1/12,000:1 | 10,000:1/12,000:1 |
| LED type | MIP | MIP | MIP |
| Refresh rate | 3,840Hz | 3,840Hz | 3,840Hz |
| Service access | Front & Back | Front & Back | Front & Back |
| Video frame rate | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Protection class | IP30 | IP30 | IP30 |
| Resolution | 640x360 px | 480x270 px | 384x216 px |
| Viewing angle horizontal | 170° | 170° | 170° |
| Viewing angle virticle | 165° | 165° | 165° |
| Weight | 5kg/panel | 5kg/panel | 5kg/panel |
