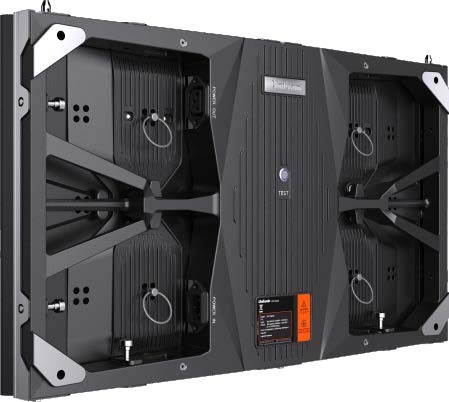

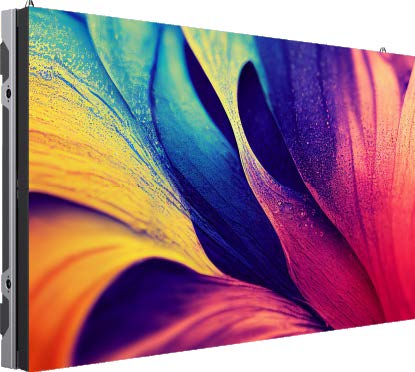

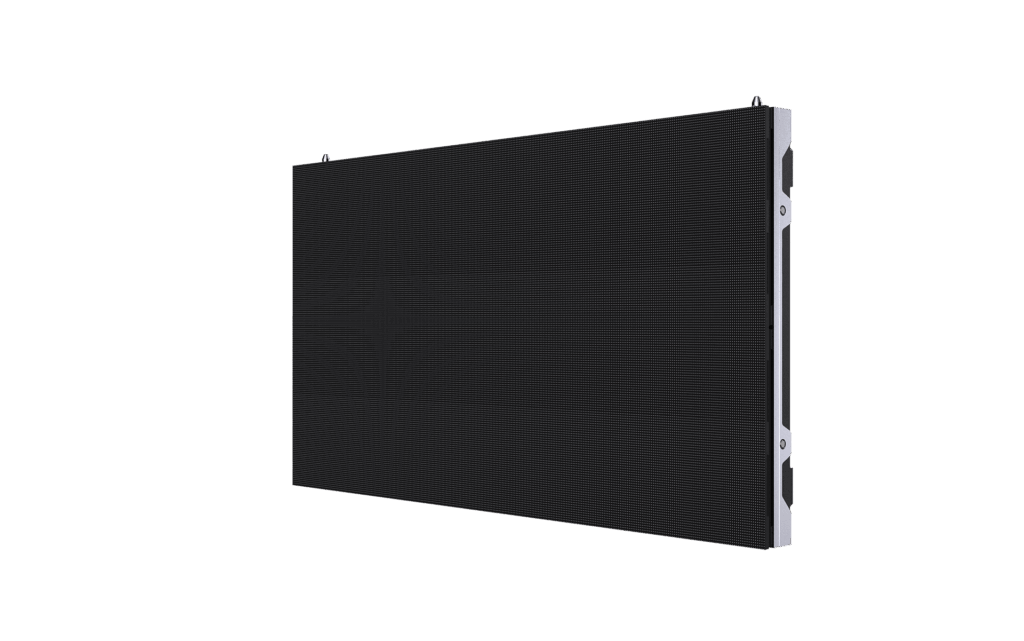

Umicro

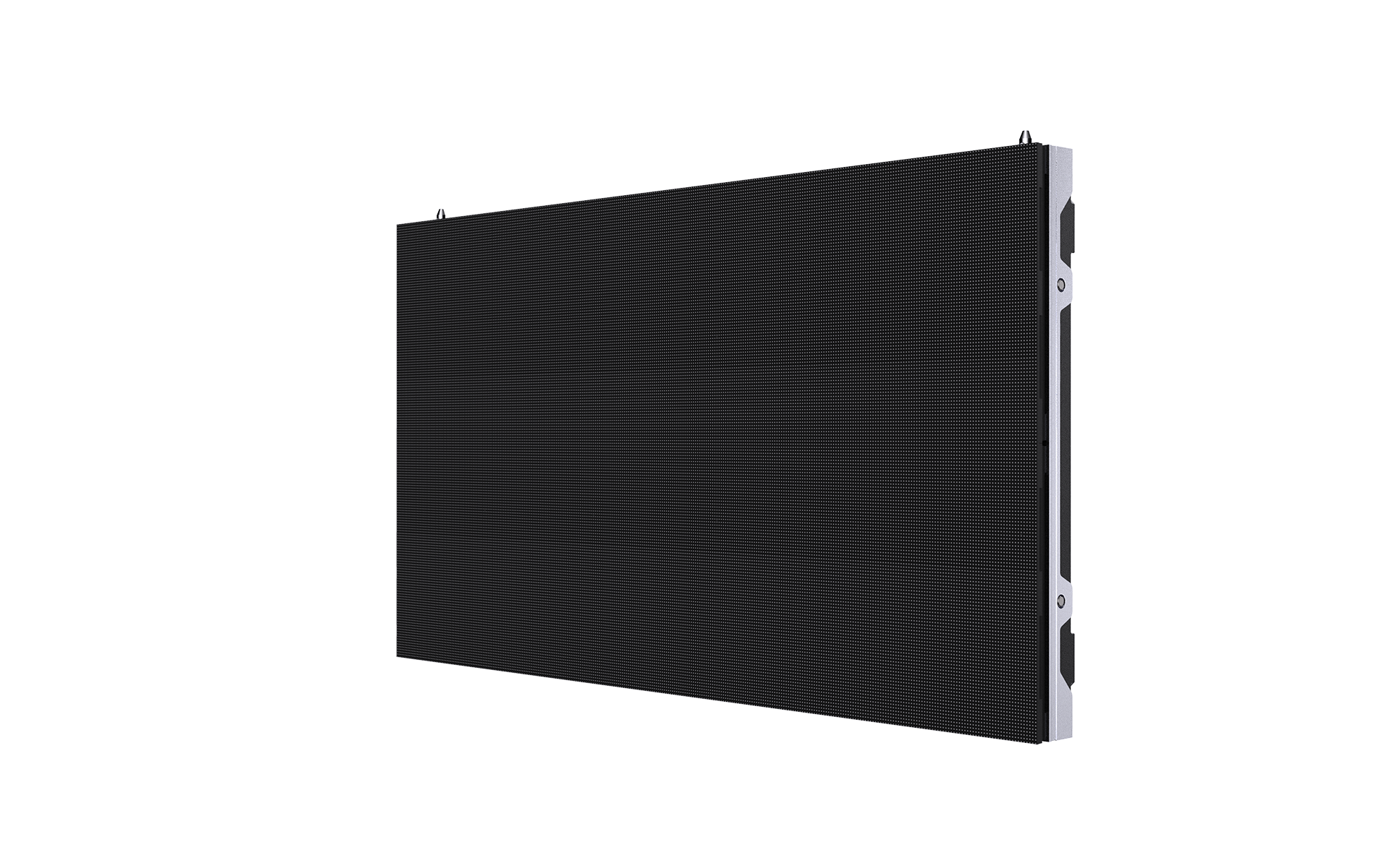

The Umicro is an indoor LED module (COB) with Mini/Micro LED and a pixel pitch of up to 0.6 mm, which impresses with its compact design and outstanding image quality.
Pixel Pitch:
0,6 mm – 0,7 mm – 0,9 mm – 1,2 mm – 1,5 mm
High contrast
Thanks to our EBL+ technology and multi-layer optical processing technology, we achieve a contrast of up to 30,000:1, depending on brightness.
Eye protection
Our Umicro & Umini III series has been awarded by TÜV and protects your eyes (blue light).
Energy saving
Using the latest Common Cathode & RGB Flip Chip technology, our modules consume up to 60% less energy.
Ultimate colour quality
The high contrast and low reflectivity ensure a clear image.
Energy saving
Thanks to the latest common cathode technology, our UTV SC modules consume less energy than conventional products.
Ultra slim and light

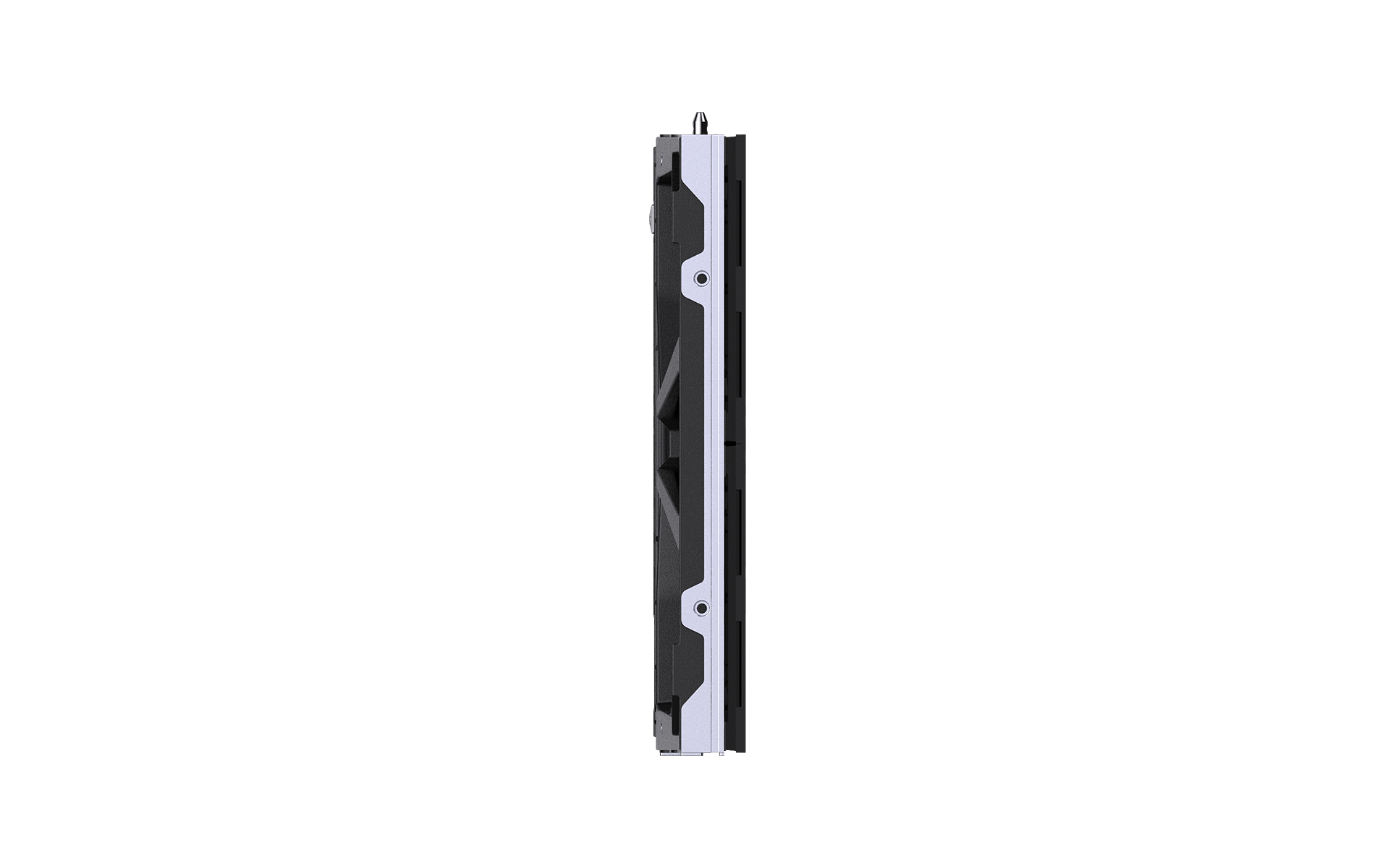

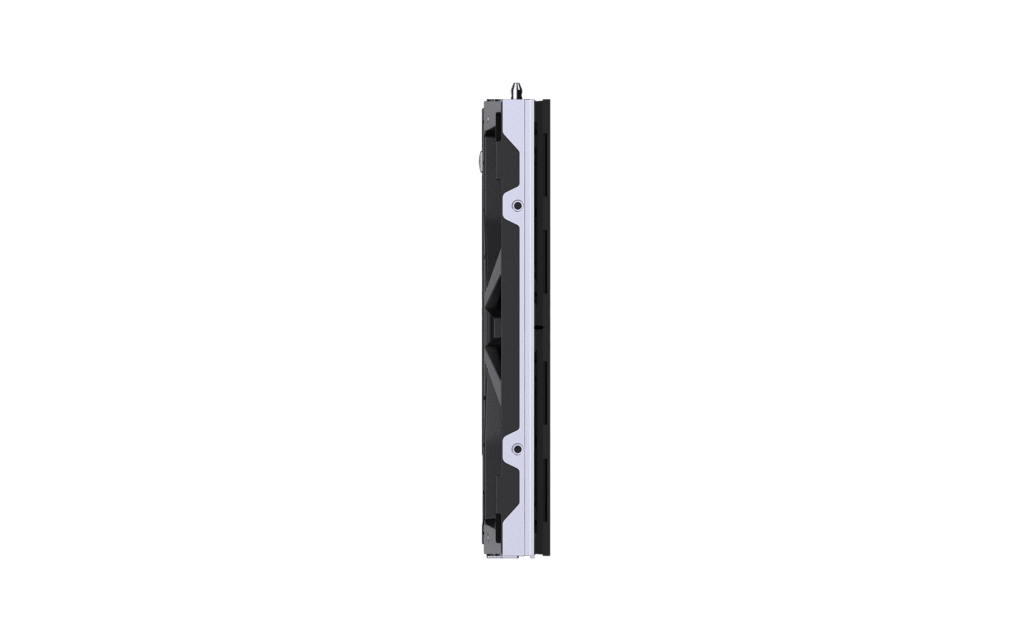

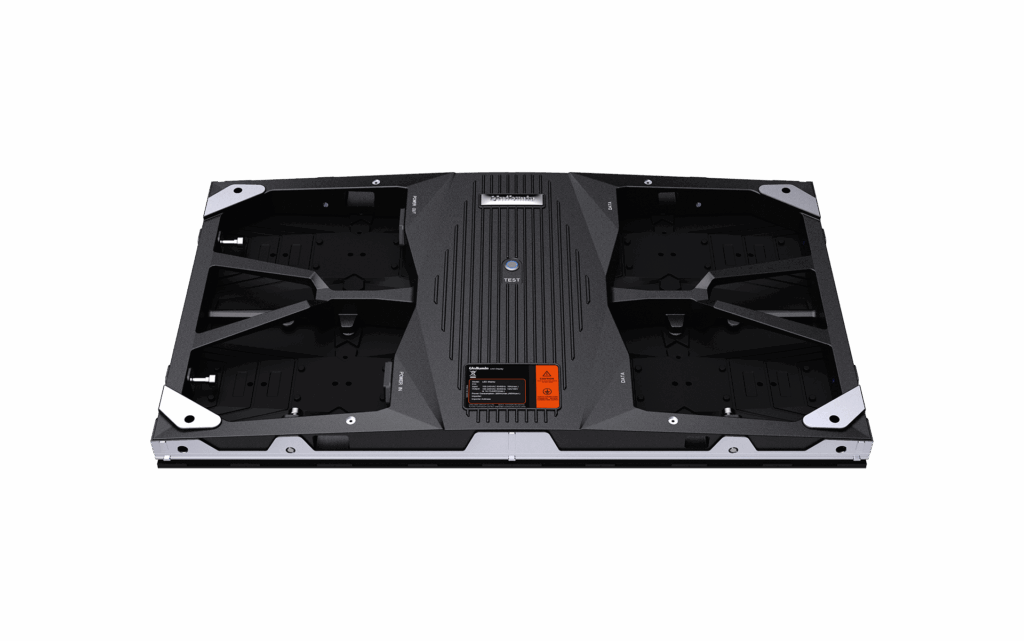

The Umicro & Umini III series is only 40 mm thick and weighs only 6 kg/cabinet.
Low heat emission
Even when in continuous operation, our LED walls remain “cool” thanks to the latest technology and unique heat-dissipation technology.
Low-emission product
Our products have a positive CO2 footprint certification according to “DIN EN ISO 14064 – Product Carbon Footprint” from TÜV SÜD.
Specifications
| Umini Ⅲ 0.9 | Umini Ⅲ 1.1 | Umini Ⅲ 1.2 | Umini Ⅲ 1.5 | |
|---|---|---|---|---|
| Pixel Pitch | 0.9375 mm | 0,78125 mm | 1.25mm | 1.56mm |
| Dimensions | 600 x 337.5 x 40 mm | 600 x 337.5 x 40 mm | 600 x 337.5 x 40 mm | 600 x 337.5 x 40 mm |
| Brightness | 600 cd/m² / 1,200 cd/m² | 600 cd/m² / 1,200 cd/m² | 600 cd/m² / 1,200 cd/m² | 600 cd/m² / 1,200 cd/m² |
| Aspect ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Contrast | 15,000:1 / 20,000:1 | 15,000:1 / 20,000:1 | 15,000:1 / 20,000:1 | 15,000:1 / 20,000:1 |
| LED type | Mini LED (Flip Chip COB) | Mini LED (Flip Chip COB) | Mini LED (Flip Chip COB) | Mini LED (Flip Chip COB) |
| Refresh rate | 3,840 Hz | 3,840 Hz | 3,840 Hz | 3,840 Hz |

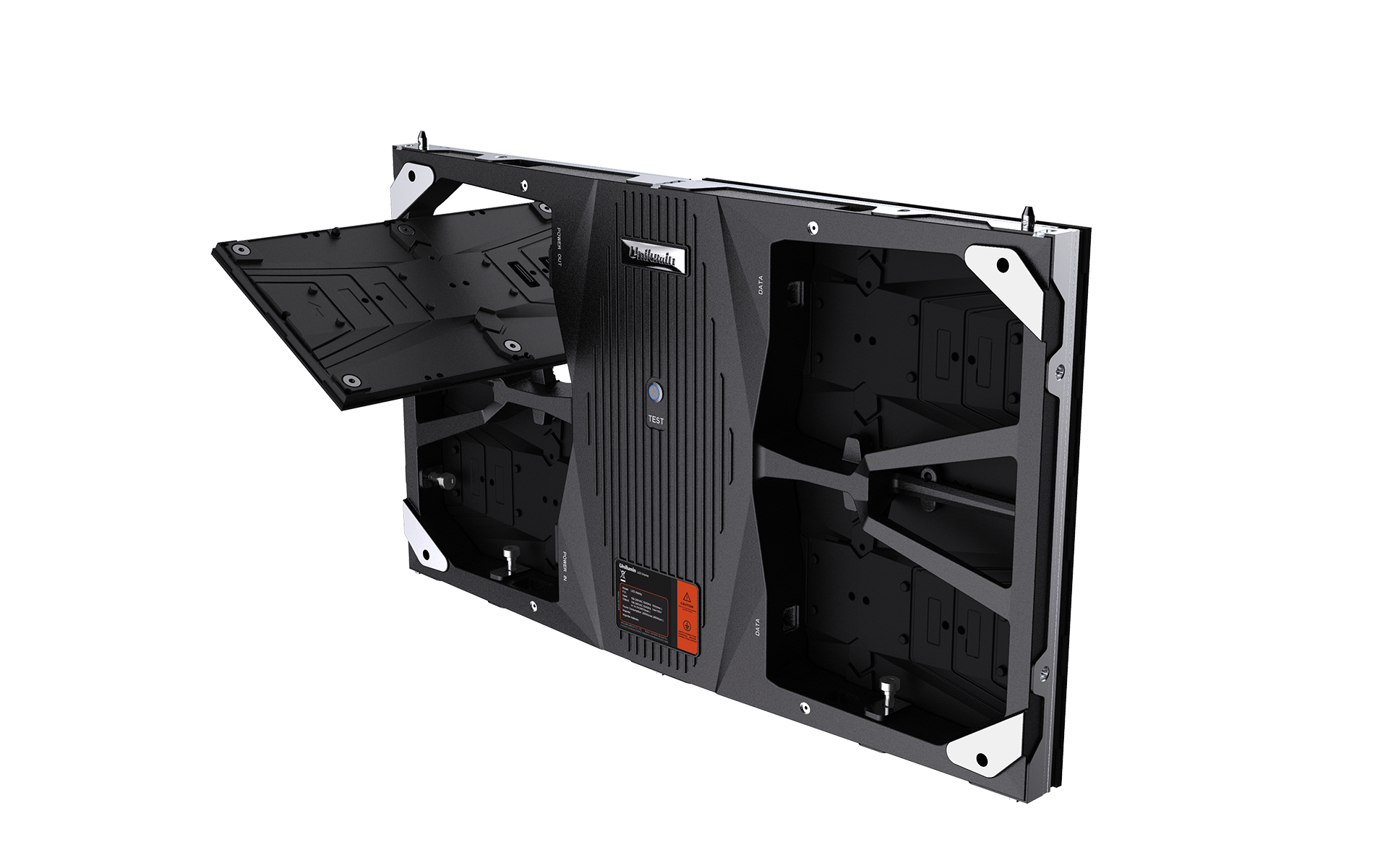

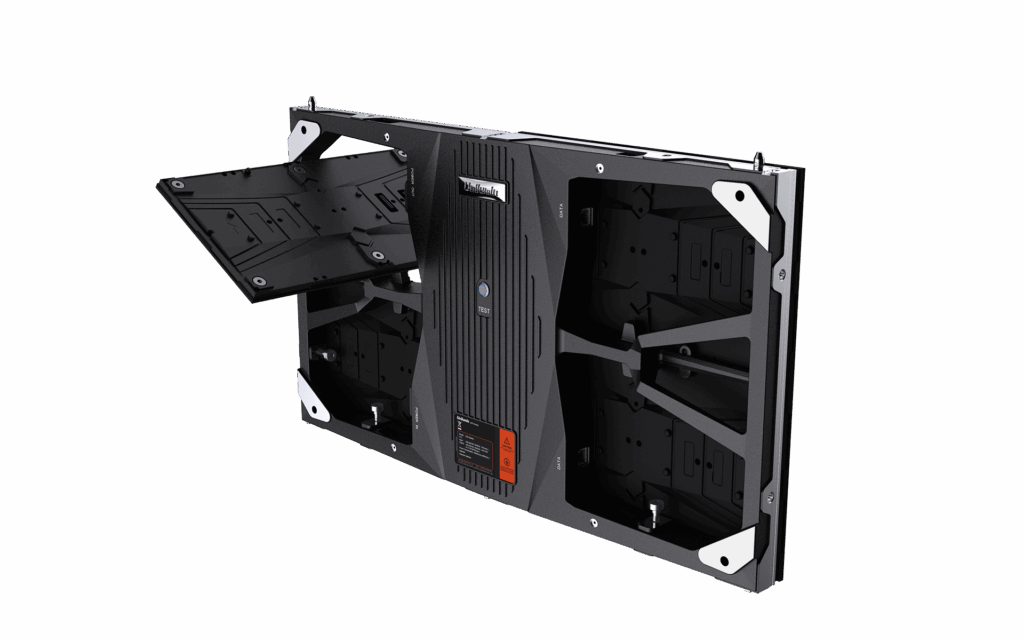

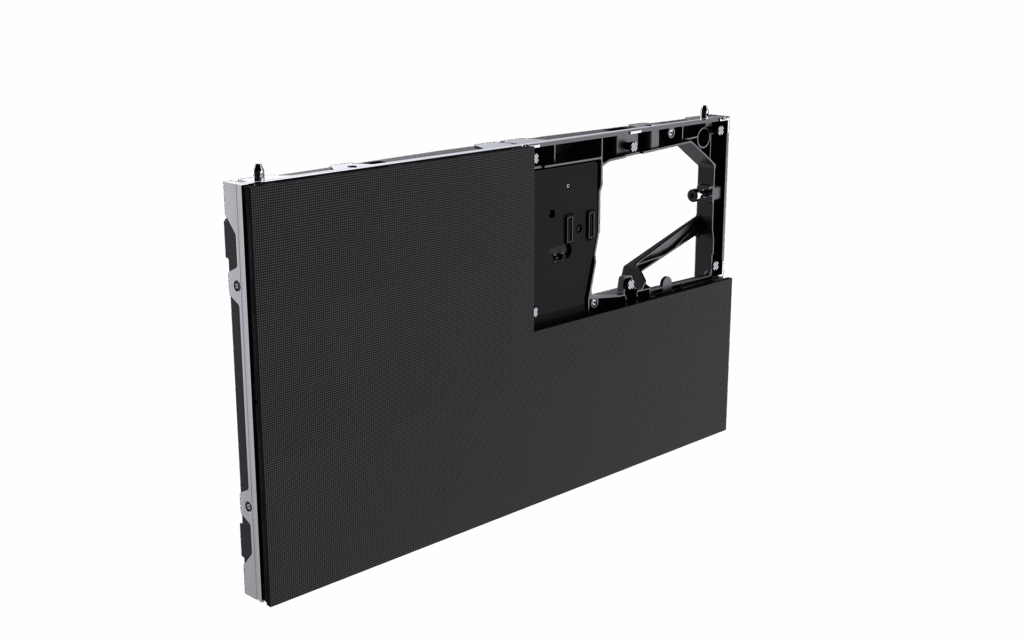

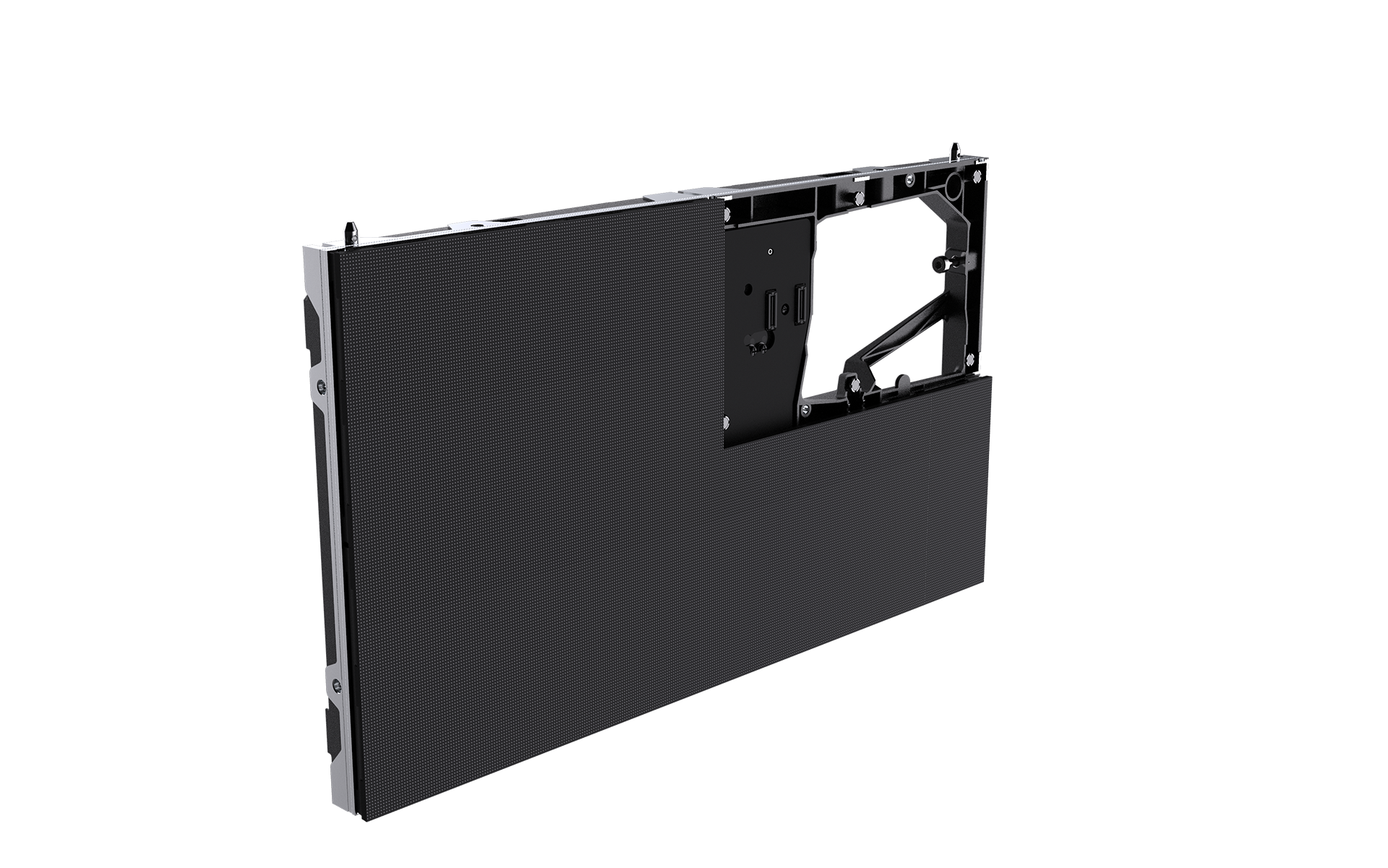

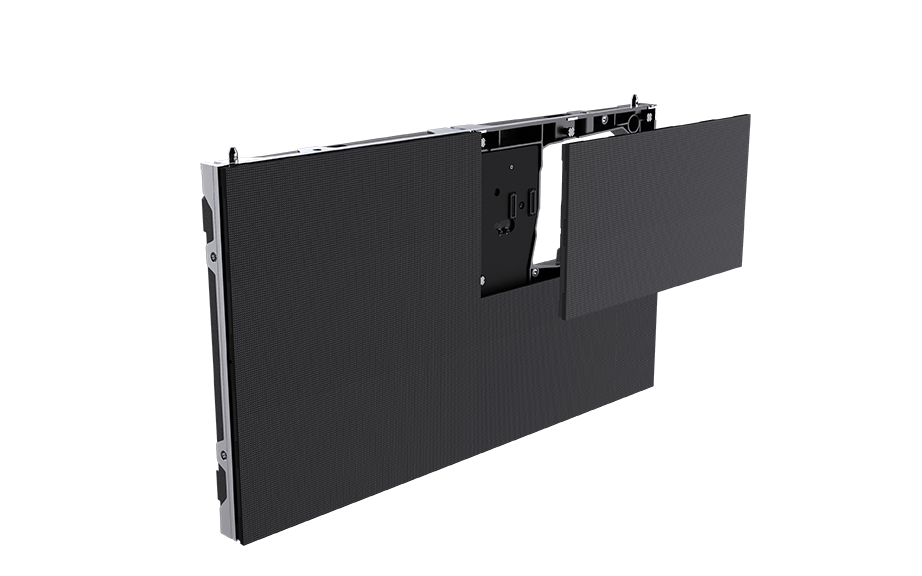

| Service access | Front | Front | Front | Front |
| Video frame rate | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Protection class | IP50 | IP50 | IP50 | IP50 |
| Resolution | 640x360 px | 512x288 px | 480x270 px | 384x216 px |
| Viewing angle horizontal | 180° | 180° | 180° | 180° |
| Viewing angle virticle | 180° | 180° | 180° | 180° |
| Weight | 6 kg | 6 kg | 6 kg | 6 kg |
