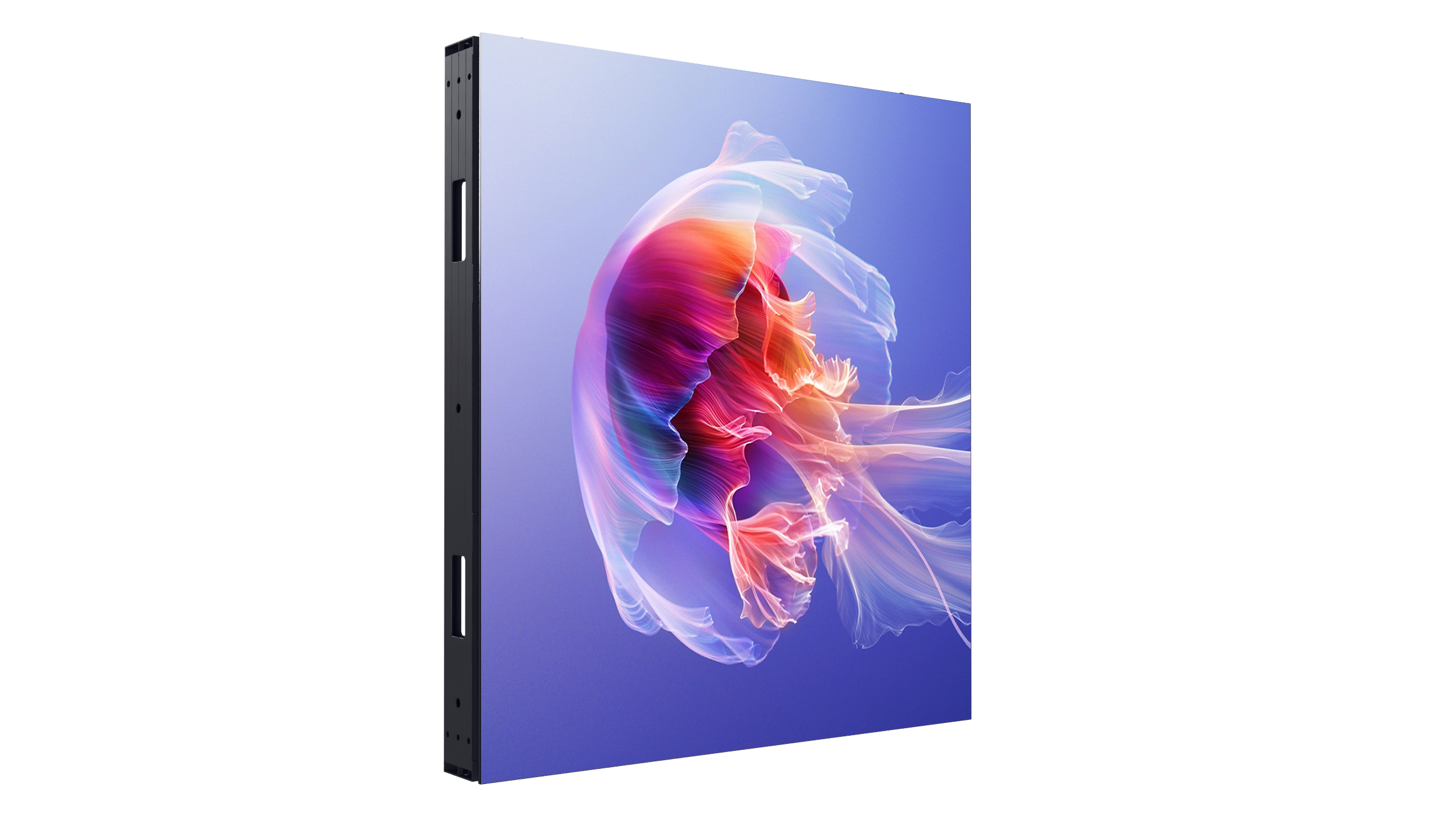

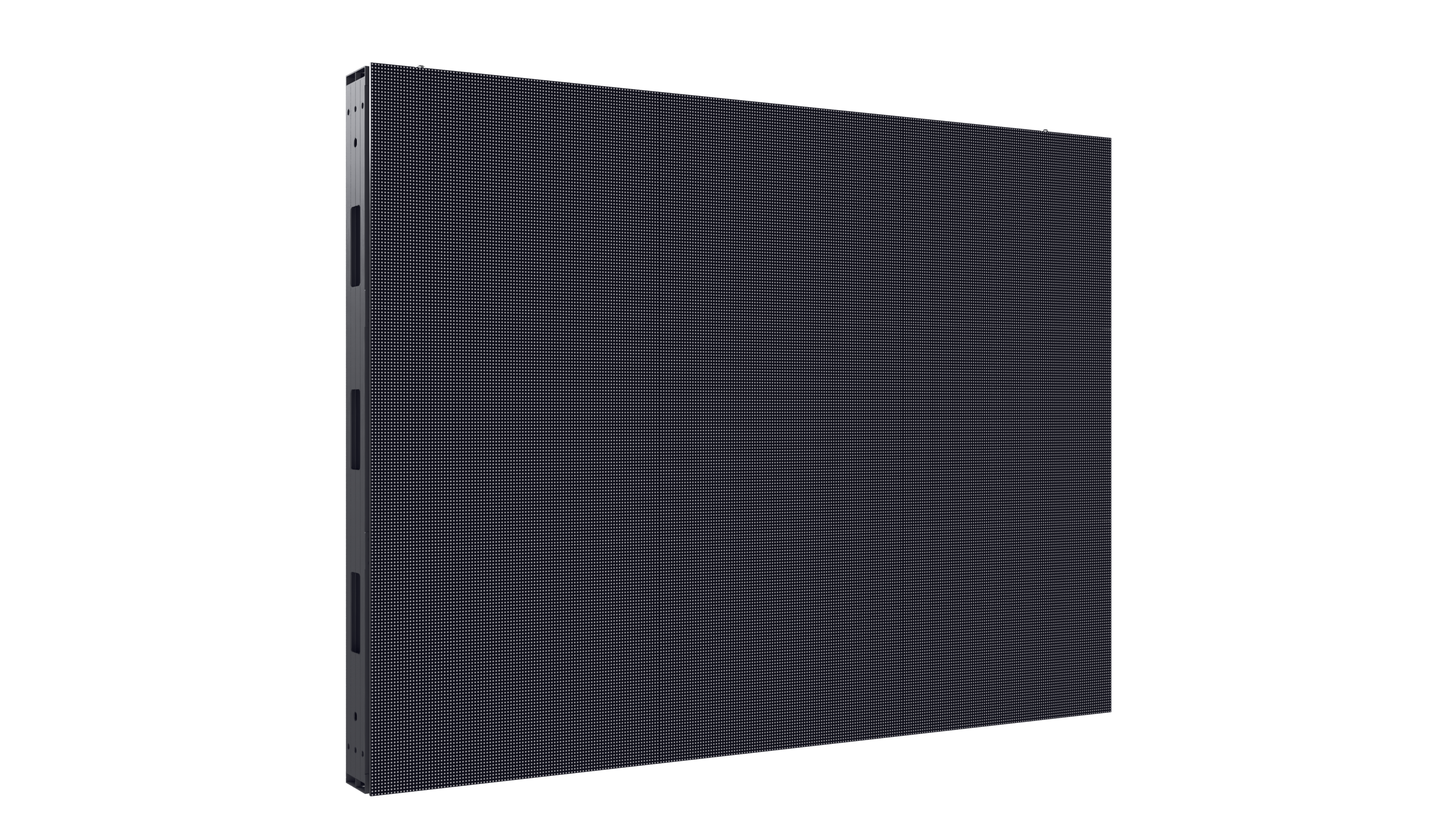

Usurface III Pro

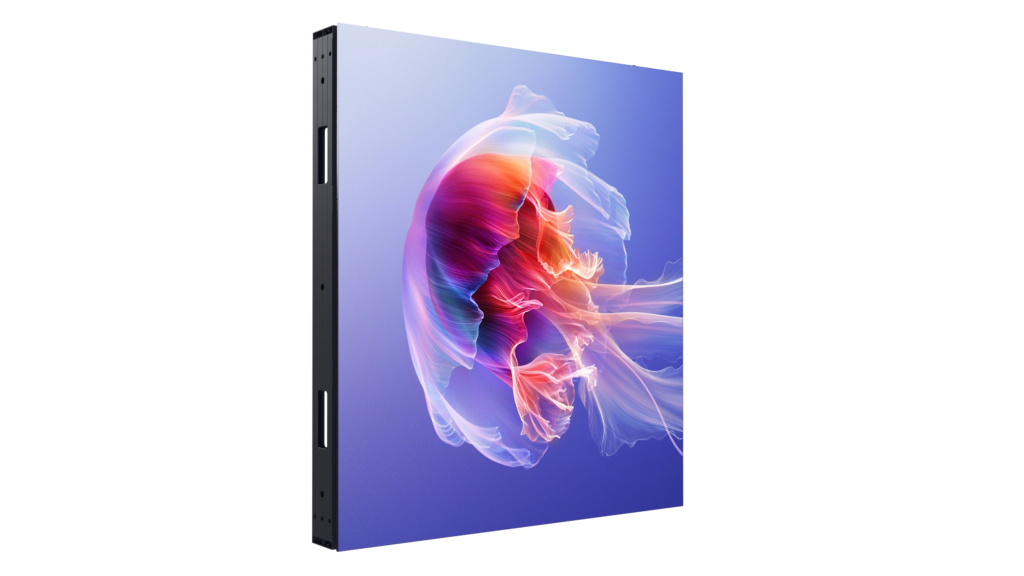

The Usurface III Pro series panel is an outdoor high-end module that impresses with excellent image quality and high resistance even in adverse weather conditions.

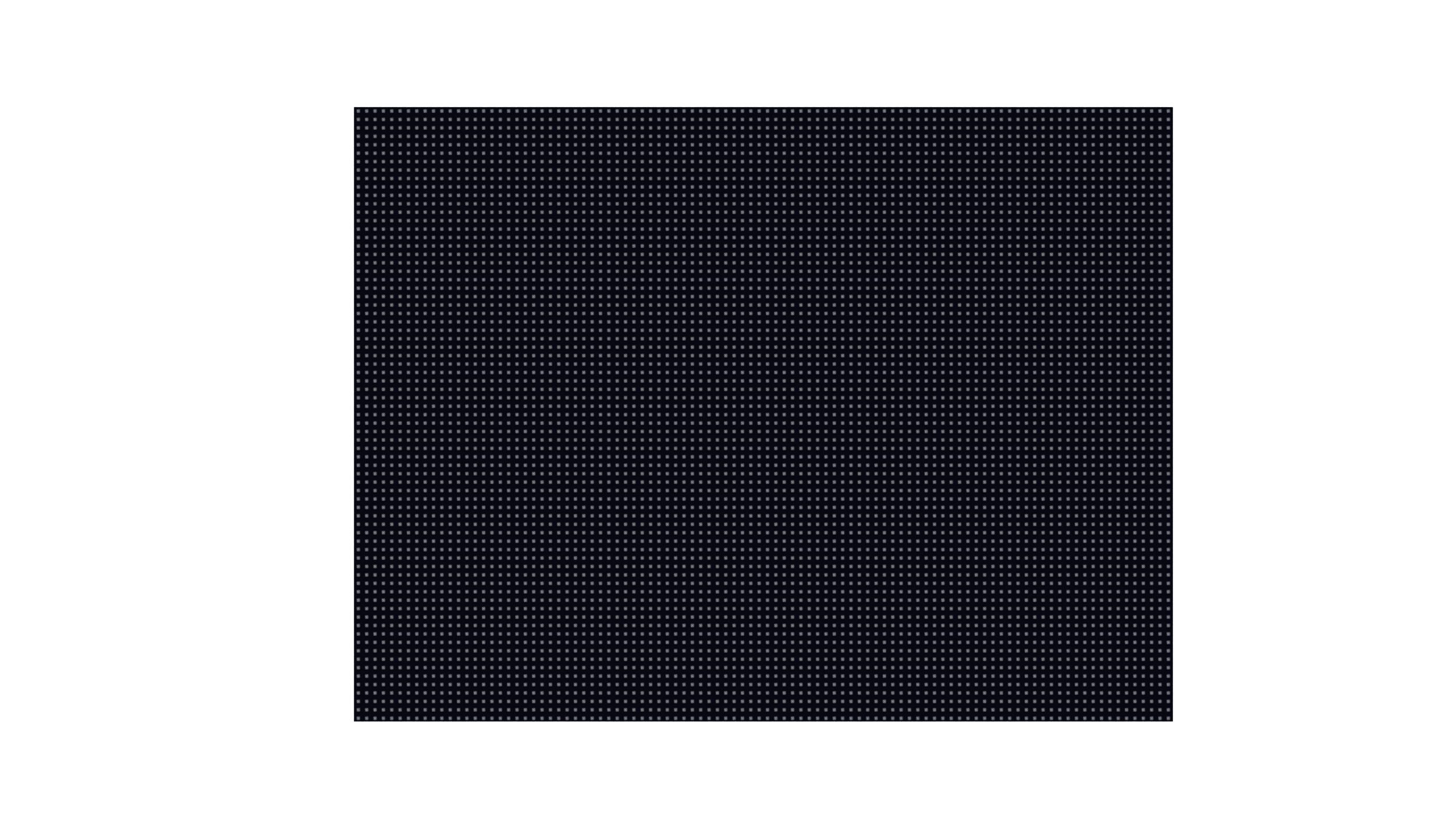

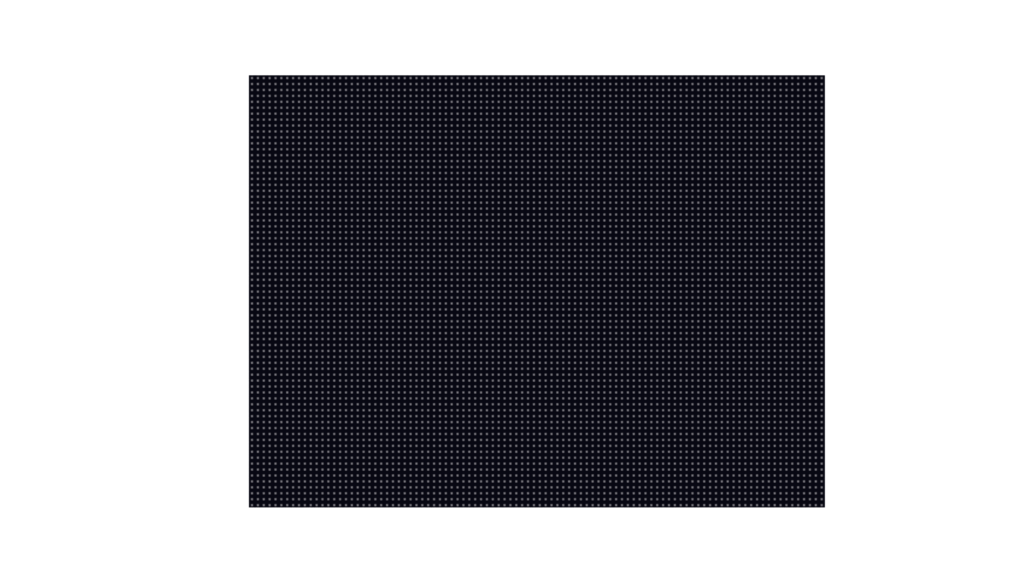

Pixel Pitch:
6,6 mm – 8 mm – 10 mm – 16 mm
High brightness
With our Usurface III series, we achieve a contrast ratio of up to 12,000:1, depending on the brightness (up to 10,000 nits).

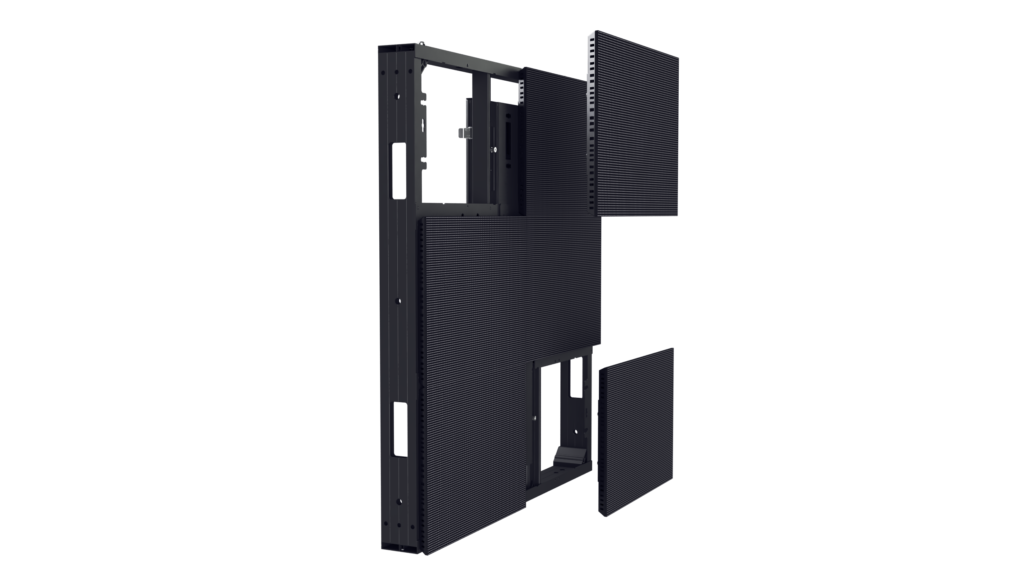

Lightweight and slim
Weighing only 23 kg/m² and 96 mm thick, it requires less space for installation and maintenance.
Energy-saving
Thanks to the latest technology, our Usurface III modules consume 22% less energy than conventional outdoor SMD products.

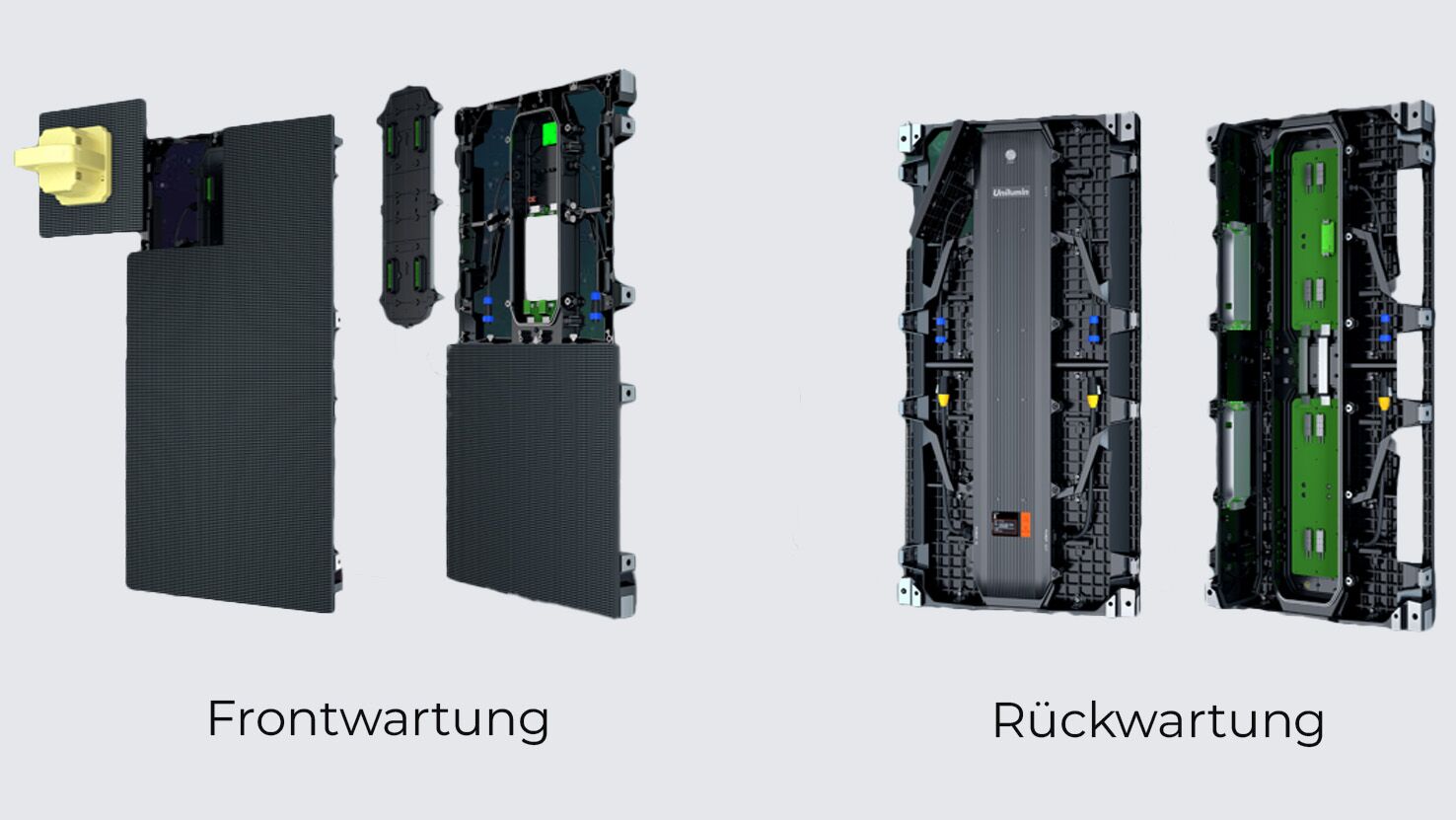

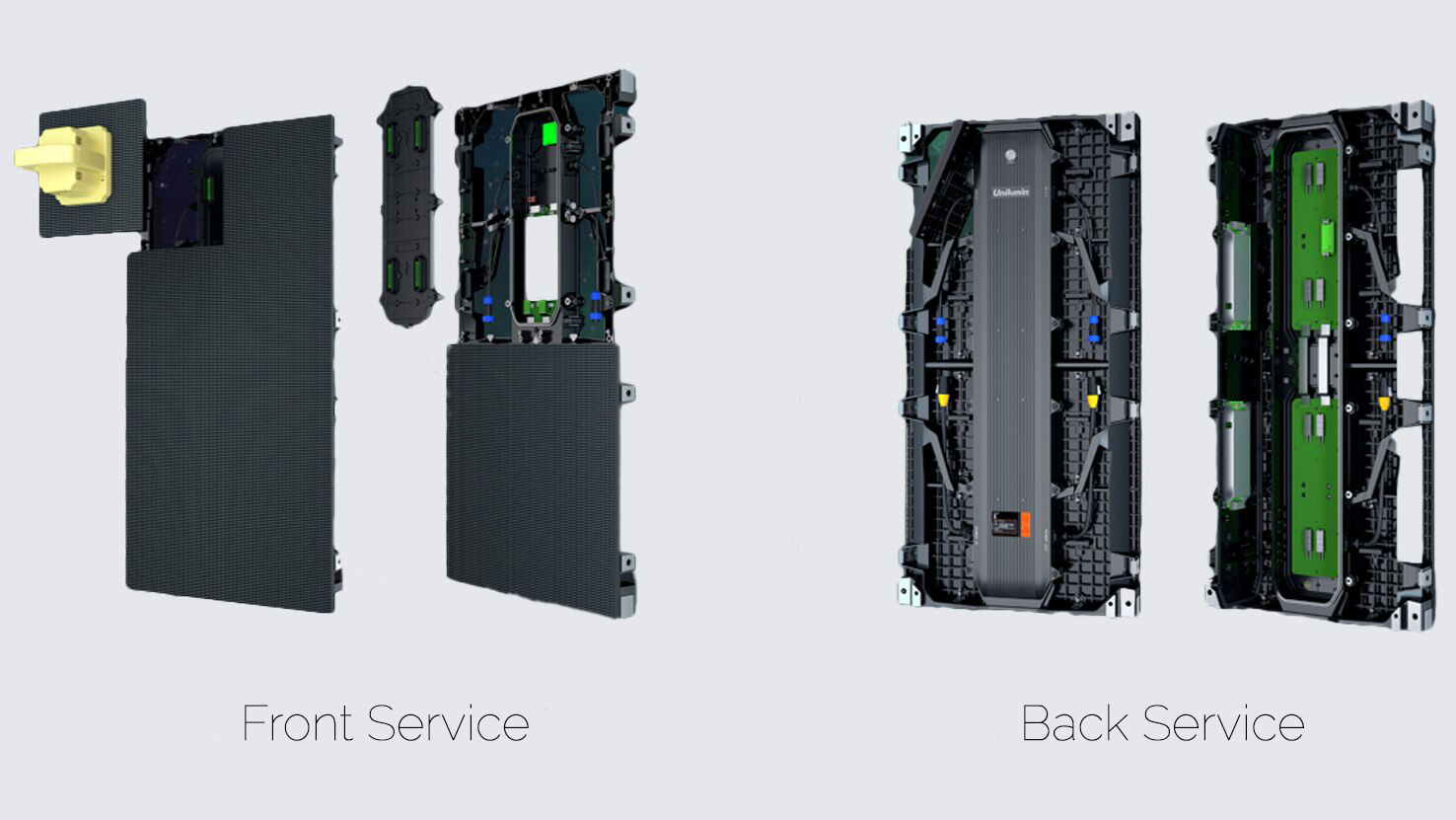

Easy handling

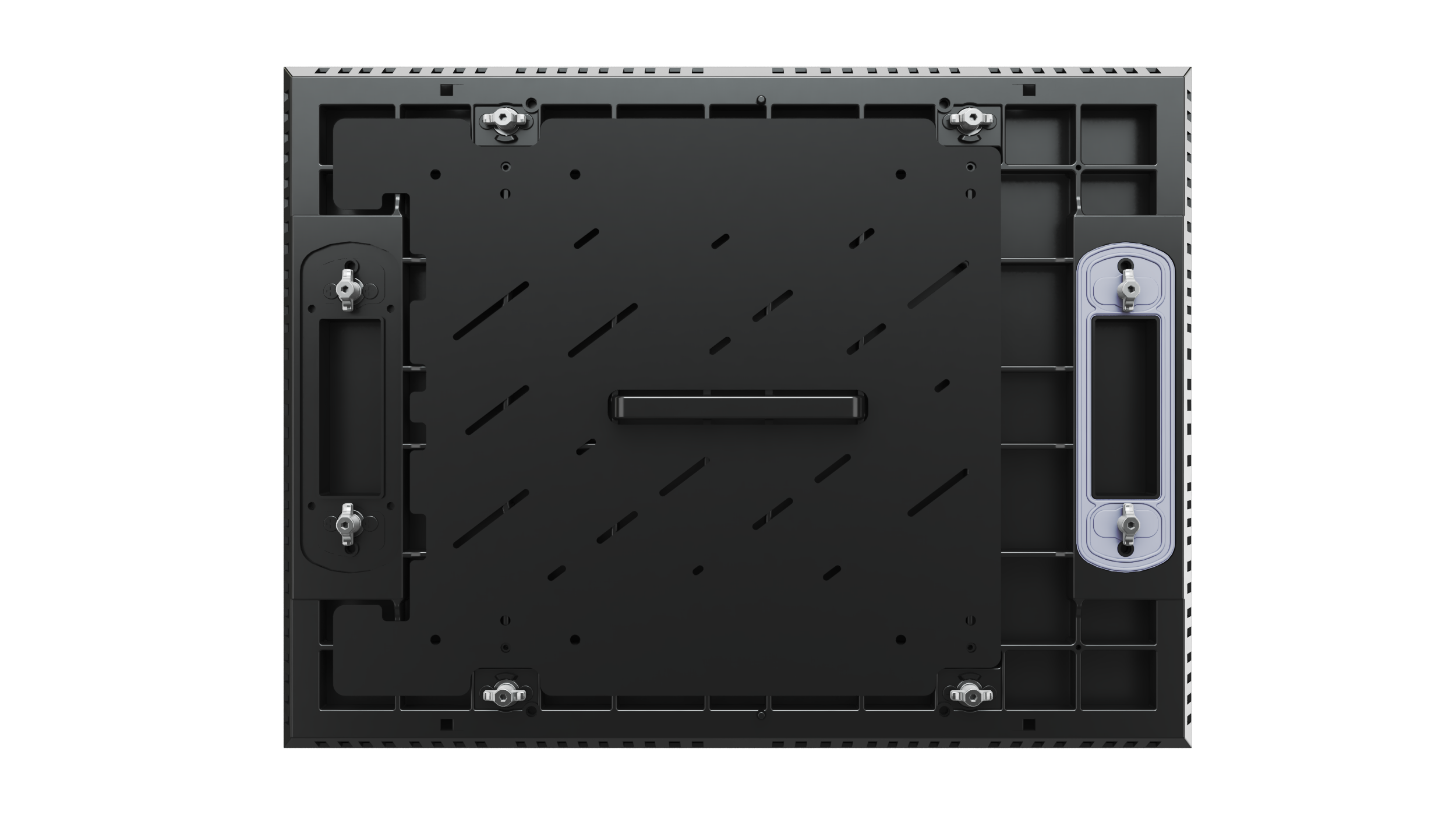

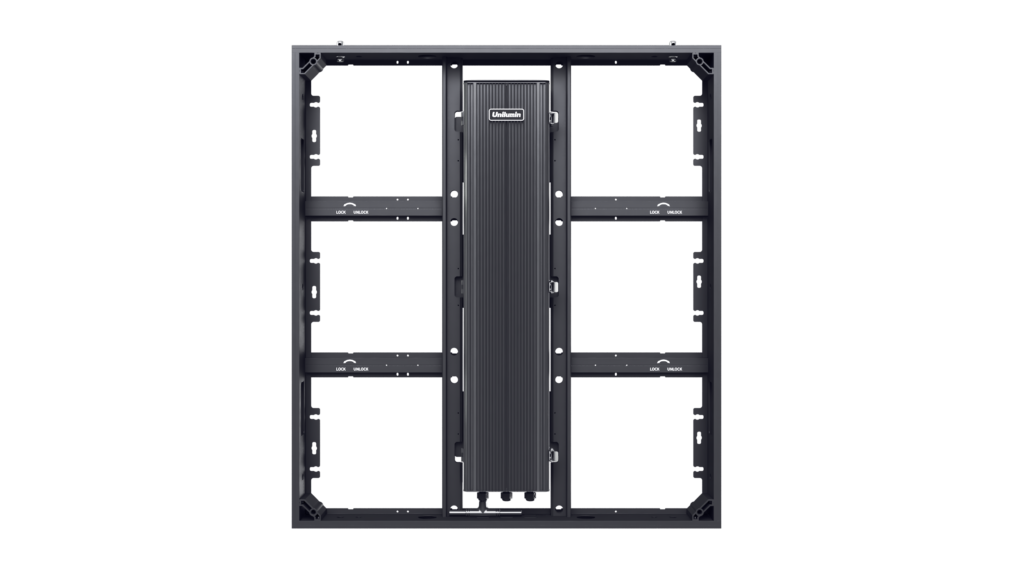

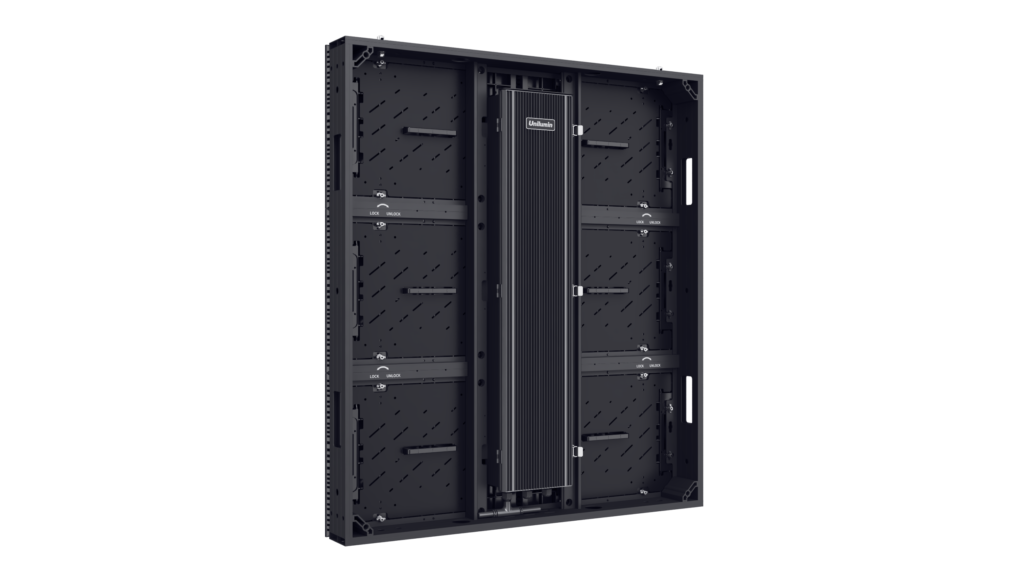

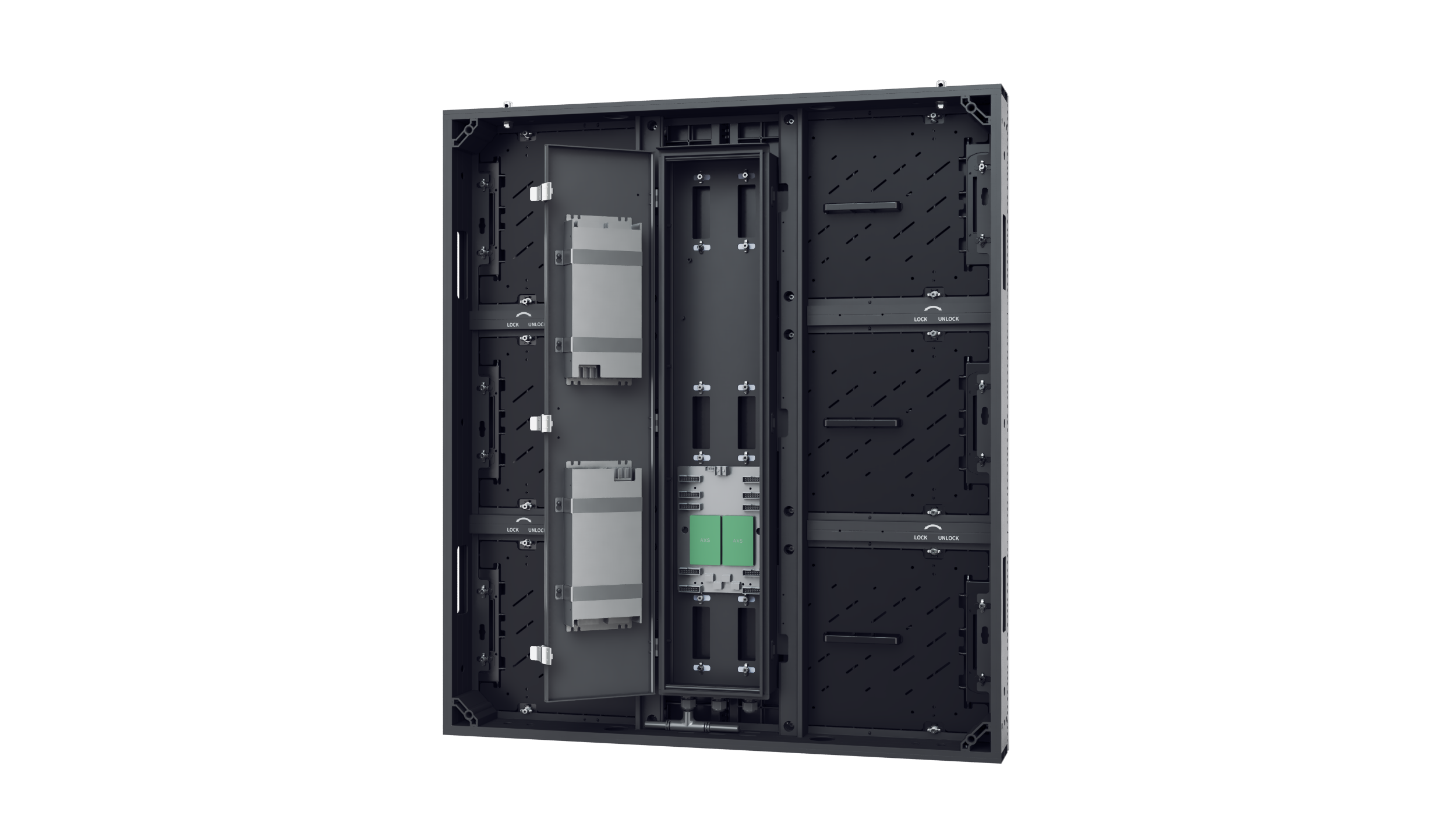

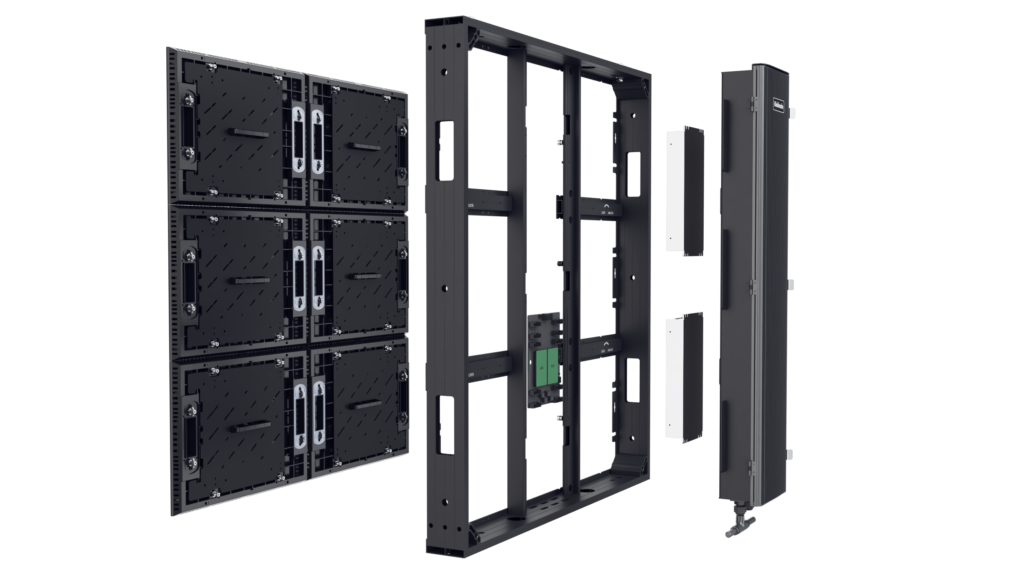

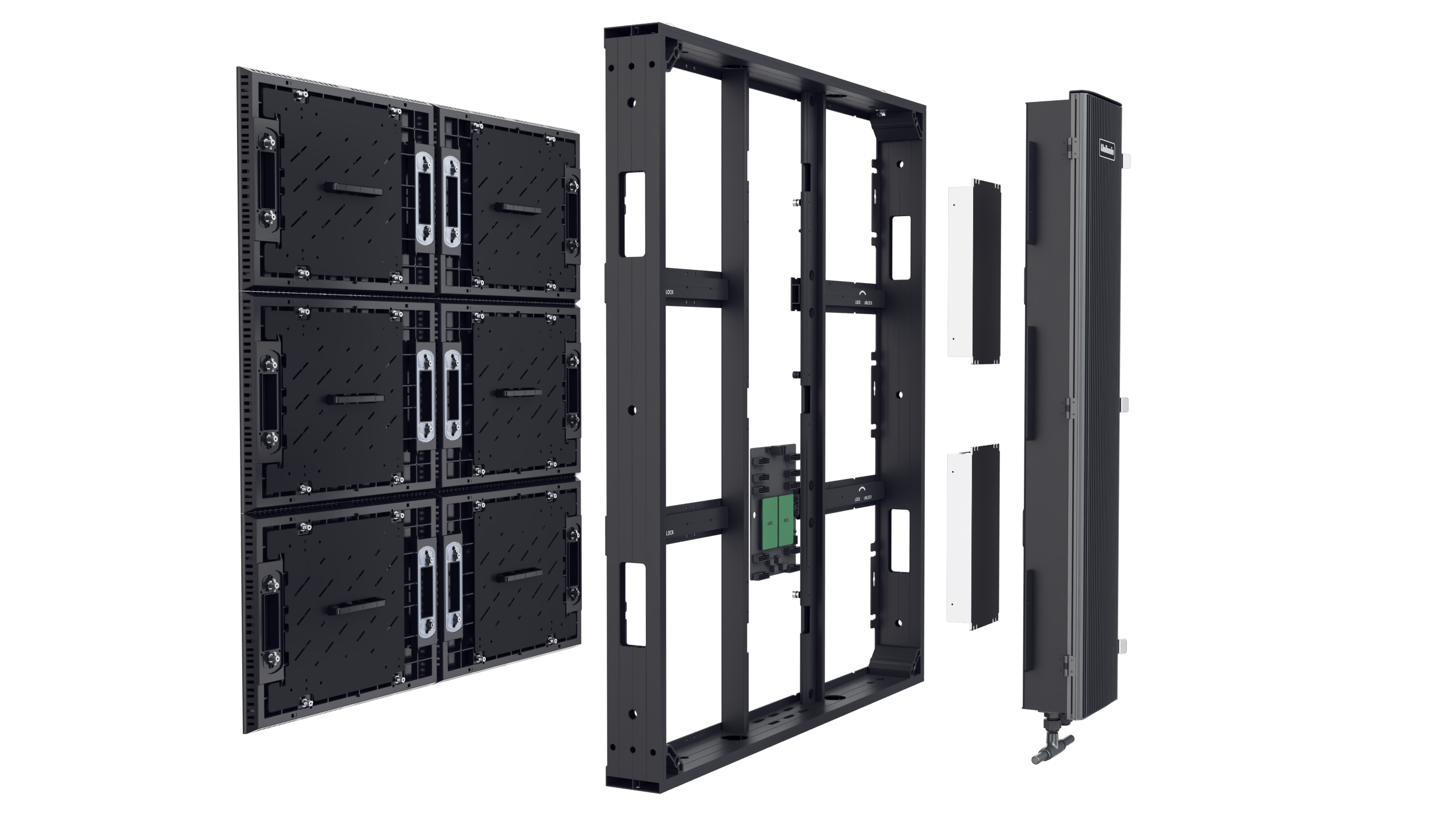

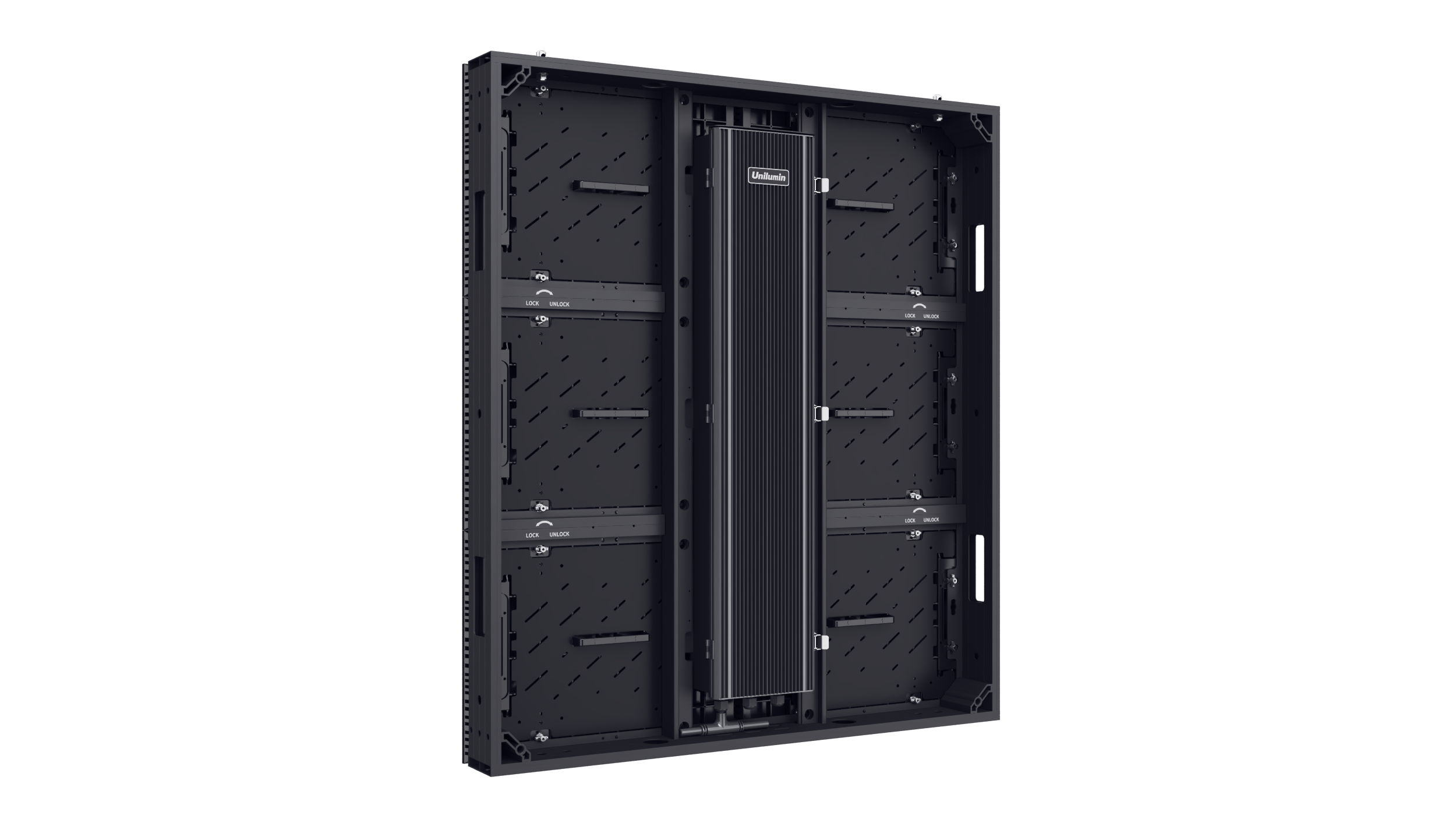

Front and rear service, fanless operation, cut cabinet – the USK series simplifies installation and service and also offers creative outdoor solutions.
IP65 protection class
Waterproof module according to IP65 that can withstand even extreme weather.
Low-emission product
Our products have a positive CO2 footprint certification according to “DIN EN ISO 14064 – Product Carbon Footprint” from TÜV SÜD.
Specifications
| Usurface Ⅲ Pro 6.67 | Usurface Ⅲ Pro 8.33 | Usurface Ⅲ Pro 10 | |
|---|---|---|---|
| Pixel Pitch | 6.67mm | 8.33 mm | 10mm |

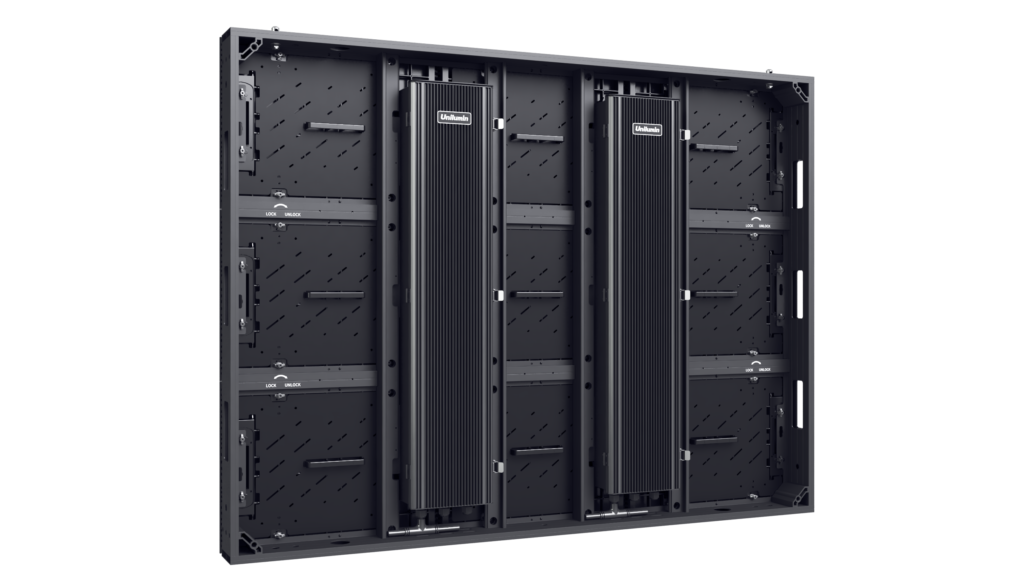

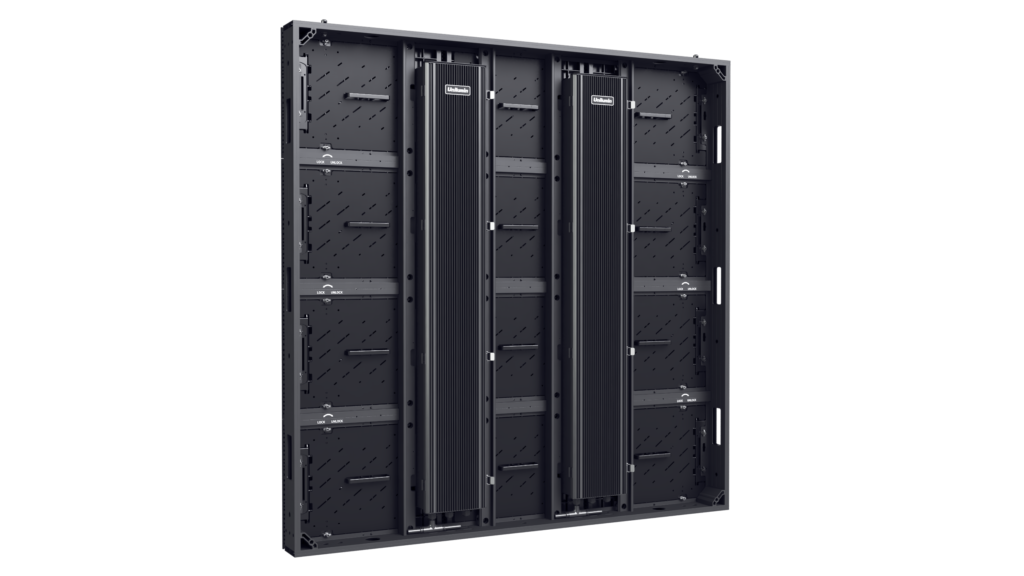

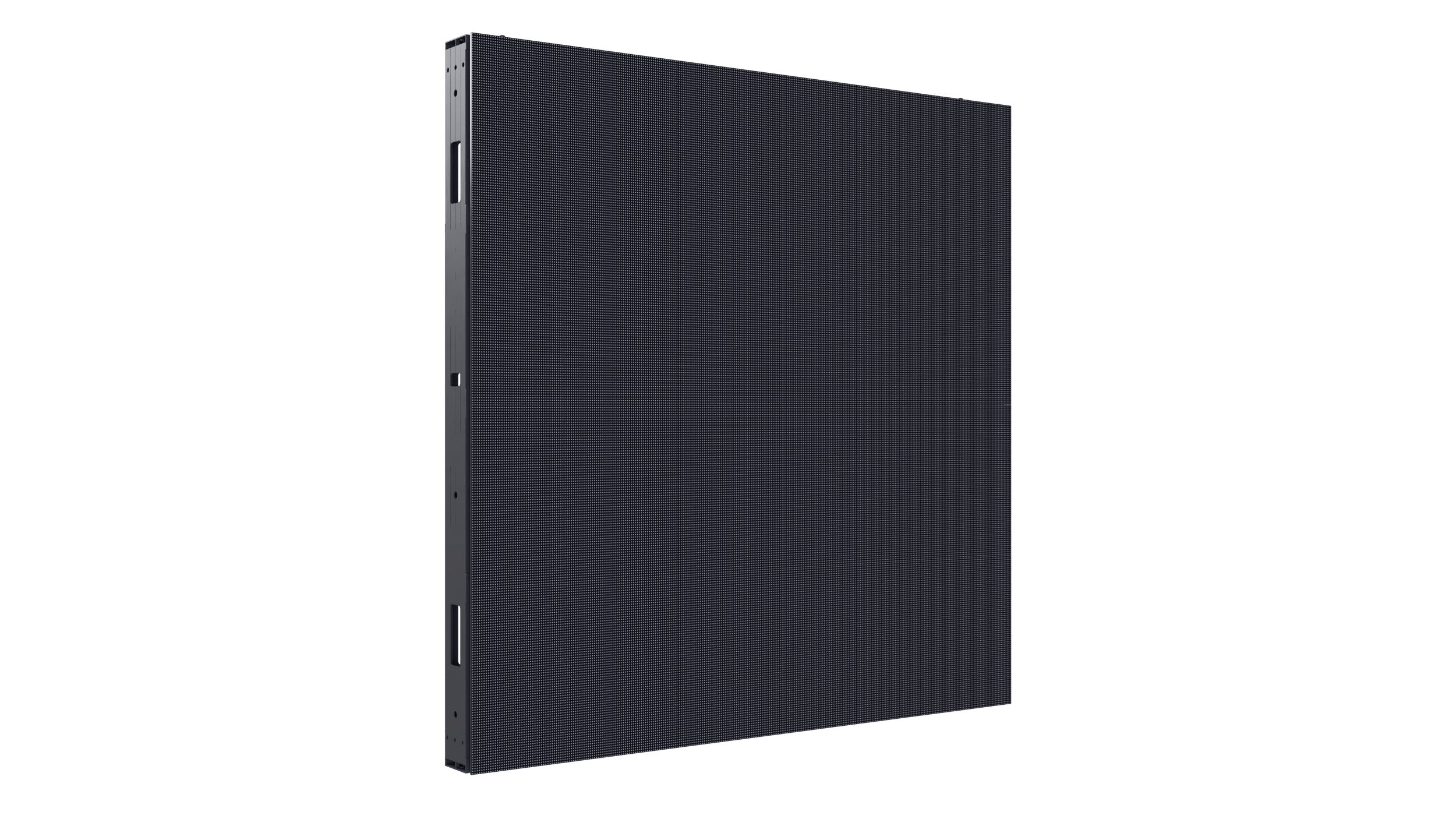

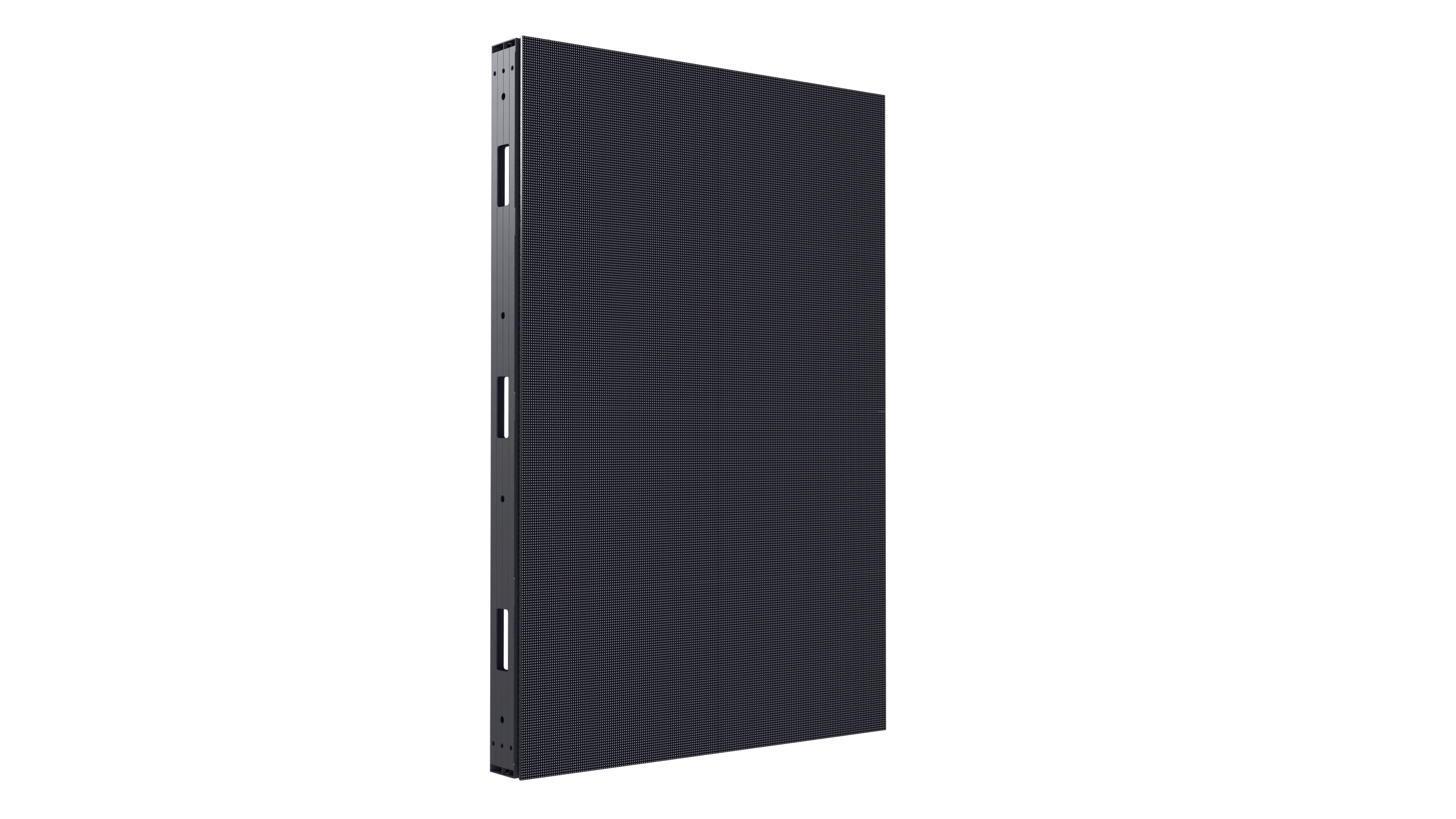

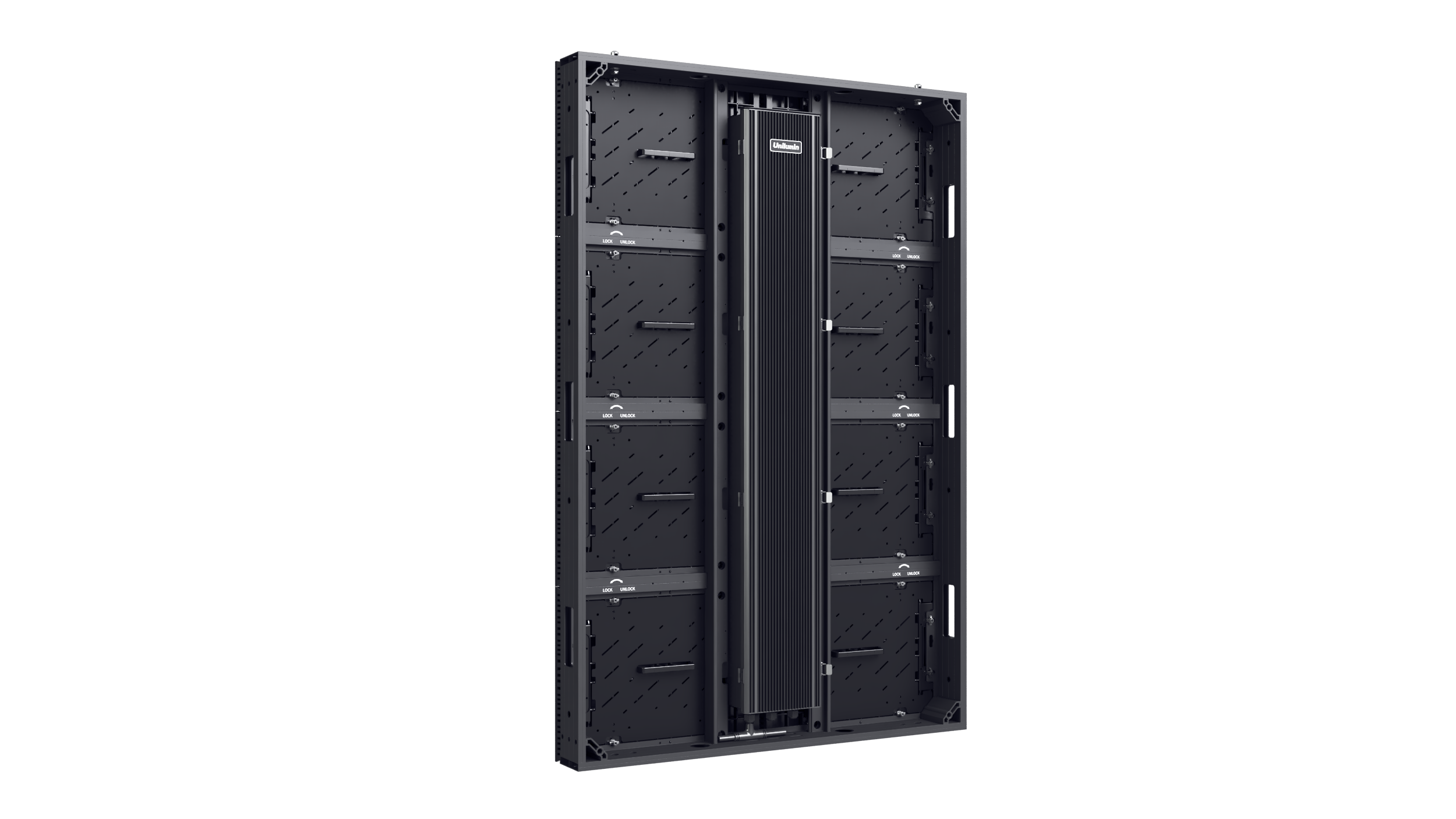

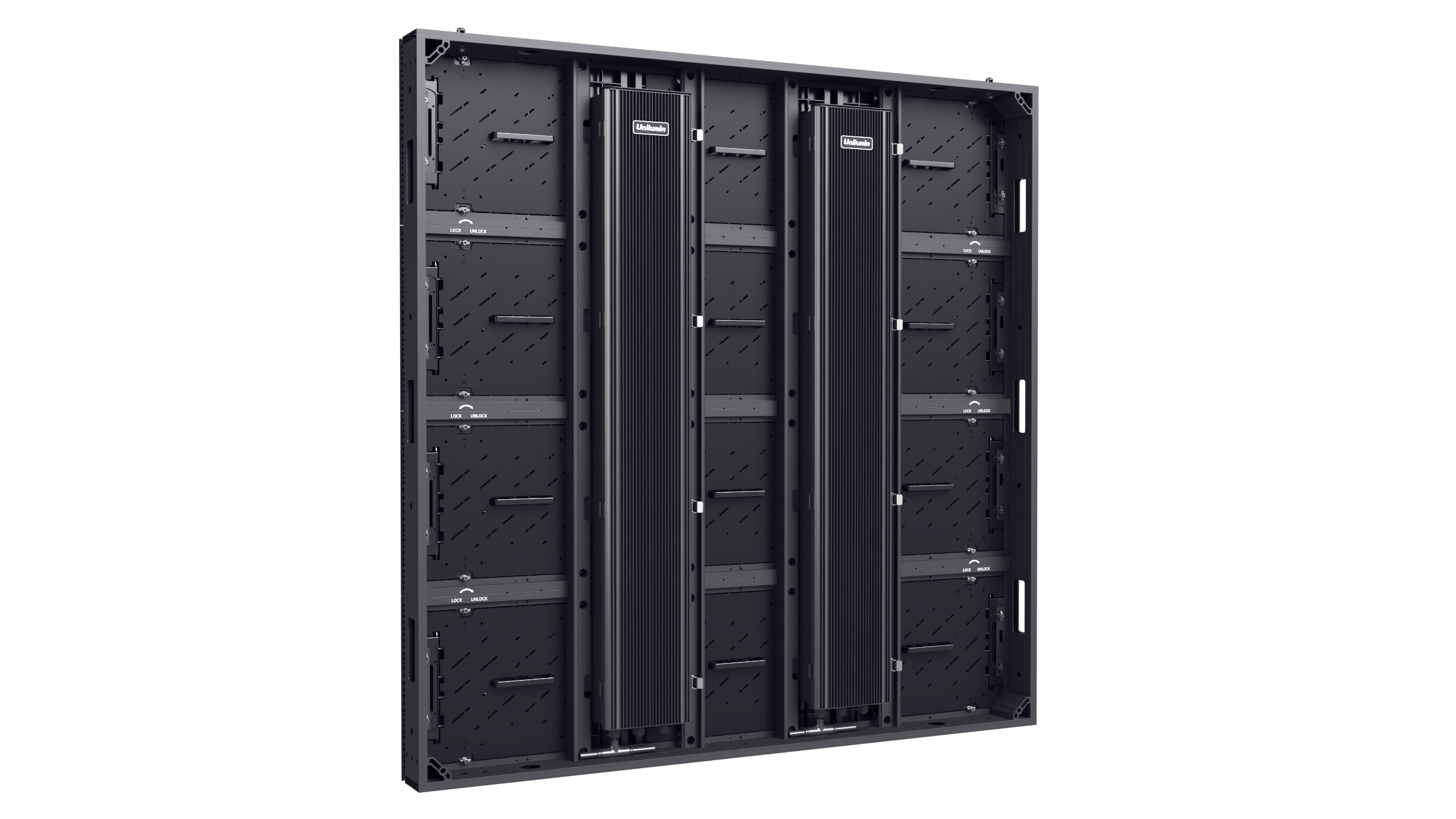

| Dimensions | 800x900/800x1,200/1,200x900/1,200x1,200x97mm | 800x900/800x1,200/1,200x900/1,200x1,200x97mm | 800x900/800x1,200/1,200x900/1,200x1,200x97mm |
| Brightness | 7,500/10,000 nits | 7,500/10,000 nits | 7,500/10,000 nits |
| Aspect ratio | Depend on cabinet | Depend on cabinet | Depend on cabinet |
| Contrast | 7,000:1 /10,000:1 | 10,000:1 /14,000:1 | 12,000:1 /16,000:1 |
| LED type | SMD | SMD | SMD |
| Refresh rate | 7,680Hz | 7,680Hz | 7,680Hz |
| Service access | Front & Rear | Front & Rear | Front & Rear |
| Video frame rate | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Protection class | IP69K | IP69K | IP69K |
| Resolution | 120x135/120x180/180x135/180x180 px | 96x108/96x144/144x108/144x144 px | 80x90/80x120/120x90/120x120 px |
| Viewing angle horizontal | 160° | 160° | 160° |
| Viewing angle virticle | 140° | 135° | 145° |
| Weight | 29/29/30/30kg/m2 | 29/29/30/30kg/m2 | 29/29/30/30kg/m2 |
