USK

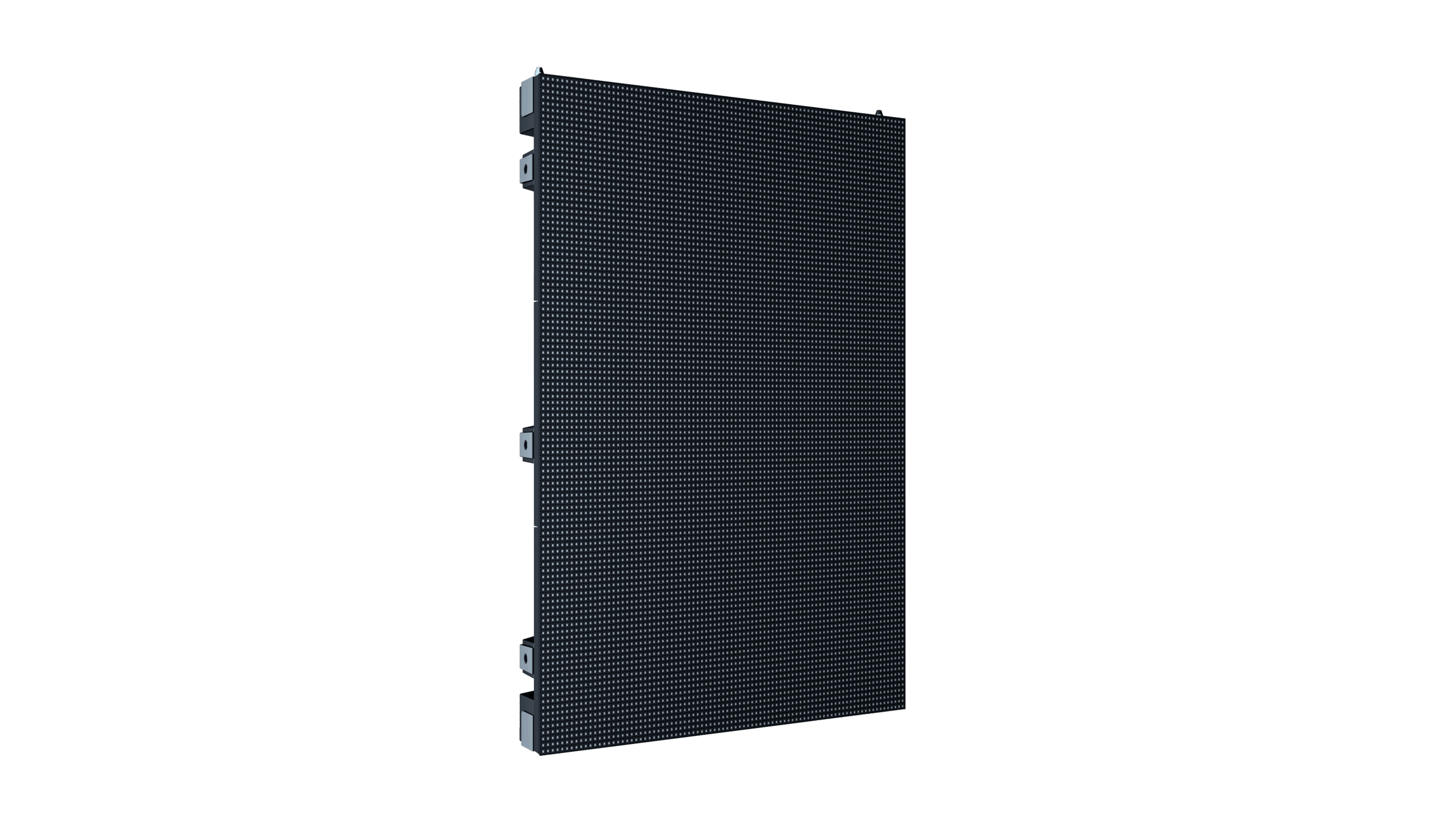

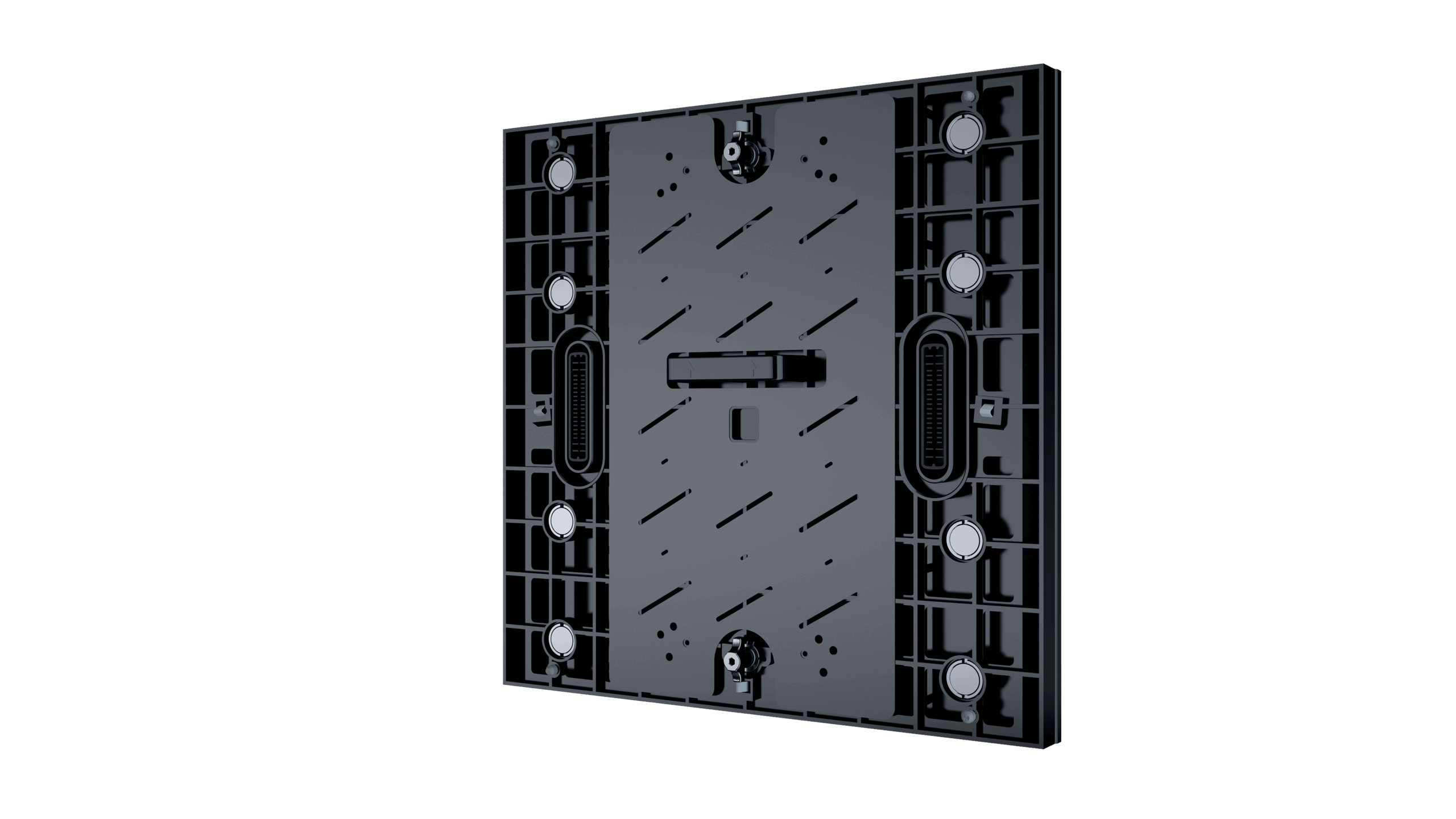

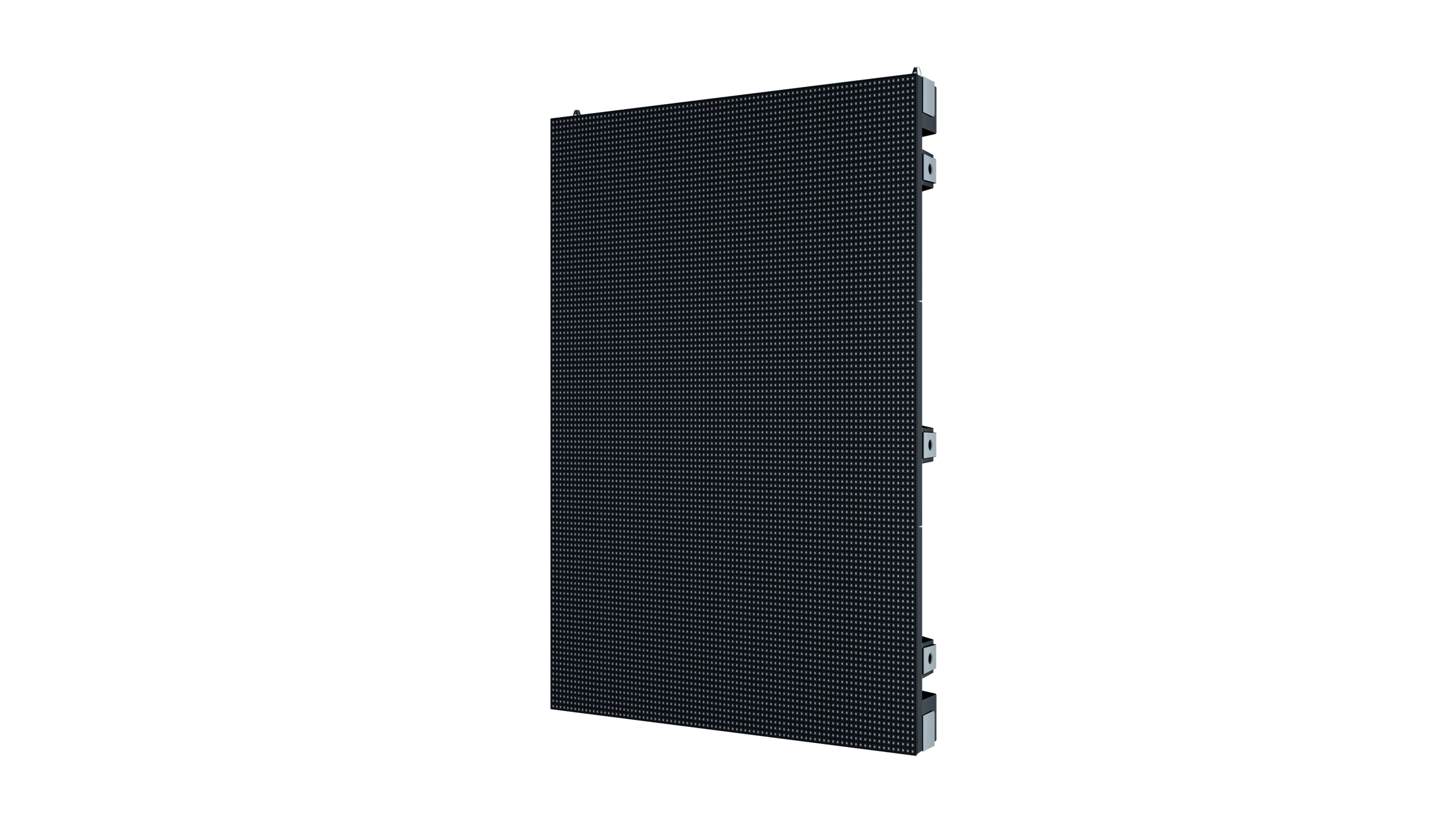

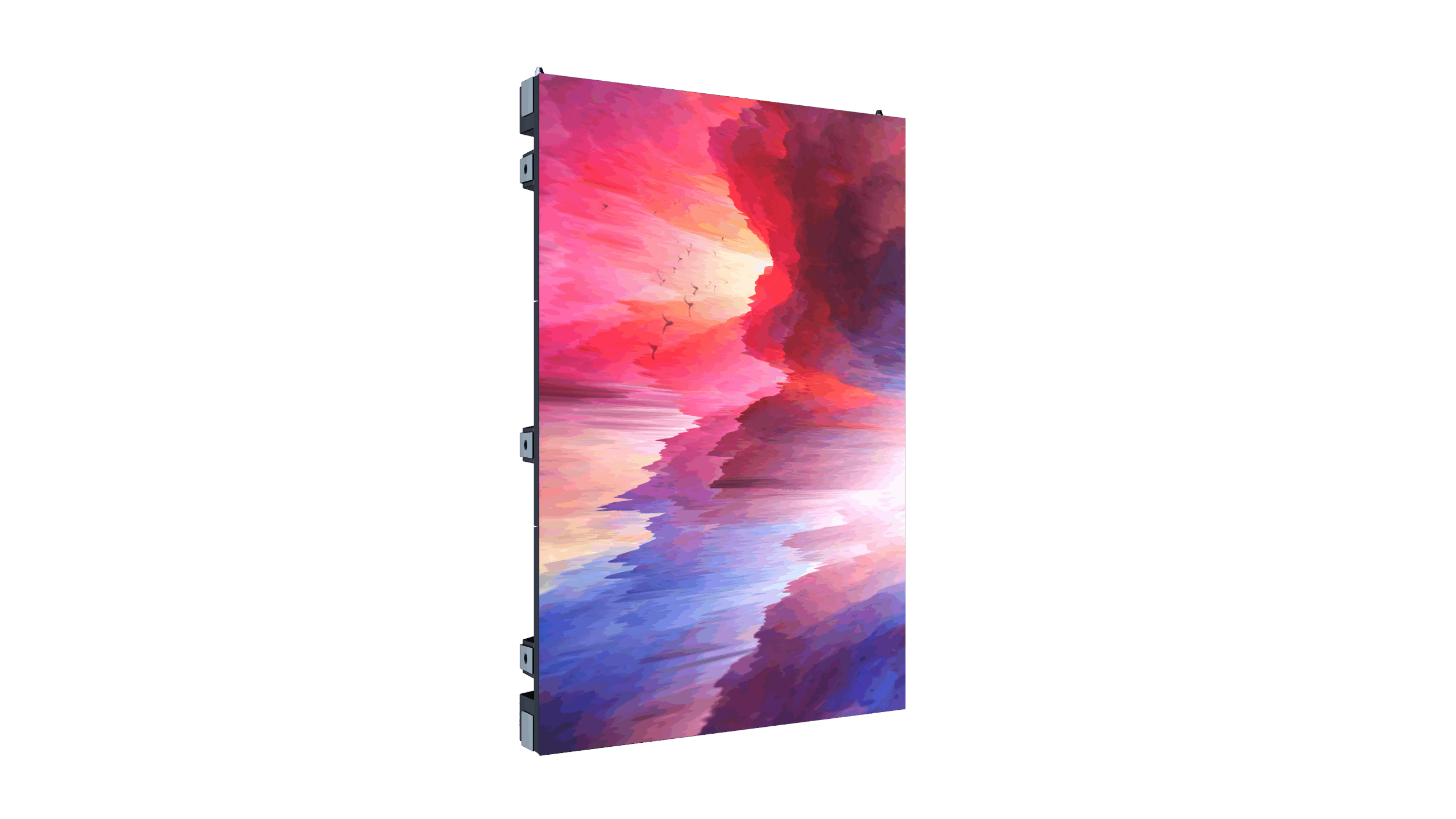

The USK series is an outdoor SMD module with a fine pixel pitch, which is characterized by excellent image quality and high resistance to various weather conditions.

Pixel Pitch:
2,6 mm – 2,9 mm – 3,9 mm – 4,8 mm – 5,9 mm

pictures
features
Speacification
Downloads

    • High brightness

    With our USK series, we achieve a contrast ratio of up to 6,000:1, depending on the brightness (up to 6,000 nits).

    High refresh rate

    The USK series achieves a refresh rate of 7,680 Hz.

    Energy-saving

    Thanks to the latest DVPS energy-saving technology, our USK modules consume 40% less energy.

    Easy handling

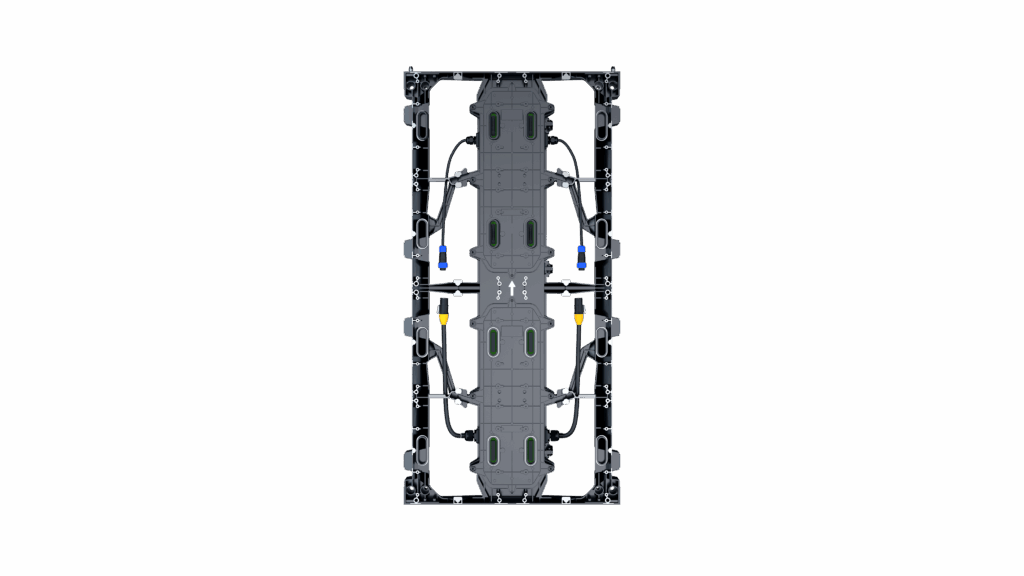

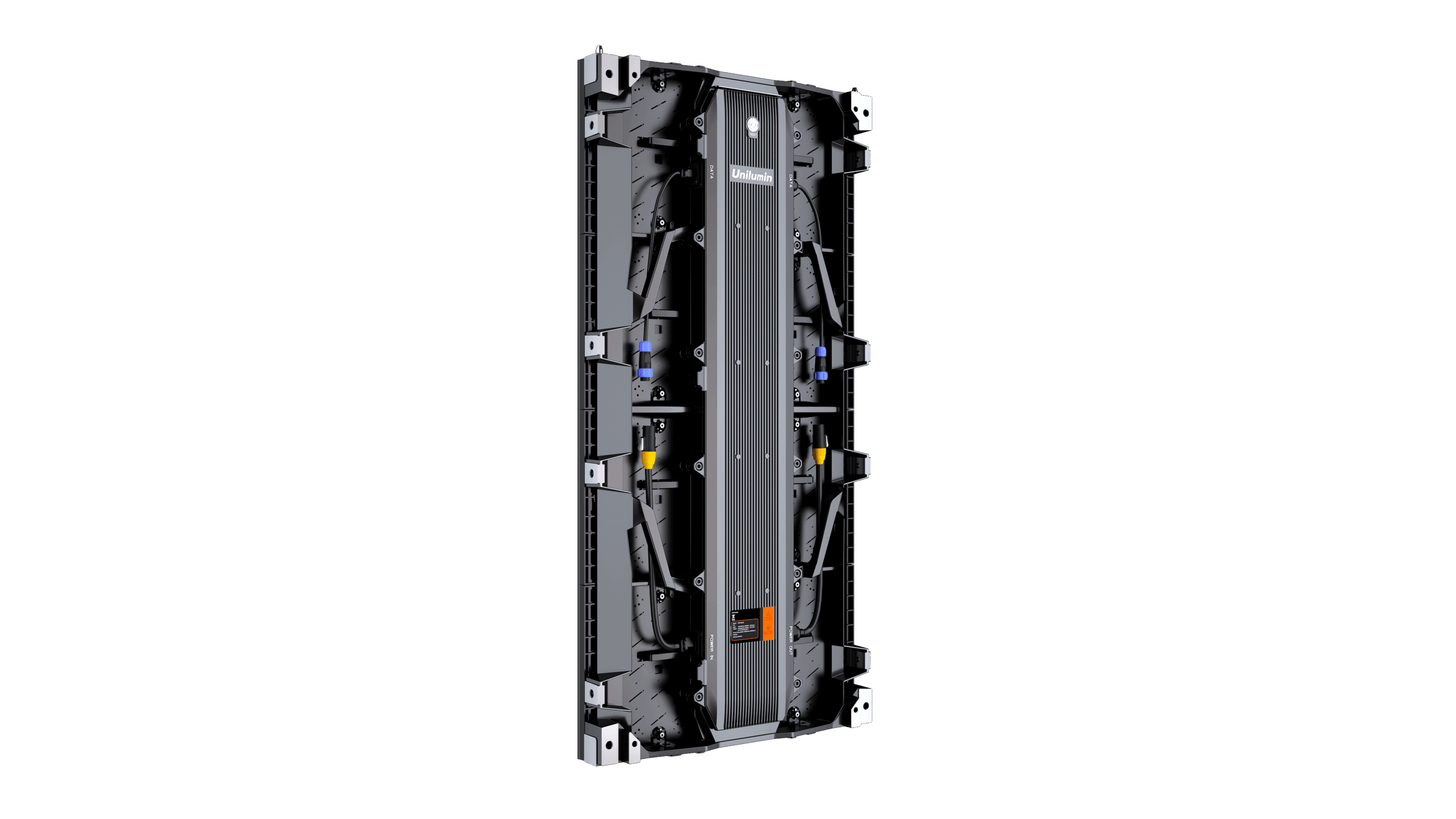

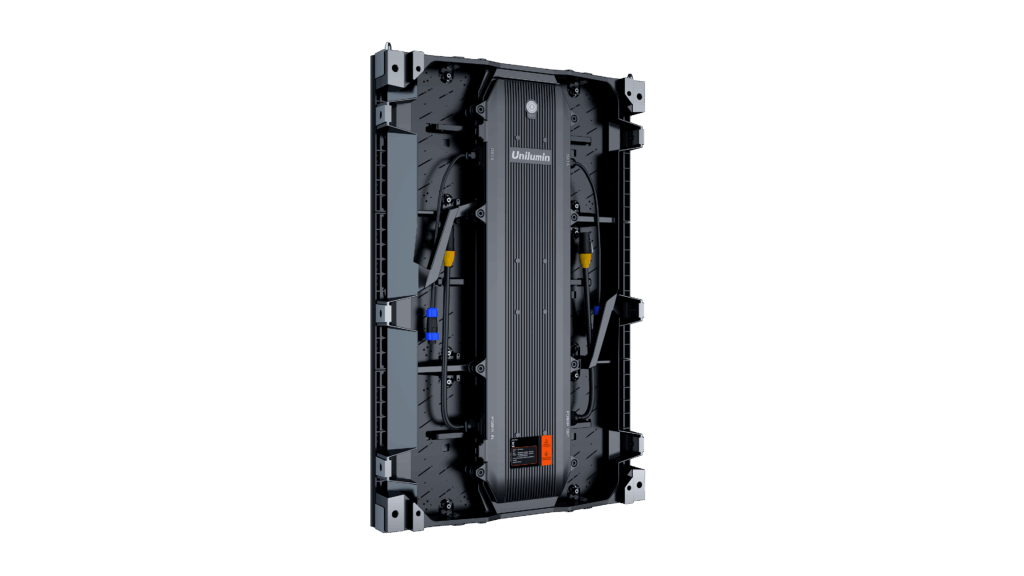

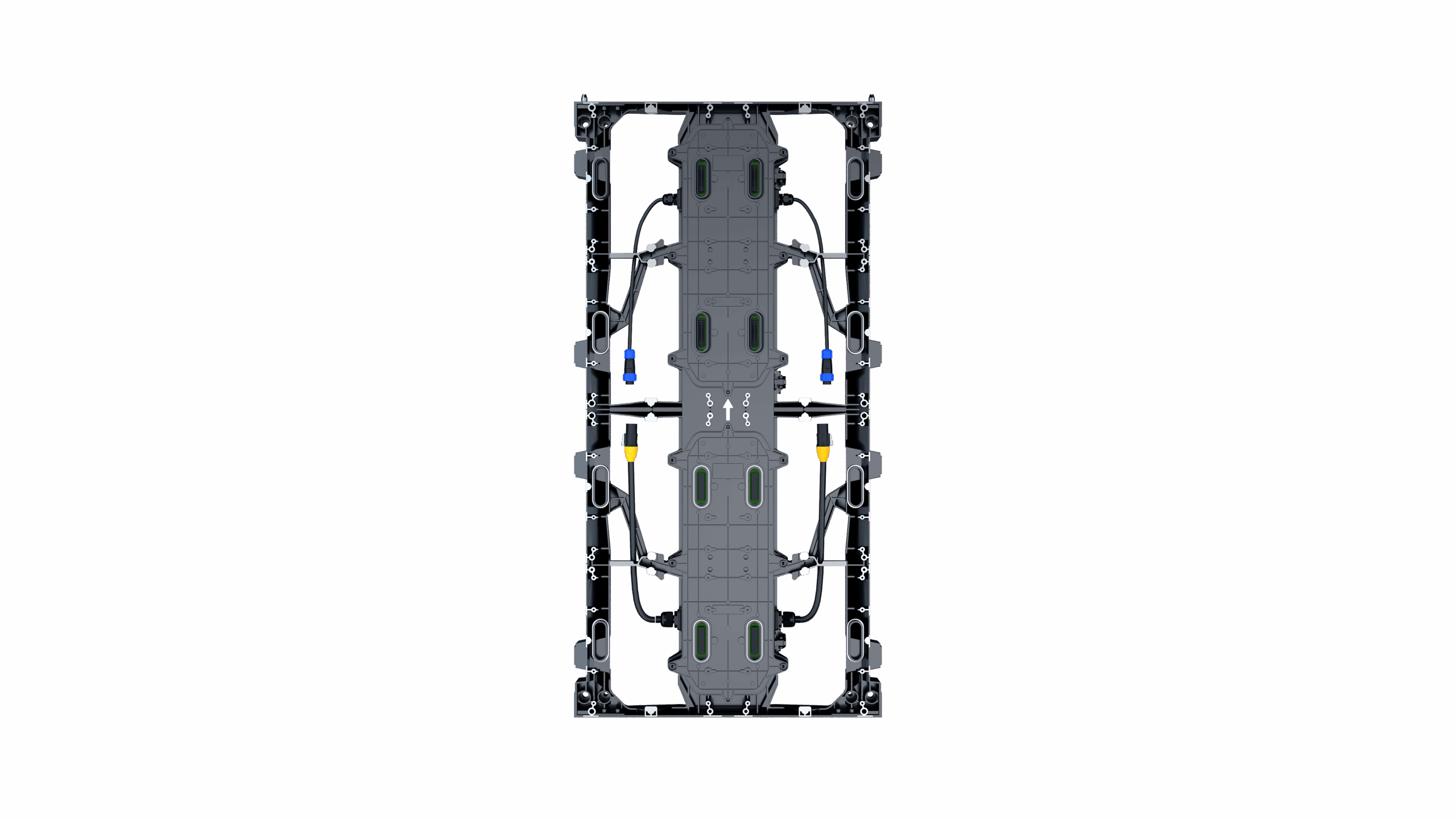

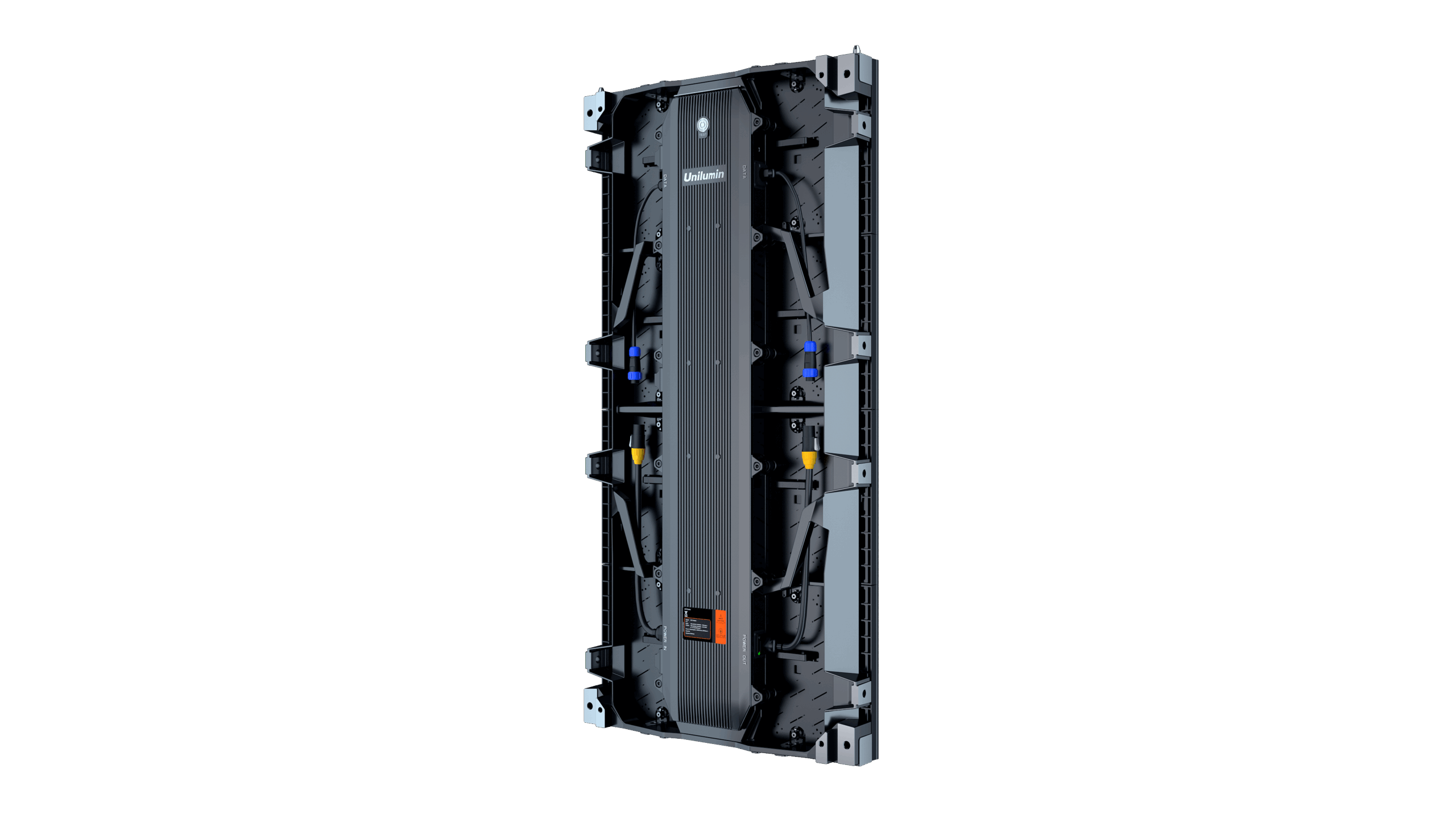

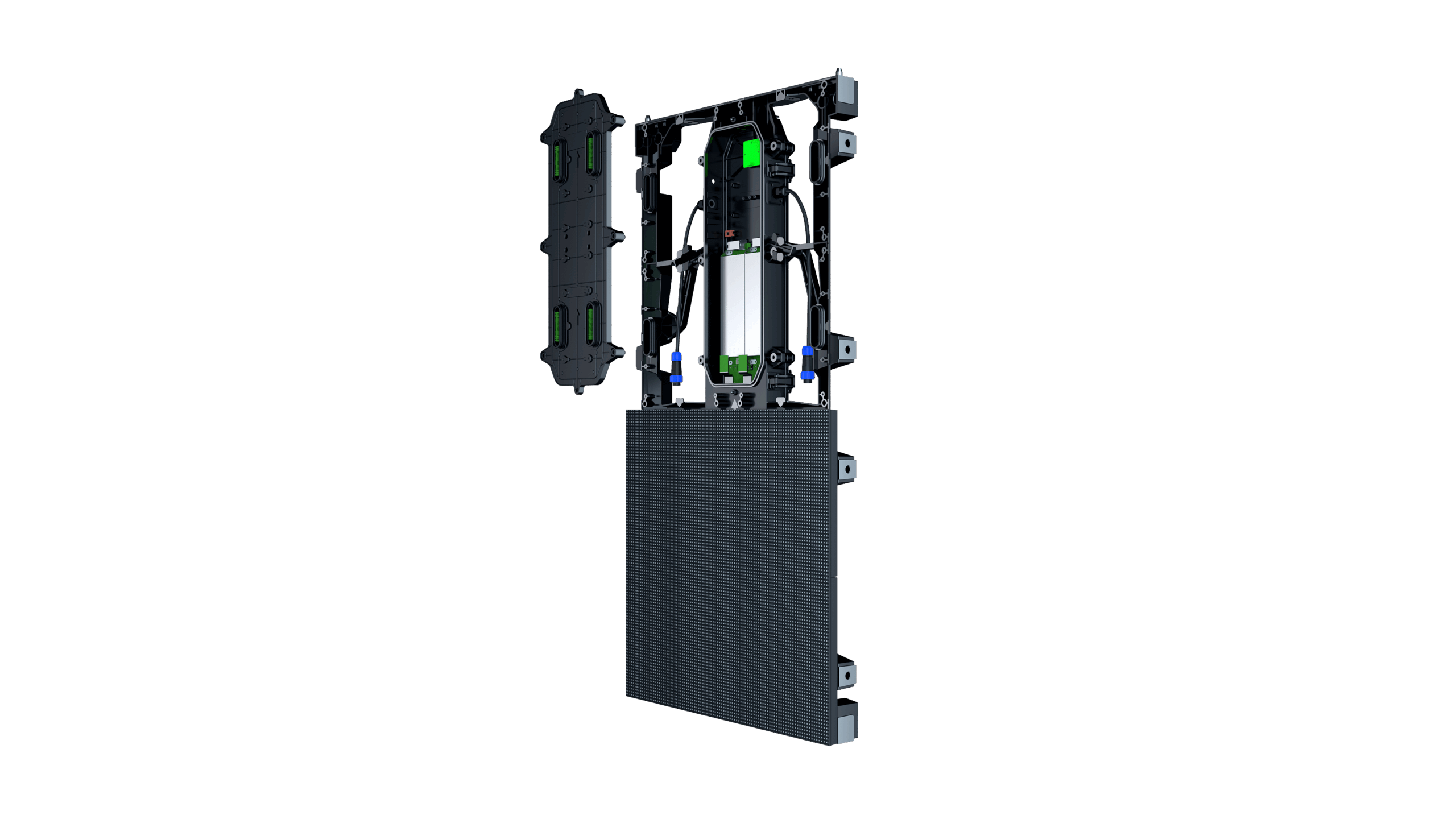

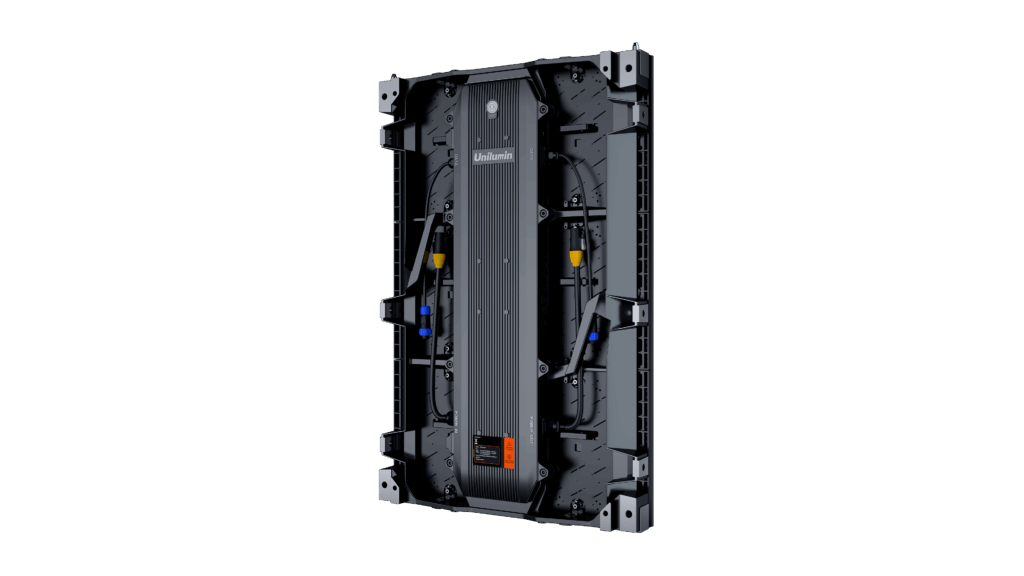

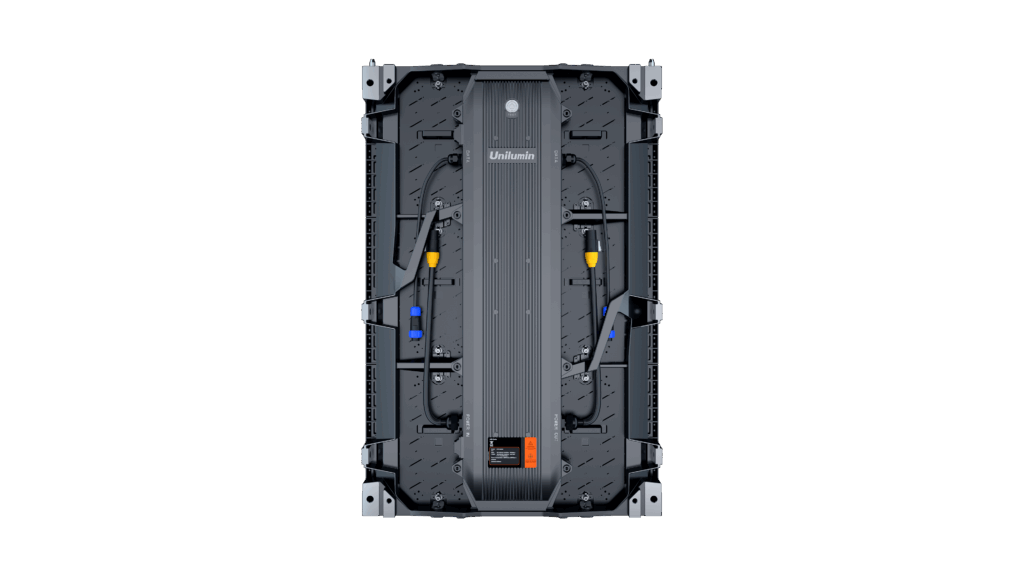

    Front and rear service, fanless operation, cut cabinet – the USK series simplifies installation and service and also offers creative outdoor solutions.

    IP66 protection class

    Waterproof module according to IP66 that can withstand even extreme weather.

    Low-emission product

    Our products have a positive CO2 footprint certification according to “DIN EN ISO 14064 – Product Carbon Footprint” from TÜV SÜD.

    Specifications

    USK 2.6USK 2.9USK 3.9USK 4.8USK 5.9
    Pixel Pitch2.6mm2.9 mm3.9mm4.8 mm5.9 mm

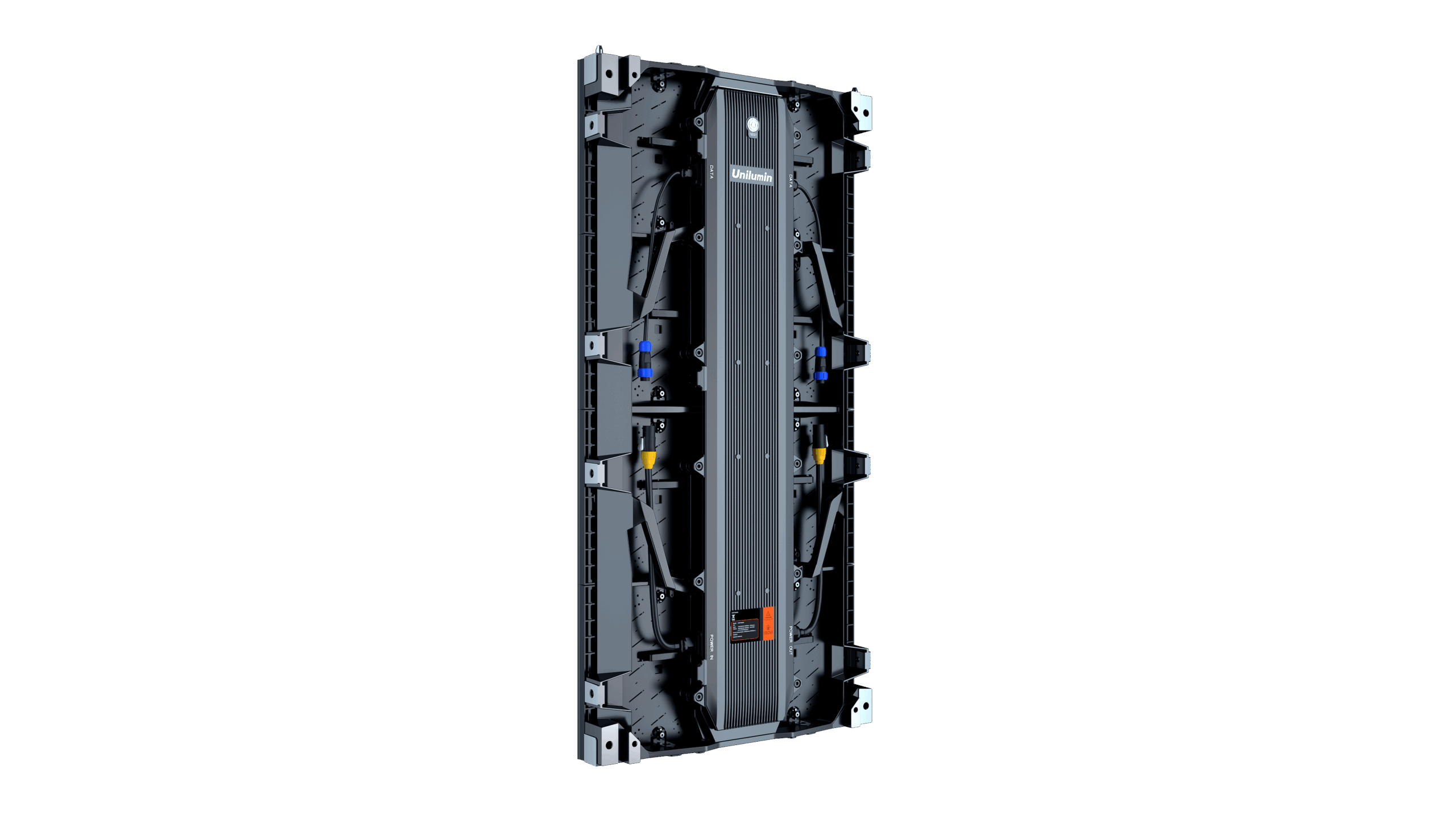

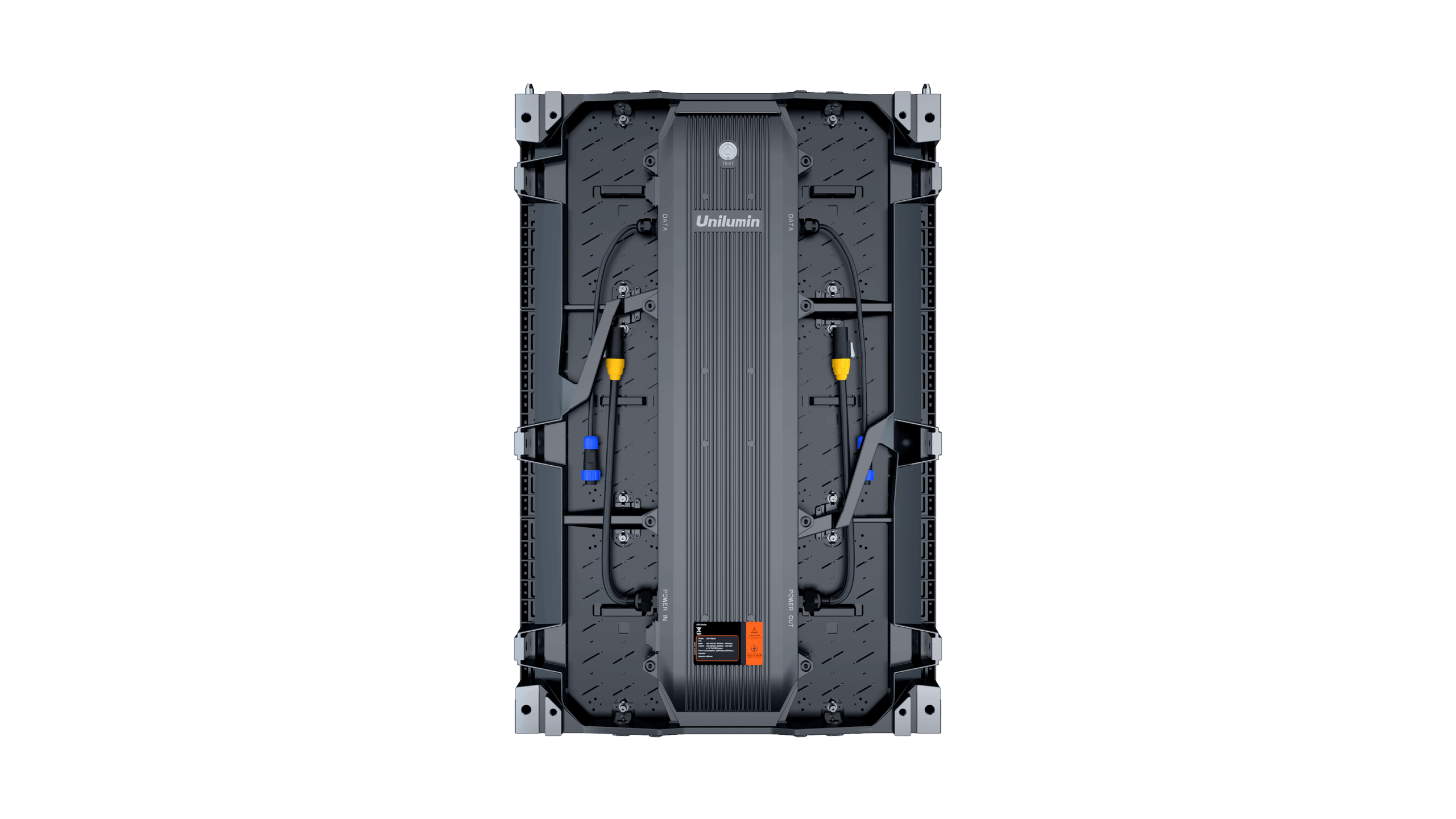

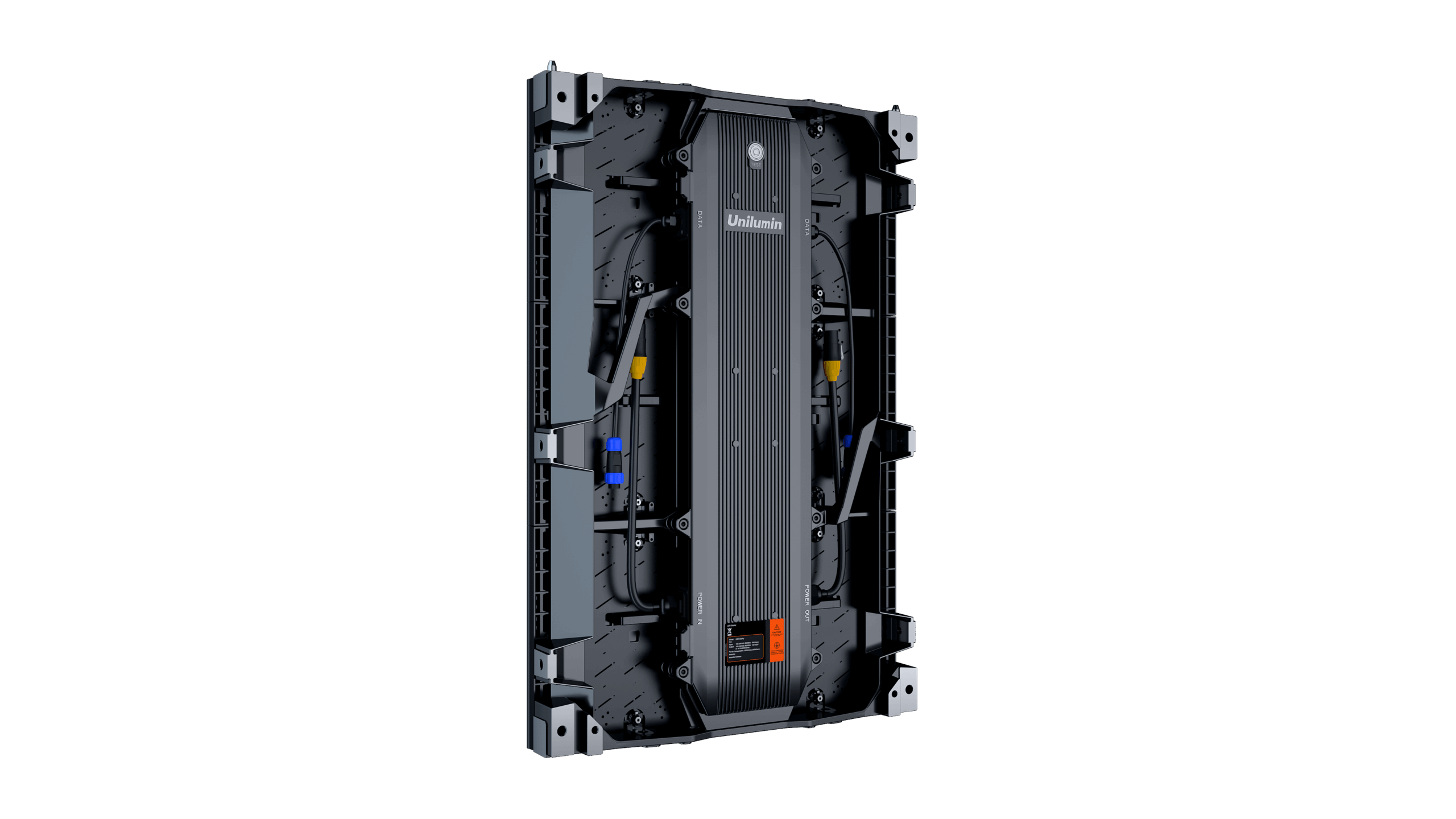

    Dimensions500x750/500x1,000x83mm500x750/500x1,000x83mm500x750/500x1,000x83mm500x750/500x1,000x83mm500x750/500x1,000x83mm
    Brightness5,000/6000 nits5,000/6,000 nits5,500/6,000 nits5,500/6,000 nits5,500/6,000 nits
    Aspect ratioDepend on cabinetDepend on cabinetDepend on cabinetDepend on cabinetDepend on cabinet
    Contrast3,500:1 /4,000:13,500:1 /4,000:14,000:1 /5,000:15,000:1 /6,000:15,000:1 /6,000:1
    LED typeSMDSMDSMDSMDSMD
    Refresh rate3,840Hz3,840Hz3,840Hz3,840Hz3,840Hz
    Service accessFront & RearFront & RearFront & RearFront & RearFront & Rear
    Video frame rate50/60 Hz50/60 Hz50/60 Hz50/60 Hz50/60 Hz
    Protection classIP69KIP69KIP69KIP69KIP69K
    Resolution192x384/192x288 px168x366/168x252 px128x256/128x192 px104x208/104x156 px84x168/84x126 px
    Viewing angle horizontal160°160°160°160°160°
    Viewing angle virticle140°140°140°140°140°
    Weight38/36kg/m238/36kg/m238/36kg/m238/36kg/m238/36kg/m2

    Downloads

    USK 2.6 5000nits Specifications V1.5 2025.4.30Download
    USK 2.6 6000nits Specifications V1.5 2025.4.30Download
    USK 2.9 5000nits Specifications V1.5 2025.4.30Download
    USK 2.9 6000nits Specifications V1.5 2025.4.30Download
    USK 3.9 5500nits Specifications V1.5 2025.4.30Download
    USK 3.9 6000nits Specifications V1.5 2025.4.30Download
    USK 4.8 5500nits Specifications V1.5 2025.4.30Download
    USK 4.8 6000nits Specifications V1.5 2025.4.30Download
    USK 5.9 5500nits Specifications V1.5 2025.4.30Download
    USK 5.9 6000nits Specifications V1.5 2025.4.30Download
